3.0
INSTALLATION AND OPERATION INSTRUCTIONS
3.1
Wiring of Unit
The RCL-600A Remote Control Searchlight consists of Searchlight Unit and
Master Remote Control Panel. The user must supply the cable and/or wire to
power the unit. The source must be a fused 24 VDC, 10 Amp supply. This cable

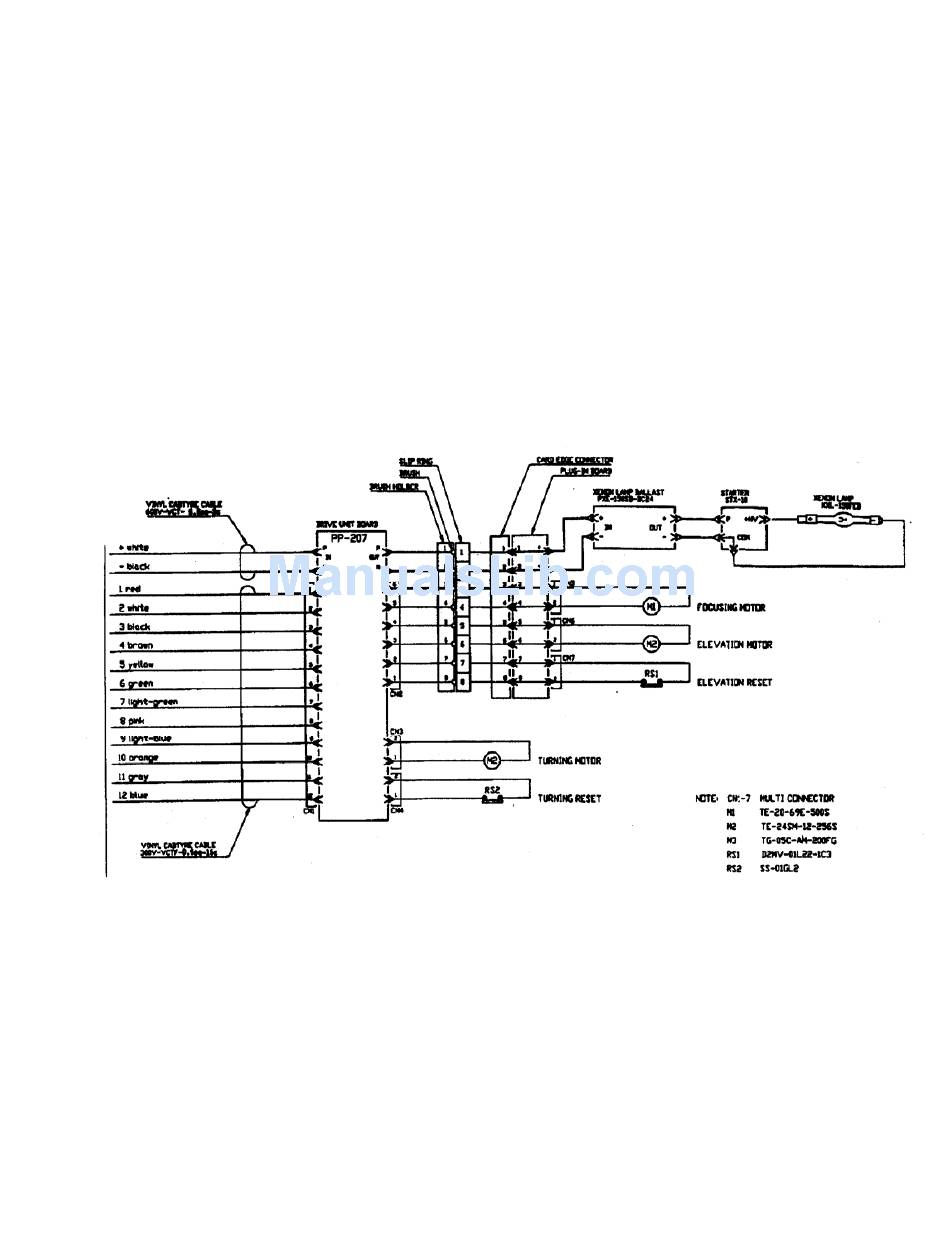

is to be attached to the Searchlight as shown in the connection diagram, Figure
1. Observe polarities when attaching wires!
FIGURE 1
3
Y1-03-0139 Rev. C
