3.7 Bulb Replacement (see Figure 7)
A 150W xenon short arc lamp is provided with your RCL-600A. If it should need
replacement, it must be ordered through ACR Electronics, Inc., by P/N A1-14-
0093.
To replace the lamps:
Warning: Do NOT touch glass or parabolic reflectors with fingers or tools! Use
cloth gloves.
1. Disconnect unit from power source and allow cooling.
2. Remove four screws holding front flange and glass with provided 6mm hex
wrench.
3. Loosen mounting collar of lamp by turning collar counter clockwise. Unhook
wire from opposite end of lamp. Pull lamp out of mounting collar. Installation
is done in reverse order.
4. Replace front flange and glass and install the four retaining screws. Be sure
gasket is securely in place.
5. Reconnect unit to power source.

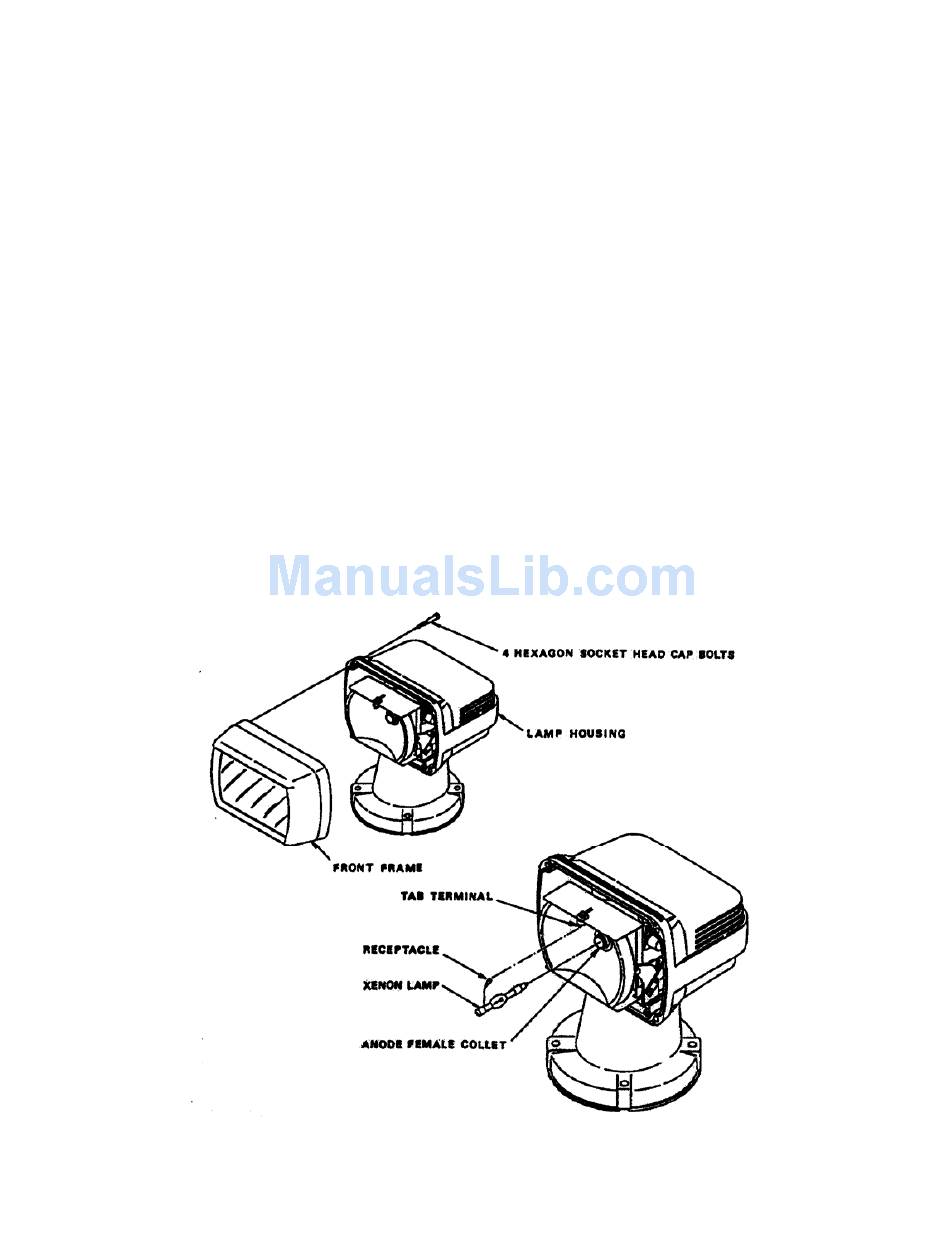

FIGURE 7
