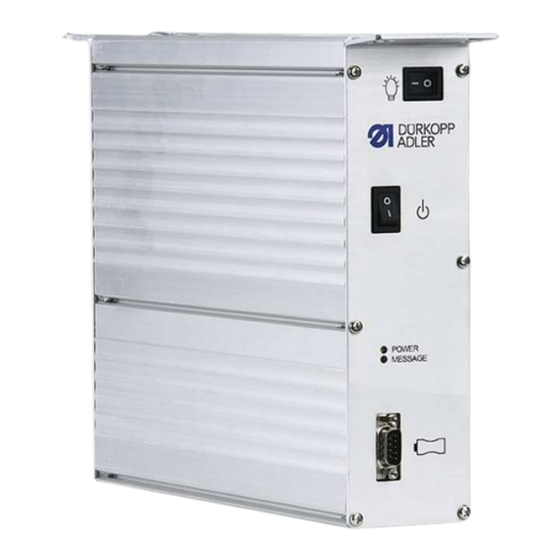

- Page 1 DAC basic/classic operating manual part II class 272 0791 272901 Dürkopp Adler AG, PO Box 17 03 51, D-33703 Bielefeld, Potsdamerstr. 190, D-33719 Bielefeld Phone +49 (0) 521 9 25 00, Fax +49 (0) 521 9 25 24 35, www.duerkopp-adler.com Ausgabe/Edition: December 2010 revision index: A010...
- Page 2 Bedienungsanleitung Teil II DAC basic/classic © 2010 Dürkopp Adler AG All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
-
Page 3: Table Of Contents
Operating manual part II Contents PART II..........................4 Parameter .........................4 Parameter of class 272........................4 1.1.1 Operator-level ............................4 1.1.2 Technician-level...........................5 1.1.3 Developer-level..........................17 © 2010 Dürkopp Adler AG II-3... -
Page 4: Part Ii
Operating manual part II PART II Parameter The parameter overview is help a sought-after parameter for finding fast and changing. The construction of the list has already been explained in the list using structure. There are parameters, which can be found in the technicians' and developers' level both different consequences, however, have. -
Page 5: Technician-Level
Operating manual part II 1.1.2 Technician-level The technician's level is unlocked by the following key combination: When switching on the control unit and press the P button and the reset button at the same time. This allows access to the technician's level. Press A+ to get into the technician's level. - Page 6 Operating manual part II Preset Unity Description Reducing speed when shifting the feed dog 0 = off; 1 = on 2000 Wished speed reduction when shifting the feed dog. Type of the start backtack, if the backtacking is toggled. 0 = Simple start backtack; 1 = Double start backtack;...
- Page 7 Operating manual part II Preset Unity Description Mode of the thread clamp 0 = on switching angle FK = t0101, out switching angle FK = t0102, Without FL; 1 = on switching angle FK = 108° , out switching angle FK = 268° , Without FL;...
- Page 8 Operating manual part II Preset Unity Description Pedal position for starting the cutting process. 0 = Position -2; 1 = Position -1 ° on switching angle t 08 12 <= t 02 10 < t 02 11 ° off switching angle t 02 10 < t 02 11 <= t 08 13 Delay time for a repeated activation of the Cutting magnet.
- Page 9 Operating manual part II Preset Unity Description Seam ways Treatment position-2 in seam ways. 0 = Demolition of the seam. The next seam way is sewn; The seam is broken off with thread trimmer at the last seam of the program. 1 = Demolition of the seam with thread performances (even if inactive).
- Page 10 Operating manual part II Preset Unity Description Thread tension ° Mode of the thread tension release and thread tension reduction with active foot lifting. 0 = No thread tension release; 1 = Thread tension release in the seam; 2 = Thread tension release after thread trimming; 3 = Thread tension release in the seam and after thread trimming.
- Page 11 Operating manual part II Preset Unity Description Function module Function of module 1 (X2.30) 0 = No Function; 1 = Additional thread tension; 2 = Switch stitch length; 3 = Single stitch with stitch length switching; 4 = Single stitch backwards with stitch length switching; 5 = Lift/lower roller;...
- Page 12 Operating manual part II Preset Unity Description Turning Back Turning back 0 = No; 1 = Yes ° Moving angle of rotation Waiting time up to the turning back Needle cooling Mode of the needle cooling 0 = Normal needle cooling; 1 = Needle cooling depending on speed 9,999 2,500...
- Page 13 Operating manual part II Preset Unity Description Hardware-Test Bold Inputs or Outputs are only available at DACclassic controls. 1.Analog Um: Supply Voltage in V U24: Supply Voltage for Outputs in V Imo: Current of the 24V supply PAn: Analog value of the pedal Nre: X1.4 Analog Input Ian: X1.1 Analog Input 2.Inputs...
- Page 14 Operating manual part II Preset Unity Description Function of the bartack input (machine connector Pin 5) 0 = no function; 1 = on threading help; 2 = Bartack suppression/recall; 3 = Manual bartack; 4 = Half stitch; 5 = Full stitch; 6 = Direction finder position;...
- Page 15 Operating manual part II Preset Unity Description Function of the input FF1 (machine connector Pin 8) 0 = no function; 1 = on threading help; 2 = Bartack suppression/recall; 3 = Manual bartack; 4 = Half stitch; 5 = Full stitch; 6 = Direction finder position;...
- Page 16 Operating manual part II Preset Unity Description Function of the input “F 0 = no function; 1 = on threading help; 2 = Bartack suppression/recall; 3 = Manual bartack; 4 = Half stitch; 5 = Full stitch; 6 = Direction finder position; 7 = Turning back 8 = Input function module 1;...
-
Page 17: Developer-Level
Operating manual part II 1.1.3 Developer-level Preset Unity Description Bartack ° Mechanical switching angle of th e bartack Thread trimmer The FA speed shall angle be reached before switching on the magnets. Seam ways 9999 1500 Speed limitation for seam ways Stitches Stitches for the speed limitation by seam ways Motor... - Page 18 Operating manual part II Preset Unity Description Emergency shutdown of the motor or motor places 0 = Emergency shutdown; 1 = Direct positioning Miscellaneous of the control Period for raising off Umag on 33V Period for the DeEnergizer process 16,00 0,12 Adjust the PWM frequency 999,9...
