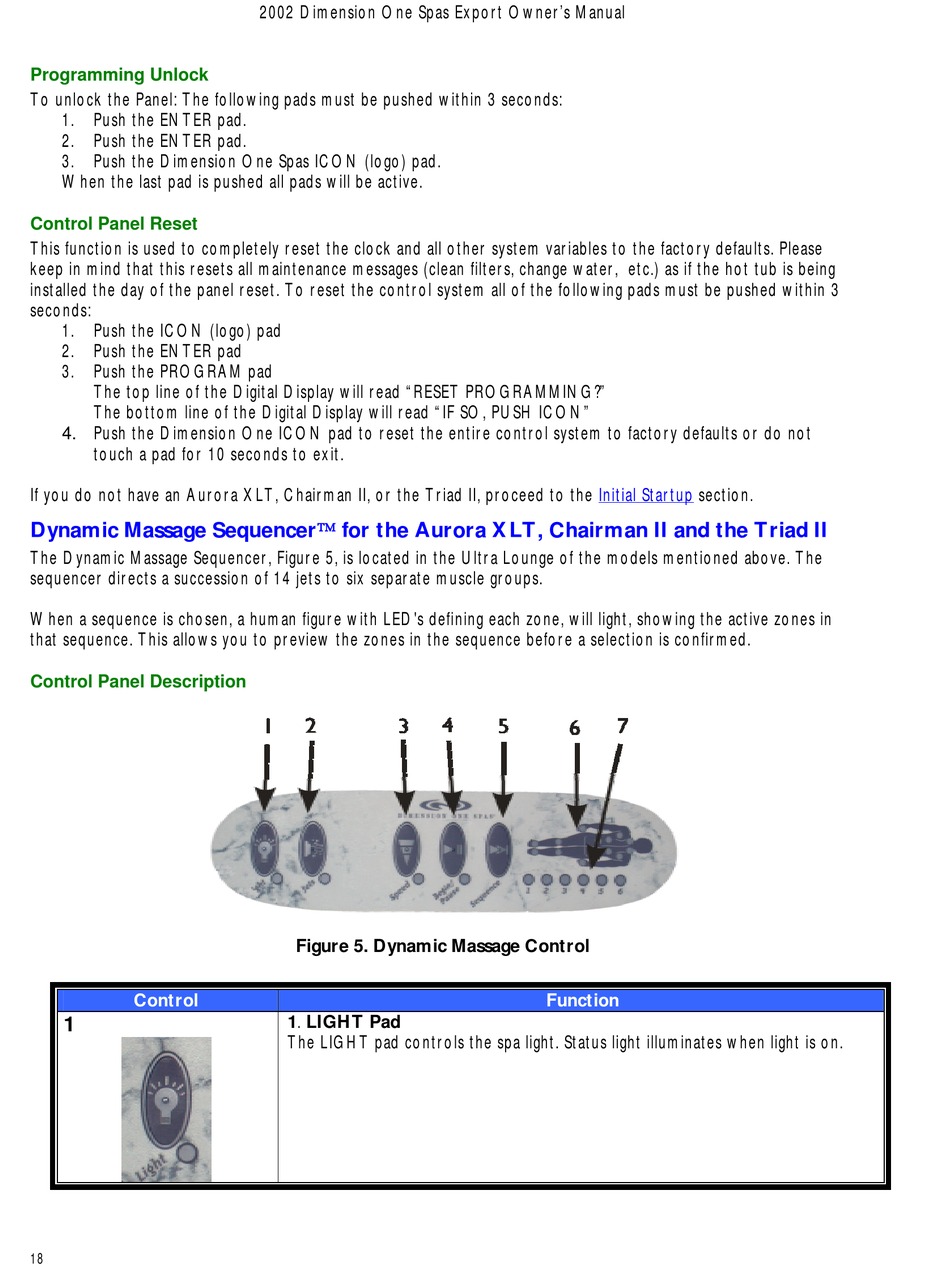

Programming Unlock
To unlock the Panel: The following pads must be pushed within 3 seconds:
1.
Push the ENTER pad.
2.
Push the ENTER pad.
3.
Push the Dimension One Spas ICON (logo) pad.
When the last pad is pushed all pads will be active.
Control Panel Reset
This function is used to completely reset the clock and all other system variables to the factory defaults. Please
keep in mind that this resets all maintenance messages (clean filters, change water, etc.) as if the hot tub is being
installed the day of the panel reset. To reset the control system all of the following pads must be pushed within 3
seconds:
1.
Push the ICON (logo) pad
2.
Push the ENTER pad
3.
Push the PROGRAM pad
The top line of the Digital Display will read "RESET PROGRAMMING?"
The bottom line of the Digital Display will read "IF SO, PUSH ICON"
4. Push the Dimension One ICON pad to reset the entire control system to factory defaults or do not
touch a pad for 10 seconds to exit.
If you do not have an Aurora XLT, Chairman II, or the Triad II, proceed to the
Dynamic Massage Sequencer for the Aurora XLT, Chairman II and the Triad II
The Dynamic Massage Sequencer, Figure 5, is located in the Ultra Lounge of the models mentioned above. The
sequencer directs a succession of 14 jets to six separate muscle groups.
When a sequence is chosen, a human figure with LED's defining each zone, will light, showing the active zones in
that sequence. This allows you to preview the zones in the sequence before a selection is confirmed.
Control Panel Description
Control
1
18
2002 Dimension One Spas Export Owner's Manual
Figure 5. Dynamic Massage Control
1. LIGHT Pad
The LIGHT pad controls the spa light. Status light illuminates when light is on.
Initial Startup
section.
Function
