THEORY OF
OPERATION
6
The Fuel System: The air pump forces air through the air line. The air is then
pushed through the burner head nozzle. This air causes fuel to lift from the tank.
A fine mist of fuel is sprayed into the combustion chamber.
The Air System: The motor turns the fan. The fan pushes air into and around
the combustion chamber. This air is heated and provides a stream of clean, hot air.
The Ignition System: The electronic ignitor sends voltage to the spark plug.
The spark plug ignites the fuel and air mixture.
The Burner Control System: This system causes the heater to shut down if
the flame goes out.
Combustion
Chamber
Clean
Heated
Air Out
Nozzle
Fuel
Tank
Air For Fuel
System
Spark
Plug
Fuel
Filter

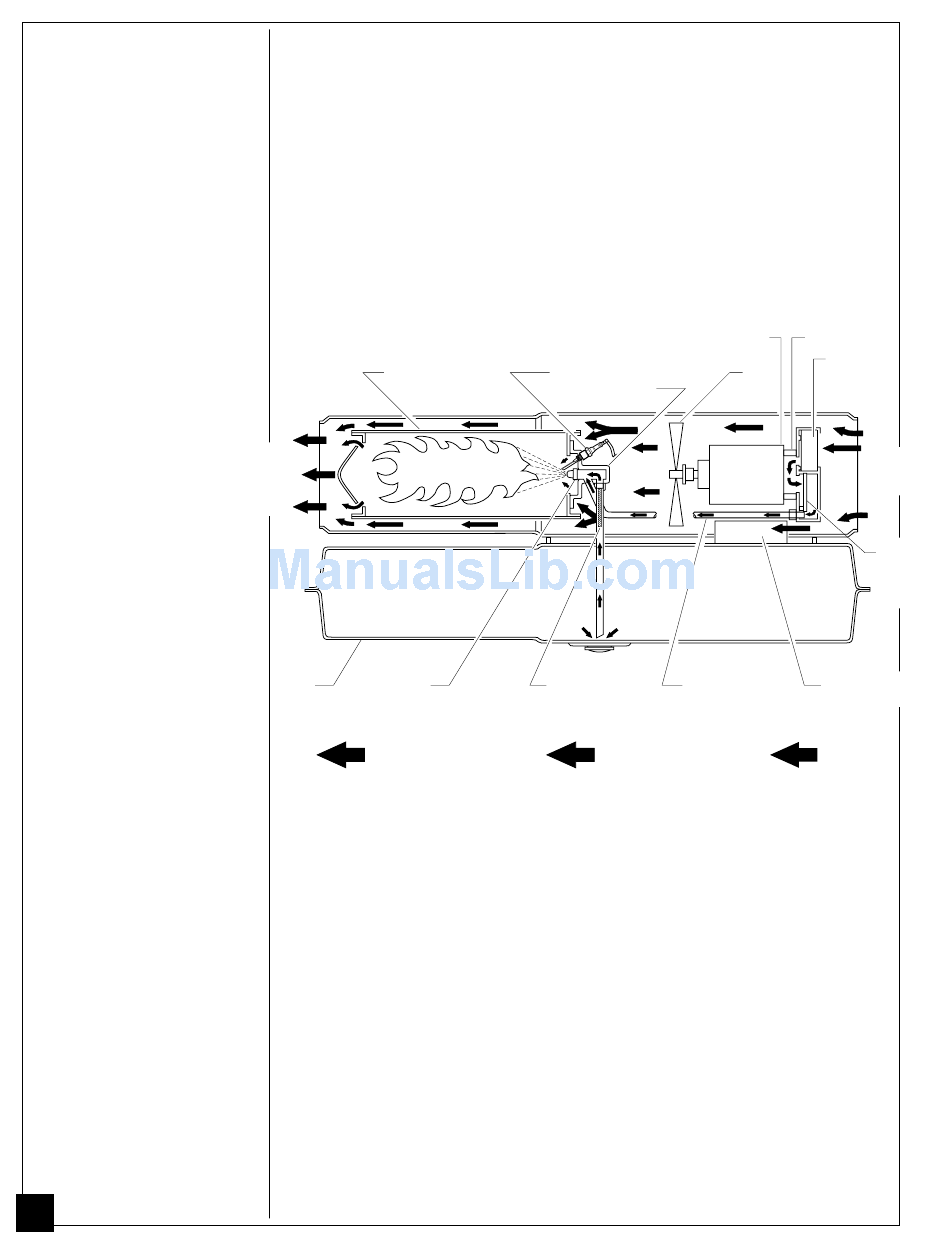

THEORY CUTAWAY
Figure 3 - Cross Section Operational View
Motor
Burner
Fan
Head
Air Line
To Burner
Air For Combustion
And Heating
PFA/OV 003
Air Pump
Air
Intake
Filter
Cool
Air
In
Air
Output
Filter
Electronic
Ignitor
Fuel
103252
