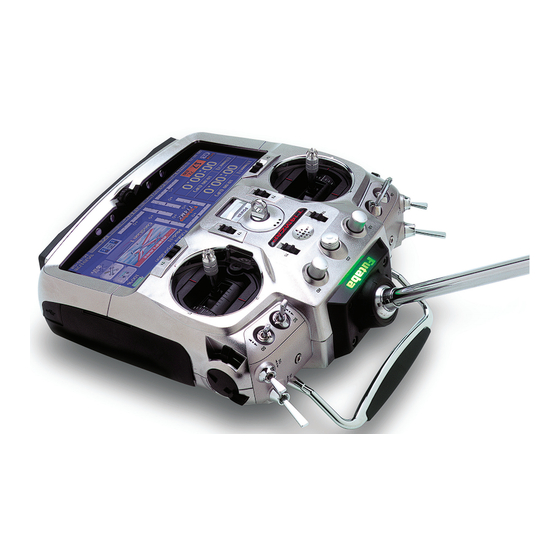

When turning on the 14MZ, you must let the system cycle through before turning off.
First you should know the 14MZ receiver (R5014DPS) has
a different layout than the standard layout Futaba has
used in the past. After you have all your servos installed in
your helicopter, you'll want to use one of these charts to
plug the proper servos into the R5014DPS receiver.
Direct Keys
CHOOSING MODEL TYPE AND SWASH TYPE
After turning on the power switch and pressing No for transmit. This will take you to the Home Page. Press Linkage Menu
then Model Select then press New, and then press Yes. Press on Swash Type and choose from one of the 7 different Swash
Types in the diagram that corresponds with the type of control system on your helicopter. You'll be asked "Check Change", if
correct, press Yes.
After selecting the swash type you will come to the Frequency page. Select the frequency by pressing the Pink Box and then
select the frequency or channel you would like to be on for this particular model. After selecting the frequency, press Enter at
the top right hand corner of the screen. You'll be asked to Check the change. If Yes, you'll need to make sure you have your
battery plugged into the receiver but no power to the receiver. Once you press Yes, then turn on the power to the receiver to
program the receiver to the frequency you just selected. You must have the transmitter antenna very close to the receiver
antenna when doing this.
Please follow the steps in the manual on page (26) How to change the Frequency. Then you'll need to turn off the power to
cycle through for the frequency to take affect.
Turn the system back on. Press "Yes" for Transmit. This will take you to the Home Page to start setting everything up.
There is a sequence that should be followed to get you started.
R5014DPS Receiver
H-4 Swash
Ch 1
Throttle
Ch 2
Rudder
Ch 3
Aileron (Left/Right Cyclic)
Ch 4
Elevator 1 (Fore/Aft Cyclic)
Ch 5
Pitch
Ch 6
Elevator 2
Ch 7
Gyro
Ch 8
Governor 1
Ch 9
Governor 2
Ch 10
Needle
Ch 11
Auxiliary 2
Ch 12
Auxiliary 1
All Others
Throttle
Rudder
Gyro
Aileron (Left/Right Cyclic)
Elevator (Fore/Aft Cyclic)
Pitch
Governor 1
Governor 2
Needle
Auxiliary 3
Auxiliary 2
Auxiliary 1
System Menu
Model Menu
Linkage Menu
