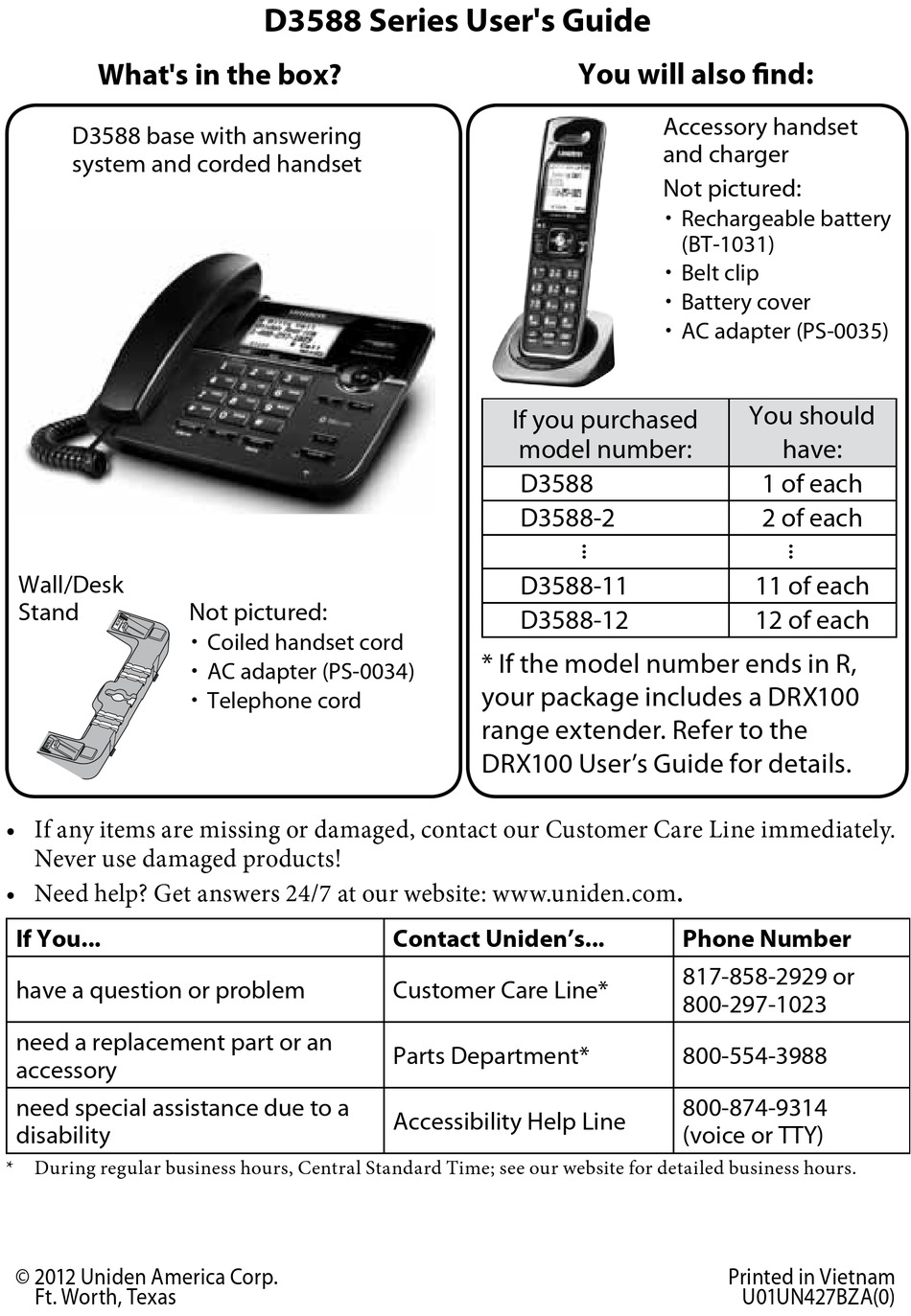

What's in the box?
D3588 base with answering
system and corded handset
Wall/Desk
Stand
• If any items are missing or damaged, contact our Customer Care Line immediately.
Never use damaged products!
• Need help? Get answers 24/7 at our website: www.uniden.com.
If You...
have a question or problem
need a replacement part or an
accessory
need special assistance due to a
disability
* During regular business hours, Central Standard Time; see our website for detailed business hours.
© 2012 Uniden America Corp.
Ft. Worth, Texas
D3588 Series User's Guide
Not pictured:
x Coiled handset cord
x AC adapter (PS-0034)
x Telephone cord
If you purchased
model number:
D3588
D3588-2
D3588-11
D3588-12
* If the model number ends in R,
your package includes a DRX100
range extender. Refer to the
DRX100 User's Guide for details.
Contact Uniden's...
Customer Care Line*
Parts Department*
Accessibility Help Line
You will also find:
Accessory handset
and charger
Not pictured:
x Rechargeable battery
(BT-1031)
x Belt clip
x Battery cover
x AC adapter (PS-0035)
You should
Phone Number
817-858-2929 or
800-297-1023
800-554-3988
800-874-9314
(voice or TTY)
Printed in Vietnam
U01UN427BZA(0)
have:
1 of each
2 of each
11 of each
12 of each
Advertisement
Table of Contents
Related Manuals for Uniden D3588
Summary of Contents for Uniden D3588
- Page 1 D3588 Series User's Guide You will also find: What's in the box? Accessory handset D3588 base with answering and charger system and corded handset Not pictured: x Rechargeable battery (BT-1031) x Belt clip x Battery cover x AC adapter (PS-0035)
-
Page 2: Table Of Contents
What’s in the manual? Getting Started ........3 Chain Dialing ..........21 Set Up the Base ..........3 Voice Message Notification ....21 Set Up the Accessory Handsets ....4 Using Your Phone During a Power Setting Up the CellLink™ Bluetooth™ Failure ............22 Connection ..........5 Using the Answering System .... -
Page 3: Getting Started
GETTING STARTED Set Up the Base Attach the Stand Before you attach the stand, you have to decide if you want the phone to rest on a desk or hang on a wall. For desktop use 1. Turn the stand so the word is right-side Desk up (it will be on the left). DESK 2. Insert the tabs into the notches marked Desk DESK WALL WALL at the top of the base. 3. Slide the stand up until it snaps into place. For wall mount use DESK 1. Turn the stand so the word is right-side Wall WALL up (it will be on the left). WALL DESK 2. Insert the tabs into the notches marked... -
Page 4: Set Up The Accessory Handsets
For desktop use For wall mount use DESK WALL WALL DESK DESK WALL DESK WALL 2. Plug the AC adapter into a standard 120V AC power outlet, and connect the telephone cord to a standard telephone wall jack. 3. If you are mounting the phone on the wall, place the mounting slots over the pins on the wall plate; slide the base down to lock it into place. Test the Connection Pick up the corded handset from the base. You should hear a dial tone and the display on the base should say Talk. When you get a dial tone, make a quick test call. If... Try... the display says Check TEL Line checking the connection between the you don’t hear a dial tone base and the phone jack. -
Page 5: Setting Up The Celllink™ Bluetooth™ Connection
Test the Connection Pick up each handset and press . You should hear a dial tone and the HOMe/flasH display should say Talk. If there is noise or static, see p. 25 for tips on avoiding interference. Attaching the Belt Clip Line up the holes on each side of the handset. Insert the belt clip into the holes on each side of the handset. Press down until it clicks. To remove the belt clip, pull either side of the belt clip to release the tabs from the holes. Setting Up the CellLink™ Bluetooth™ Connection The new D3588 with CellLink technology can connect with mobile phones that support the Bluetooth V2.1 handsfree profile. • If you are not certain of the profiles supported by your Bluetooth phone or if you have difficulty pairing your phone to the D3588, see the manual that came with your phone. • With the CellLink feature, you can essentially treat your cellular phone as a second line. You can use the D3588 handset to make and receive calls on your cellular phone number, put cellular calls on hold, and transfer calls to other handsets. See p. 13 for more information. • Bluetooth wireless devices have a maximum range of about 32 feet (10 m); the actual range will vary depending on local conditions (obstacles, battery power, interference, etc.). Pair your Bluetooth phone Pairing “introduces” the Bluetooth device and the D3588 and gives them permission... - Page 6 To test the connection 1. Pick up the handset from the cradle. 2. Dial the number you want to call, then press on the handset. You may not Cell hear a dial tone or ringing, but the handset display says Talk. 3. Make sure the call connects and you can hear clearly. (When you’re finished, press to hang up.) • The D3588 remembers the pairing information for your cellular; if it loses connection with your phone for any reason (e.g., the cell phone travels out of range, runs out of charge, etc.), the D3588 can automatically reconnect the next time your phone becomes available. Using the D3588 with four Bluetooth phones • The D3588 can save the pairing information for four different Bluetooth phones, but it can only use one cellular line at any given time. For example, if you pair the D3588 to four Bluetooth phones, when you press on the station, the D3588 Cell asks which phone you want to connect to. • If you are using the D3588 to talk on one Bluetooth phone, the D3588 will not ring if a call comes in on another phone. • You can set a different ring tone for each paired cell phone (see p. 11). • To pair another Bluetooth phone, just repeat the pairing procedure with the new phone. (If the paired phones interfere when you’re pairing the new one, just turn off Bluetooth on any paired phones until you finish pairing the new one.)
-
Page 7: Getting To Know Your Phone
GETTING TO KNOW YOUR PHONE Parts of the Base CLEAR PHONEBOOK display MENU SELECT Hook switch Handset clip SILENT SILENT DIGITAL ANSWERING SYSTEM CLEAR MENU SELECT FLASH PLAY/STOP DOWN Speaker ANS ON/OFF DELETE 12-key dial pad PQRS WXYZ TONE OPER CELL CELL HOME... -
Page 8: Parts Of The Handset
Key (icon) What it does x In standby: decrease the ringer volume. x During a call or while a message is playing: decrease the volume. DOWn ( x In any menu or list: move the cursor down one line. x In standby: press and listen to the guidance. Press again to Delete All. - Page 9 Key (icon) What it does x In standby: start a telephone call using a paired Bluetooth phone. x While a paired phone is ringing: answer the incoming call. Cell x During a CellLink call: switch to a waiting call. x In standby: or during a call: open the caller ID list. x When entering text: move the cursor to the right.
-
Page 10: Using The Menu
New message symbol: an asterisk * icon indicates a new message or a message not retrieved. Indicates a new message received. Bluetooth device number linked to the D3588. 1 2 3 4 [Aa] [aA] Enter 1) capital or 2) lower case letters (see p. 12). - Page 11 (ending your conversation) resets Call Privacy to off. Menu (On-Hook or Off-Hook) HD Audio This menu lets you turn high-definition audio on and off for the call you are on. When you end the call (go on-hook), HD audio defaults to off. If you put your call on hold, the HD audio setting does not change. Menu Bluetooth Setup Use the Bluetooth menu to pair a cell phone to the D3588 and select a cellular phone if you pair more than one. Menu Handset Setup You can change these settings separately for each station. Menu Option What it does Turn on T-coil mode to reduce noise on hearing aids equipped T-coil with a telecoil (T-coil) feature. T-coil mode shortens talk time, so keep your battery fully charged.
- Page 12 Menu Option What it does HD Audio Turn HD Audio on or off. Menu (From Base) Base Setup You can change these settings separately for each station. Menu Option What it does Language Change the display language. Key Touch Tone Have the keypad sound a tone when you press a key. LCD Contrast Change the contrast of the display.
-
Page 13: Using Your Phone
Press HOMe/ switch or press Press Press HOMe sPeaker on hold flasH HOMe * After 5 minutes on hold, the call will be disconnected. Using Your Bluetooth Connection After you have paired your cell phone with the D3588 (with the phone in standby, press to make a call through your cell phone. See p. 6), you can make and receive Cell calls from your cell phone through the D3588. English - 13... -
Page 14: Changing The Volume
To... Press... make a call: dial the number, then Cell answer a call Cell. hang up on the base or on the handset. Cell return to a call on hold Cell. switch from the land line to CellLink Cell. * (automatic hold) Switch from CellLink to the land line HOMe... -
Page 15: Using The Caller Id And Redial Lists
Using the Caller ID and Redial Lists Caller ID (CID) is a service available from your telephone provider that shows the phone number (and sometimes the caller’s name) of incoming calls. Contact your telephone provider for more information. Caller ID list Redial list x The phone saves the information for the last 50 x Each station remembers incoming calls (both landline and CellLink calls) to the the last 10 numbers you CID list. -
Page 16: Using Call Waiting
• To install a headset, remove the headset jack cover and insert the headset plug into the jack. • Just make and receive calls as usual, and use your headset to talk to the caller after the call connects. • When you connect a headset, the handset automatically mutes the earpiece. To re-activate the earpiece, just unplug the headset. Using the Phonebooks • You can download the phonebook (up to 1500 entries) from each paired cellular phone (up to four). You can also store up to 200 entries in the D3588’s Home phonebook, which is separate from any downloaded phonebooks. • Only one station can access the phonebook at a time. Downloading Cellular Phonebooks into your Phone 1. Make sure your cellular phone is paired to the D3588 and is within range of the base. Setup. With the D3588 in standby, open the menu and select Bluetooth PB. Select the cellular phone you want to download from, then select Download When downloading is complete, the station displays a confirmation screen. To cancel downloading, press • Each time you download a phonebook, the D3588 overwrites any previous copy of that phonebook. The D3588 automatically cancels the download if it receives an incoming call or someone tries to make an outgoing call. 16 - English... - Page 17 • If the download is interrupted or canceled, the D3588 reverts to the original copy of the downloaded phonebook. • If you delete the pairing information for a cellular phone, the downloaded phonebook from that phone will also be deleted. Managing your Phonebooks Your phone stores Home and Cell phonebooks separately. To open the phonebook, make sure the phone is in idle and press PHONEBOOK. Use UP/DOWN to select the specific list you would like to review. Then select View Numbers. Once in the phonebook, you will have several options: To... Press... , then select the phone name and then View PHOnebOOk open the phonebook Number. to scroll through the entries from A to Z. DOWn to scroll from Z to A.
-
Page 18: Using Special Features
• Enter the phone number (up to 32 digits) exactly as you would dial it. • If you need the phone to wait before sending the next set of digits, press reDial/ to insert a 2-second pause. You can insert multiple pauses, but each one Pause counts as a digit (you’ll see P in the display). • To edit the name, press (left key) to move the cursor back and insert a PHOnebOOk letter. Press to delete a letter. Clear • To edit the number, press to back up the cursor and delete numbers. Re- Clear enter the correct numbers. Deleting All the Phonebook Entries With the phone in standby, open the phonebook. Select the phone name and then Delete All. To confirm, select Yes. USING SPECIAL FEATURES Silent Mode You can silence the ringers on the base and all handsets for a specific period of time; the answering system answers any incoming calls without playing anything through the speaker. 1. With the phone in standby, press and hold silent on any station. The phone On) that you want it to prompts you to select the number of hours (1 - 9 or Always stay in silent mode. -
Page 19: Multistation Features
Call Blocking Menu Options With the phone in standby, open the menu and select Call Blocking. Choose one of these options: Menu Option What it does View Number See the numbers on your call block list. Add an entry to your call block list. The phone will prompt Create New you to enter a name & phone number. Block all calls from numbers reported by CID as "Private."... - Page 20 Call Transfer To... From the base... From a cordless handset... 1. Press 1. Press to put interCOM/finD Hs interCOM/Clear put the call on hold. the call on hold. 2. Select the station you want to transfer the call to, or select transfer a call to page all the stations at the same time.
-
Page 21: Chain Dialing
From the base, press... From a cordless To... handset, press... interCOM/finD Hs. interCOM/Clear. make an intercom page Select the station you want to talk with or to page all stations at the same time. or hang interCOM/finD Hs cancel a page enD. -
Page 22: Using Your Phone During A Power Failure
Using Your Phone During a Power Failure If there is a power failure, you can still make and receive phone calls using the base corded handset, including Call Waiting calls and changing the earpiece volume. All other features of the base and all cordless handsets will not function. While the power is out, the base uses a special ringer; you cannot adjust the volume of this ringer. USING THE ANSWERING SYSTEM The answering system works with land-line calls only. Answering System Options (Answering Setup) -
Page 23: Accessing The Answering System
To... Follow these steps: 1. Open the menu with the phone in standby. Select Answering Setup, then Record Greeting. 2. Press to start recording. Wait until the system says "Record seleCt greeting" before speaking. record a personal 3. Press to stop recording. The system plays back your new seleCt greeting greeting. -
Page 24: Using The System While You're Away From Home
To... From the base From a handset Wait at least 5 seconds after the message starts playing, restart this message press press (number key). PHOnebOOk. Within 2 seconds after a message starts playing, replay an earlier message press select (number key). PHOnebOOk. -
Page 25: Important Information
Programming a Security Code With the phone in standby, open the menu; select Answering Setup, then select Security Code. Use the number keypad to enter a two-digit security code (01 to 99). Press when you’re finished. seleCt Remember to make a note of your new security code! Dialing In to Your System 1. Call your phone number & wait until the system answers. (If the system is turned off, it answers after 10 rings & sounds a series of beeps.) 2. During the greeting or beeps, press 0 and immediately enter your security code. If you enter it incorrectly 3 times, the system hangs up and returns to standby. 3. The system announces the time, the number of messages in memory, and a help prompt. It beeps to let you know it's waiting for a command. 4. When you hear beeping, enter a 2-digit command from the chart. If you don't press Repeat message Stop playback any keys for 15... - Page 26 The phone keeps ringing x You may have to change the line mode. Contact when I answer on an Customer Service for instructions. extension. Audio issues Possible solutions x Move the handset closer to the base. Callers sound x Keep the handset’s battery fully charged. weak or soft.
- Page 27 Possible solutions x Making sure your phone is in pairing mode. x Check your phone’s manual for instructions on Bluetooth device pairing. The D3588 won’t pair with x Making sure your phone supports the Bluetooth my phone. hands-free profile. x Checking the link order for that phone. In rare cases, some cellular phones may not be linked as the third or fourth cellular phone.
-
Page 28: Resetting Stations
Registration Failed, defects or other reproductive harm. Wash charge the battery completely, hands after handling. then try again. Uniden works to reduce lead content in our products & accessories. Adapter and Battery Information Compliance Information AC adapter Base Charger FCC Part 68 Information... - Page 29 An applicable Universal Service Order Codes Any changes or modifications to this product not (USOC) certification for the jacks used in expressly approved by the manufacturer or other this equipment is provided (i.e., RJ11C) in the party responsible for compliance could void your packaging with each piece of approved terminal authority to operate this product. equipment. A plug and jack used to connect this NOTICE: According to telephone company equipment to the premises wiring and telephone reports, AC electrical surges, typically resulting network must comply with the applicable FCC from lightning strikes, are very destructive to Part 68 rules and requirements adopted by the telephone equipment connected to AC power ACTA. A compliant telephone cord and modular sources. To minimize damage from these types of plug is provided with this product. It is designed surges, a surge arrestor is recommended. to be connected to a compatible modular jack that FCC Part 15 Information is also compliant. See installation instructions for details. This device complies with part 15 of the FCC rules. Operation is subject to the following two The REN is used to determine the number of conditions: (1) This device may not cause harmful devices that may be connected to a phone line. interference, and (2) This device must accept Excessive RENs on a phone line may result in any interference received, including interference devices not ringing in response to an incoming that may cause undesired operation. Privacy of call. In most but not all areas, the sum of RENs communications may not be ensured when using should not exceed five (5.0). To be certain of the this phone.
-
Page 30: 1-Year Limited Warranty
Uniden Product to be free from defects in materi- by traceable means, to warrantor at: als and craftsmanship with only the limitations or Uniden America Service exclusions set out below. 4700 Amon Carter Blvd. WARRANTY DURATION: This warranty to Fort Worth, TX 76155 the original user shall terminate and be of no further effect 12 months after the date of original As an Energy Star® Partner, retail sale. The warranty is invalid if the Product Uniden has determined that this is (A) damaged or not maintained as reasonable product meets the Energy Star® or necessary, (B) modified, altered, or used guidelines for energy efficiency. Energy Star® is a as part of any conversion kits, subassemblies, U.S. registered mark. or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired x Uniden® is a registered trademark of Uniden by someone other than an authorized Uniden America Corporation. service center for a defect or malfunction covered x The pictures in this manual are for example only. by this warranty, (E) used in any conjunction Your phone may not look exactly like the pictures. with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner's manual for this product. 30 - English...
