Secure the drive

NOTE:
The server latches and side views of your server model may not be exactly the same as shown in the
illustrations. Please refer also to you server documentation.

Mounting hardware used (HP ProLiant)

Ensure that you use the correct mounting rails or locating screws, as described in
"Attach mounting
the tape drive in place.
1.
Push the server latch down to lock the tape drive into position, as shown in

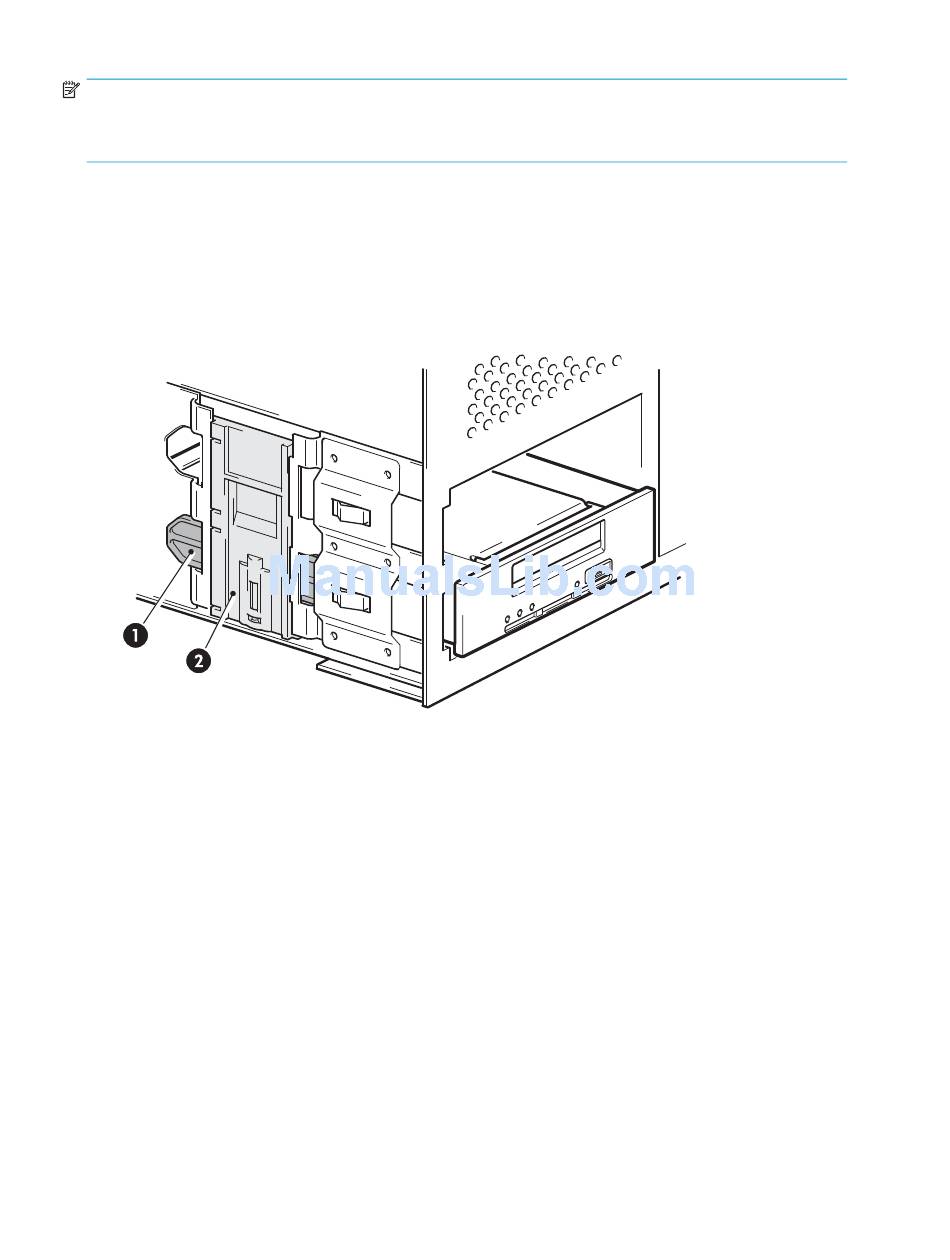

1. plastic rail
2. server latch
Figure 10 Securing drive, mounting hardware used
2.
Ensure blanking plates are in place over empty bays and replace the cover on the server.
26
Installing an internal DAT tape drive
hardware" on page 22. The server also incorporates a locking mechanism to hold
Figure 10 on page 26.
