Audiovox LCM1041TV Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

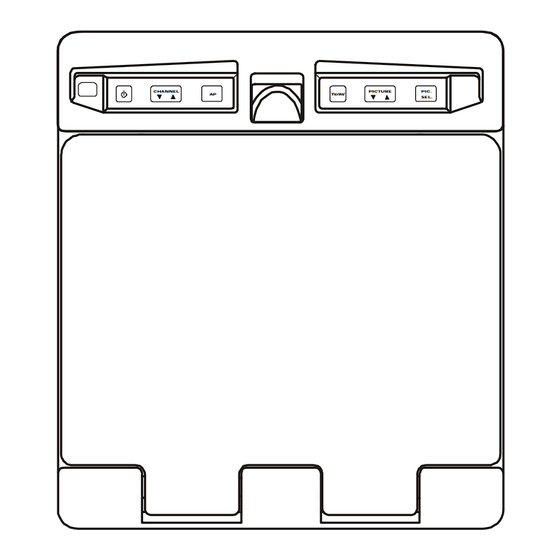

LCM1041TV
Owner's Manual
CHANNEL
PIC.
AP
TV/AV
SEL.

Advertisement

Table of Contents
loading

Related Manuals for Audiovox LCM1041TV

Summary of Contents for Audiovox LCM1041TV

  • Page 1 LCM1041TV Owner’s Manual CHANNEL PICTURE PIC. TV/AV SEL.

  • Page 2: Important Notice

    In the interest of safety, the LCM1041TV should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.
  • Page 3 fastened. Enjoy your Flexvision entertainment system but remember- safety of all passengers remains the number one priority. FEATURES 10.4” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor OSD (On Screen Display) for control of Picture Quality and Functions Remote Control Television Tuner Plug in RF Transmitter for wireless RF Headphones...
  • Page 4 FRONT PANEL FEATURE Figure 1 CHANNEL PIC. PICTURE TV/AV S E L .

  • Page 5: Battery Installation

    FRONT PANEL FEATURES – See Figure 1 1. Sensor Eye – Allows the remote control to operate the LCM1041TV’s OSD system (On Screen Display), volume to wired headphone jacks (and optional external speakers), and for control of Video Cassette Player and other accessories.
  • Page 6 TV POWER MUTE TV/ VIDEO ERASE/ AUTO SKIP/ SEARCH WRITE MEMORY VCP POWER PLAY F.FWD REPLAY STOP If a universal remote control is used with the LCM1041TV, choose the remote control encoding scheme for Action Televisions when programming the remote.
  • Page 7 Remote Controlled TV Functions 1. POWER ON/OFF Press this button to turn the LCM1041TV on. The channel number or current video source will be displayed on screen, and the picture will appear in a few seconds. Press the button again to turn the LCM1041TV off.
  • Page 8 When tuned to a channel, press this button to store or erase the channel from memory. The stored channel numbers are displayed in green on the screen, and the non-stored channels are in red. When skip mode is on, the LCM1041TV will tune to only the stored channels when using the CHANNEL UP/DOWN buttons.

  • Page 9: Channel Tuning Setup

    mode. For more information consult the VCP owner’s manual. 12. PLAY BUTTON Press this button to activate play mode while a tape is loaded into the VCP. This button may also be used to disengage search and pause modes. For more information, consult the VCP owner’s manual.
  • Page 10 MANUAL MEMORY XX ADD is displayed on screen. Note: Please refer to page 2 for more information on TV reception. TURNING THE LCM1041TV ON OR OFF 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly.

  • Page 11: Remote Sensor

    The LCM1041TV incorporates an infrared sensor, which relays the signals from the remote control to allow the LCM1041TV and VCP to be controlled simply by pointing it’s remote control at the remote sensor. This provides control of auxiliary equipment such as a Flexvision Video Cassette Player. The infrared sensor can relay signals from any manufacturer’s remote control to it’s respective component...
  • Page 12 Wired FM Modulator (P/N 0190730) Your video system may be equipped with an RF modulator, that allows you to listen to the LCM1041TV’s audio signal by tuning your vehicle’s radio to the selected frequency, (88.7 or 89.1- check with your installer) and tuning on the remote mounted RF modulator switch.

  • Page 13: Typical System Connections

    Flexvision Video Cassette Player (Aux Video 1) In most installations a VCP will be connected to the “Video 1” input. To view a video cassette, turn the AVP7000/ AVP7285 on and press the source button on its control panel or the TV/Video button on the remote control unit until “Video 1”...
