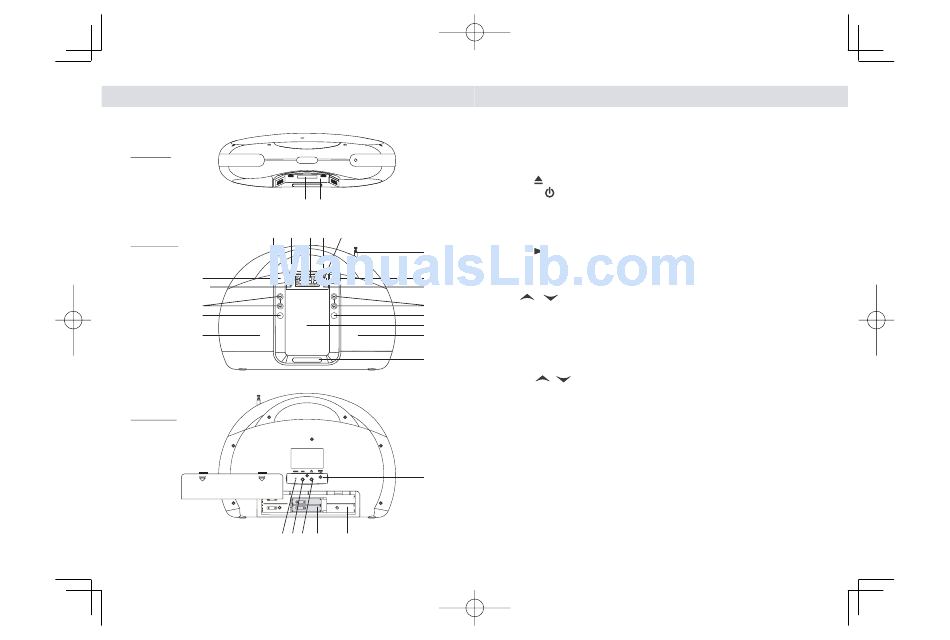

Description of Parts

Main Unit
Top View
8 9
Front View
10
11
12
13
19
Rear View
23 22 21 25
6
IPD5200 iB.indd IPD5200 iB.indd EN16-EN17 EN16-EN17
size:105x146mm,material:80gms book paper,BK+BK
2 1
7 6 5
14
4
15
16
17
3
19
18
20
24
Eng
Description of Parts
Main Unit
1. iPod docking compartment
2. iPod docking connector
3. iPod docking compartment door
4.OPEN button ---- To open the iPod compartment door
5.POWER button ----- To turn the unit on and off
6. Power Status indicator: LED
7. LCD display
8. Handle
9. SLEEP button ---- Select the time duration of the sleep timer
10. iPod / MEM button ---- iPod Play / Pause function ;
Save radio preset station
11. ALARM button ---- Turn the alarm on and off ; Set alarm time and
alarm source
12. V / button ----- Adjust volume level up or down
13. MODE / EQ button ---- In power off mode : Select clock setting and
12/24 hour format
In power on mode: Select EQ preset (CLASSIC/
JAZZ/ROCK/POP) and Treble / Bass setting
14. FM rod antenna
15. PRESET button ---- Select preset radio station
16. T/CH / button ---- In radio mode: Tune the radio frequency up/down
In iPod mode : Skip tracks Forward / Backward;
perform high-speed search
17. FUNC button ---- Select FM stereo / FM mono / iPod / AUX modes
18. SNOOZE / LIGHT -----Activate the snooze function ; turn LCD backlight
DIM / BRIGHT / OFF
19. Speakers
20. DC-in jack -----For the connection of external DC power supply
21. Stereo Phones jack
22. AUX jack ---- Auxiliary audio signal input
23. RESET button ---- For resetting the unit
24. Main battery compartment
25. Inner Clock battery compartment
