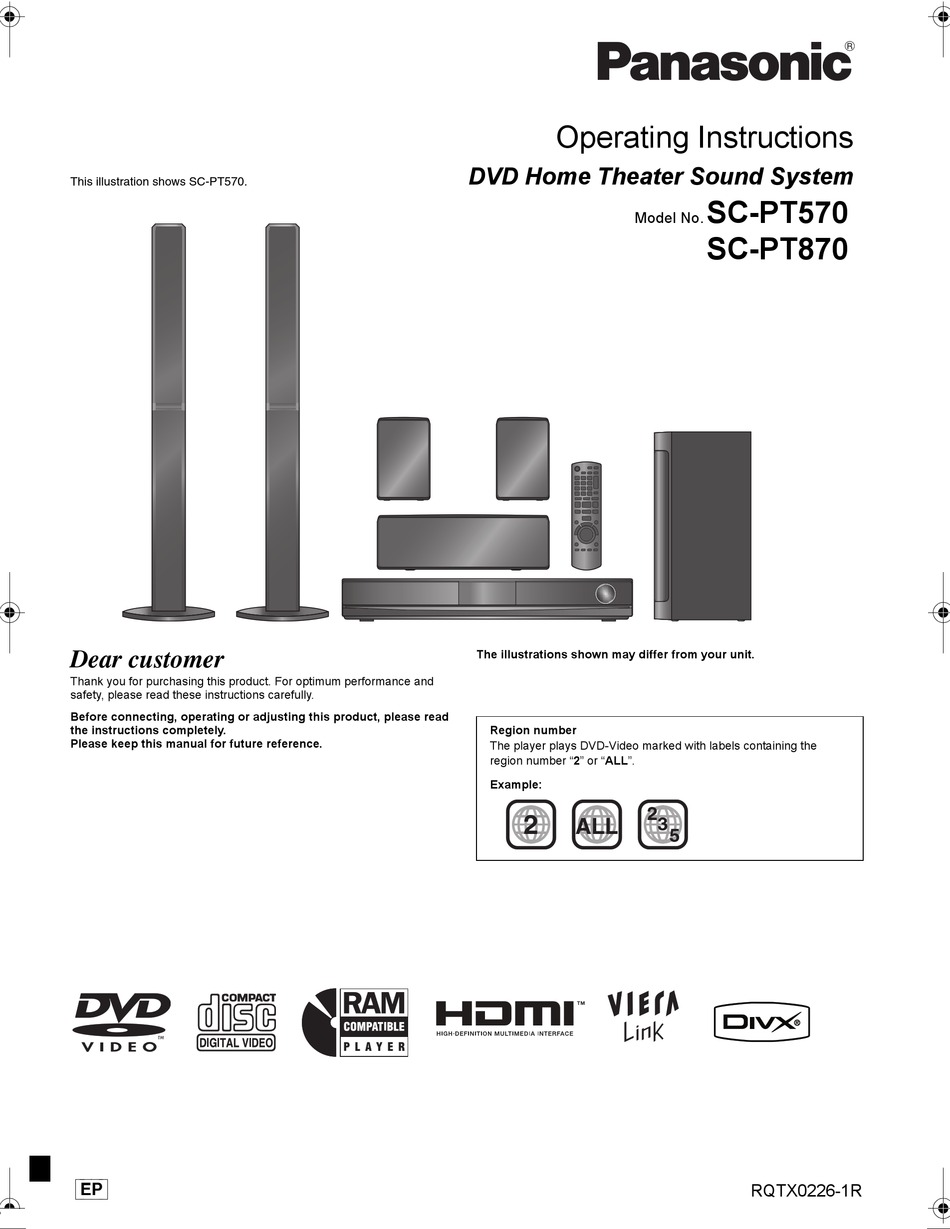

This illustration shows SC-PT570.
Dear customer
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference.
[EP]
Operating Instructions
DVD Home Theater Sound System
The illustrations shown may differ from your unit.
Region number
The player plays DVD-Video marked with labels containing the
region number "2" or "ALL".
Example:
2
ALL
SC-PT570
Model No.
SC-PT870
2
3
5
RQTX0226-1R
Advertisement
Table of Contents
Related Manuals for Panasonic SC-PT570
Summary of Contents for Panasonic SC-PT570
-
Page 1: Operating Instructions
Operating Instructions DVD Home Theater Sound System This illustration shows SC-PT570. SC-PT570 Model No. SC-PT870 The illustrations shown may differ from your unit. Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. -
Page 2: Accessories
SC-PT570 and SC-PT870. ≥ Unless otherwise indicated, illustrations in these operating System SC-PT570 SC-PT870 instructions are of SC-PT570. ≥ Operations in these instructions are described mainly with the Main unit SA-PT570 SA-PT870 remote control, but you can perform the operations on the... -
Page 3: Table Of Contents
TABLE OF CONTENTS Getting Started Accessories ........2 Setting up the radio. -
Page 4: Step 1 Assembling The Speakers
step 1 Assembling the speakers Front speaker [PT570] Preparation Front and surround speakers ≥ To prevent damage or scratches, lay down a soft cloth and perform [PT870] assembly on it. ≥ For assembly, use a Phillips-head screwdriver (not included). Make sure you have all the indicated components before starting assembly, setup, and connection. ≥... -
Page 5: Step 2 Positioning
Consult a qualified service person if damage has occurred You can enjoy surround speaker sound wirelessly when you or if you experience a sudden change in performance. use the optional Panasonic wireless accessory (example: ≥ Do not attempt to attach these speakers to walls using SH-FX70). -
Page 6: Step 3 Connections
step 3 Connections Turn off all equipment before connection and read the appropriate operating instructions. Do not connect the AC mains lead until all other connections are complete. Main unit SPEAKERS FM ANT AV OUT AV OUT (75 ) OPTICAL OPTICAL COMPONENT COMPONENT... -
Page 7: Audio And Video Connections
≥ Set “VIDEO FORMAT” in Menu 4 (HDMI) ( 19). VIERA Link “HDAVI Control” AV IN [Note] If your Panasonic TV is VIERA Link compatible, you ≥ Non-HDMI-compliant cables cannot be utilized. can operate your TV synchronising with home theater [Note] ≥... -
Page 8: Step 4 Ac Mains Lead Connection
Main unit AV OUT OPTICAL COMPONENT VIDEO OUT Audio and video connections (continued) Other audio connections TV or external Cable required equipment Main unit terminal Features (not included) terminal ≥ Do not bend sharply when This is the preferred connection for best sound and true [\\\\\\OPTICAL\IN\\\\\\] connecting. -
Page 9: Step 6 Smart Setup
step 6 SMART SETUP The Smart setup screen assists you to make necessary Smart setup settings settings. Preparation ≥Language Turn on your TV and select the appropriate Select the language used on menu screen. video input mode (e.g. VIDEO 1, AV 1, HDMI, ≥TV aspect etc.) to suit the connections to this unit. -
Page 10: Setting Up The Radio
Setting up the radio Confirming the preset channels PLAY MODE PLAY MODE Select “FM”. RADIO ≥ Main unit: EXT-IN Press [SELECTOR]. Numbered buttons Select the channel. ≥ To select a 2-digit number RADIO RADIO e.g. 12: [S10] EXT-IN SEARCH SEARCH SEARCH SKIP SKIP... -
Page 11: Rds Broadcasting
Presetting stations manually RDS broadcasting Up to 30 stations can be set. The unit can display the text data transmitted by the radio data system 1 While listening to the radio broadcast (RDS) available in some areas. Press [OK]. If the station you are listening to is transmitting RDS signals, “RDS” will 2 While the frequency is flashing on the display light up on the display. -
Page 12: Selecting The Source By The Remote Control
Selecting the playback source (continued) Press [SELECTOR] on the main unit to select source from the main unit. RADIO RADIO, EXT-IN iPod EXT-IN USB, iPod [Note] Confirm the audio connection to the SCART (AV), AUX or OPTICAL IN terminal on the main unit when you select the corresponding sources 7). -
Page 13: Selecting Sound Mode
Selecting sound mode Adjusting the speaker output level manually Preparation Select a sound mode. SOUND ≥ To display the picture, turn on the TV and select the appropriate video Each time you press the button: input mode. Equalizer ≥ Press [r, s VOL] to adjust the volume to normal listening level. SUBW LVL: Subwoofer Level ≥... -
Page 14: Basic Play
Basic play If you are experiencing problems, refer to troubleshooting ( 30 to 31) Preparation To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit. Using the main unit SELECTOR Turn on the unit. -
Page 15: Using The Remote Control
Using the remote control On-screen Select item select — Numbered buttons Confirm Enter number [DVD-VR] [DVD-V] [VCD] [CD] e.g. To select 12: [S10] SLOW, SEARCH SEARCH SEARCH PLAY SKIP [VCD] with playback control SLOW SKIP SKIP PAUSE Press [∫ STOP] to cancel the PBC PAUSE function, and then press the STOP... -
Page 16: Other Modes Of Play
Other modes of play Program play (up to 30 items) Select an item. PLAY MODE e.g. [DVD-V] PLAY MODE DVD-V PROGRAM TITLE CHAPTER SELECT TITLE TITLE 1 TITLE 2 TITLE 3 TITLE 4 REPEAT REPEAT S TA R T: P L AY CLEAR ALL PLAY PLAY... -
Page 17: Using Navigation Menus
Using navigation menus ∫ Selecting the picture in Thumbnail menu [JPEG] While picture is e.g. displayed Group and content Group name number JPEG images PLAY PLAY SKIP SKIP SKIP STOP Select a picture. ≥ Press [:, 9 SKIP] to skip page by TOP MENU, page. -
Page 18: Using On-Screen Menus
Using on-screen menus Items shown differ depending on the type of disc. Menu 1 (Disc/Play) TRACK SEARCH To start from a specific item Numbered ≥ [VCD] This does not work when using playback TITLE SEARCH buttons control. CONTENT SEARCH e.g. [DVD-V]: T2 C5 CHAPTER SEARCH To select numbers for data disc PG SEARCH... - Page 19 [JPEG] To select “ON” or “OFF” for picture’s Menu 3 (Audio) J P G date display DAT E To make the dialogue in movies easier to hear DATE DISPLAY [DVD-V] (Dolby Digital, DTS, 3-channel or higher, with the dialogue recorded in the center channel) To rotate a picture (during pause) DIALOGUE [DivX] (Dolby Digital, 3-channel or higher, with the...
-
Page 20: Using The Viera Link "Hdavi Control
“Input Selection” in § § operations of this unit, and a Panasonic TV (VIERA) under “HDAVI START menu ( 11), the TV will automatically switch to TV tuner mode. Control”. You can use this function by connecting the equipment with the HDMI cable. -
Page 21: Viera Link Control Only With Tv's Remote Control
(Extension: “.asf”, “.ASF”) § Connect the USB device (not included). DivX (Extension: “.divx”, “.DIVX”, “.avi”, “.AVI”) Main unit For Panasonic D-Snap/DIGA § [Note] ≥ Maximum: 255 folders (excluding Root folder), 4000 files, 28 characters for file/folder name. ≥ Only one memory card will be selected when connecting a multiport USB card reader. -
Page 22: Using The Ipod
Operating other devices (continued) Select the menu. Each time you press the button: Music menu -----------------------------) Video menu PLAY MODE PLAY MODE ^-- iPod menu (iPod LCD) (} When using the START menu in “IPOD” mode e.g. REPEAT iPod Home Cinema REPEAT Music Videos... -
Page 23: Speaker Installation Option
About recharging the battery Enjoying photos ≥ iPod will start recharging regardless of whether this unit is on or off. ≥ “IPOD ¢” will be shown on the main unit’s display during iPod charging in main unit standby mode. Select the iPod menu. ≥... -
Page 24: Changing The Player Settings
Changing the player settings MENUS Choose the language for disc menus. ≥ ENGLISH ≥ FRENCH ≥ SPANISH ≥ GERMAN ≥ HUNGARIAN ≥ CZECH ≥ POLISH ≥ RUSSIAN RETURN RETURN ≥ OTHER – – – – §2 SETUP SETUP The original language designated on the disc is selected. §1 Input the appropriate code from the language code list ( 35). - Page 25 ≥ SETTINGS: VIDEO OUT – SCART ≥ C DELAY (Center Delay): Choose the video signal format to be output from the SCART (AV) and 0ms, 1ms, 2ms, 3ms, 4ms, 5ms COMPONENT VIDEO OUT terminals. Select the delay time for your center speaker. ≥...
-
Page 26: Divx Information
Changing the player settings (continued) OTHERS menu DVD-VR/DATA Select to play only DVD-VR or DATA format. REGISTRATION [DivX] ≥ DVD-VR: To play the video programs on DVD-RAM or DVD-R/-RW. Display the unit’s registration code. ≥ DATA: To play the data files on DVD-RAM or DVD-R/-RW. ≥... -
Page 27: Safety Precautions
Safety precautions Placement Foreign matter Set the unit up on an even surface away from direct sunlight, high Do not let metal objects fall inside the unit. This can cause electric shock temperatures, high humidity, and excessive vibration. These conditions or malfunction. -
Page 28: Discs That Can Be Played
Discs that can be played Reference Commercial discs Indicated in these Disc Logo Remarks instructions by DVD-Video High quality movie and music discs [DVD-V] Music discs with video Video CD [VCD] Including SVCD (Conforming to IEC62107) Music discs [CD] Recorded discs (±: Playable, —: Not playable) Recorded on a DVD video Recorded on a personal computer, etc. -
Page 29: Maintenance
≥ You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple [MPEG4] DVD-R/RW “.asf” Profile) video system/G.726 audio system] recorded with Panasonic SD multi cameras or DVD CD-R/RW recorders with this unit. ≥ The recording date may differ from that of the actual date. -
Page 30: Troubleshooting Guide
Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the “NOISY” following guide do not solve the problem, consult your dealer for Excessive ambient noise in the room. Perform the setup again and keep instructions. - Page 31 ≥ Zoom function may not work well, especially in dark scenes and may No subtitles. not work depending on the type of disc. ≥ Display the subtitles. (“SUBTITLE” in Menu 1) ( When playing PAL disc, picture distorted. ≥ Subtitles may not be displayed depending on the disc. [DivX] Set “TRANSFER MODE”...
-
Page 32: Specifications
2.3 kg playback of DivX ® media files. Certified to the DivX Home Theater Profile. [Center\speaker\SB-HC470] MPEG4 data recorded with Panasonic SD multi cameras or DVD §7 Type 2 way, 2 speaker system (Bass reflex) video recorders Speaker unit(s) Impedance 6 ≠... -
Page 33: Glossary
GENERAL [Subwoofer\SB-HW560] Type 1 way, 1 speaker system (Kelton type) Power supply AC 220 V to 240 V, 50 Hz Speaker unit(s) Impedance 6 ≠ Power consumption Main unit 130 W Dimensions (WtHtD) 430 mmk63 mmk327 mm 1. Woofer 16 cm Cone type Mass Main unit 3.4 kg 2. -
Page 34: Control Reference Guide
< Turn Whisper-mode Surround on/off ( REPEAT RADIO = TV operations iPod EXT-IN Aim the remote control at the Panasonic TV and press the button. SEARCH SEARCH PLAY [Í]: Turn the TV on/off [AV]: Change the TV’s video input mode... - Page 35 TUNE MODE FM MODE MEMORY Dock for iPod SMART SETUP OPEN CLOSE VOLUME SURROUND OUTPUT SETUP MIC SELECTOR TUNE Pull open Dock for iPod 14 15 : Remote control signal sensor 1 Standby/on switch (Í/I) Press to switch the unit from on to standby mode or vice ;...
- Page 36 Panasonic Corporation Web Site: http://panasonic.net Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany RQTX0226-1R F1208ZA1128...
