M S-7173 M ainboard

Hard Disk Connector: IDE1

The mainboard provides a one-channel Ultra ATA 100 bus Master IDE controller that
supports PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100 function. You can
connect hard disk drives, CD-ROM drives and other IDE devices.

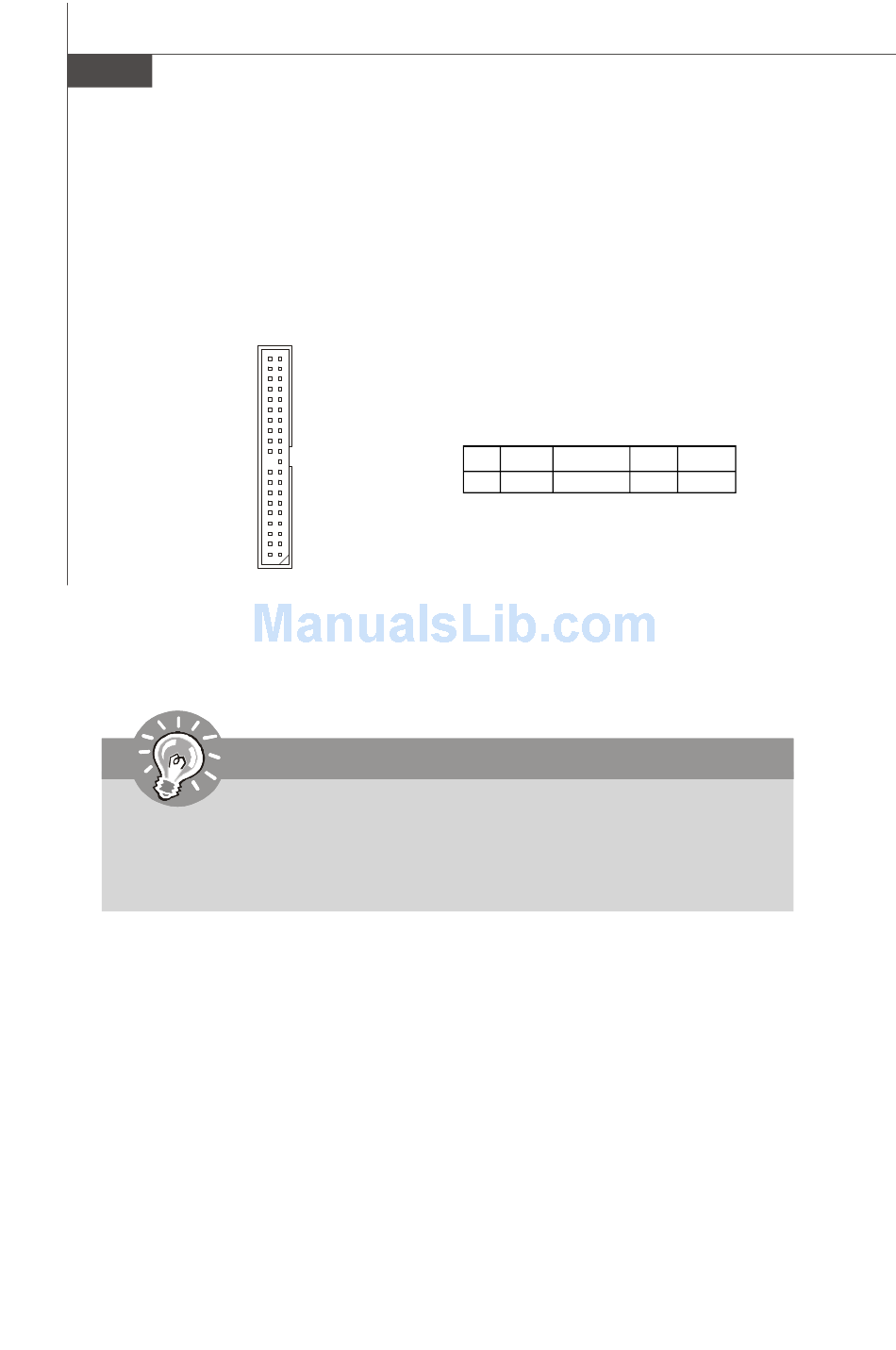

IDE1
IDE1 (Primary IDE Connector)
IDE1 can connect a Master and a Slave drive. You must configure the second hard
drive to Slave mode by setting the jumper accordingly.
Important
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk docu-
mentation supplied by hard disk vendors for jumper setting instructions.
2-16
Definition
IDE VDMA Controller
1 66/100 Intel ICH6
RAID ATAPI
N/A Yes
