M S-7173 M ainboard

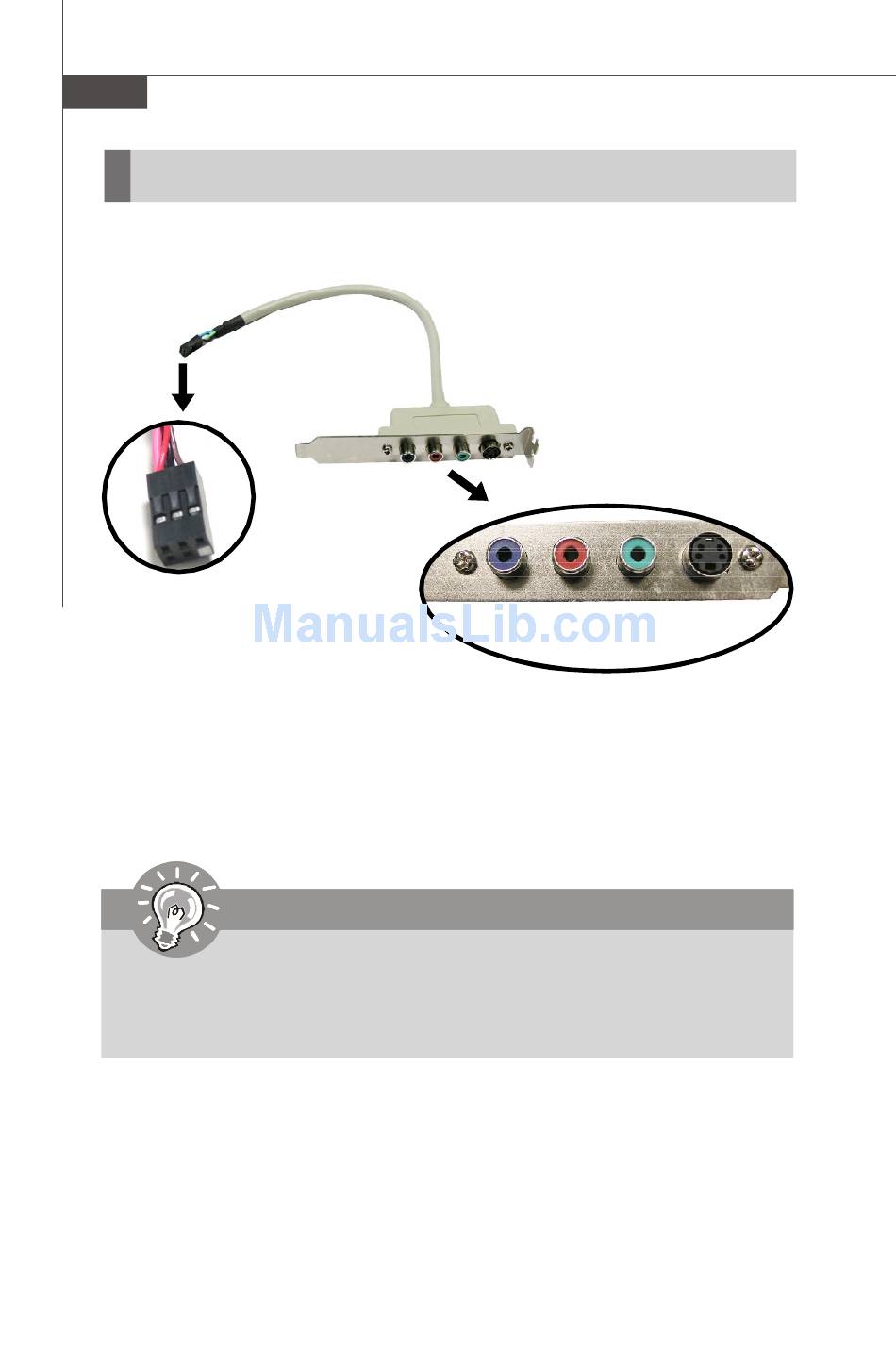

Installing the TV-Out Bracket

1. Take out the TV-Out bracket.
Foolproof design
2. Locate the TV-out connector (JTV1) on the mainboard.
3. Connect the TV-Out bracket to the connector. Align the foolproof design with the
pin layout of the connector to avoid mis-inserting.
4. Place the TV-Out bracket into the first slot of your system case.
Important
Please note that the TV-Out bracket can connect to one TV only. Users
have to choose either the RCA Composite or the S-Video to connect.
Simultaneous connection (of this bracket) to two TVs is prohibited and
may lead to the malfunction of the TVs.
C-2
TV-Out Bracket
TV-Out Connector
(RCA Composite)
TV-Out Connector
(S-Video)
