7. Remove the new CD drive from its shipping container and check to see that the jumper
on the rear of the CD drive is set to the CSEL position.
You will have to verify that the master/slave/CSEL jumper is set in the CSEL
NOTE
position on the rear of the new CD drive that you will install. Since different
CD drive manufacturers have different locations for the CSEL jumper, look
at the documentation that came with the CD drive for the proper location of
this jumper.
8. Using the four CD drive mounting screws, mount the CD drive to the bracket as shown
in Figure 4-8. Note that the CD drive should extend approximately one inch out from
the front of the CD drive bracket.

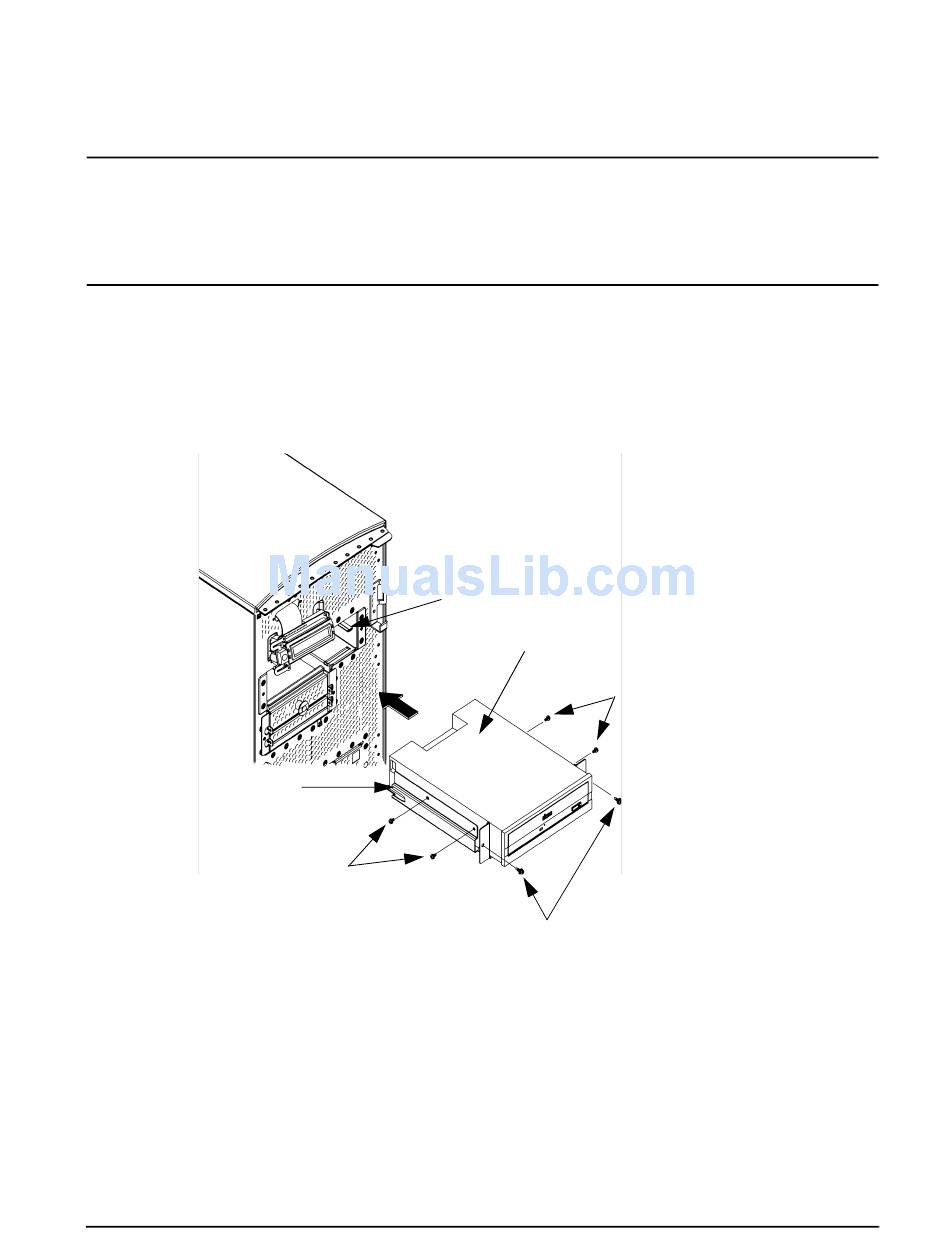

Figure 4-8. Installing the CD Drive

Bracket
Runner
CD Drive Mounting
Screws (T-15 Torx)
9. Slide the CD drive and its bracket into the workstation chassis as shown in Figure 4-8.
There are runners on the sides of the bracket and guides inside the CD drive chassis
that will help the CD drive and bracket assembly to slide into place.
Chapter 4
CD Drive Bracket Guide
CD Drive
CD Drive Mounting
Screws (T-15 Torx)
Bracket Screws
Field Replaceable Units
FRU Removal and Replacement
93
