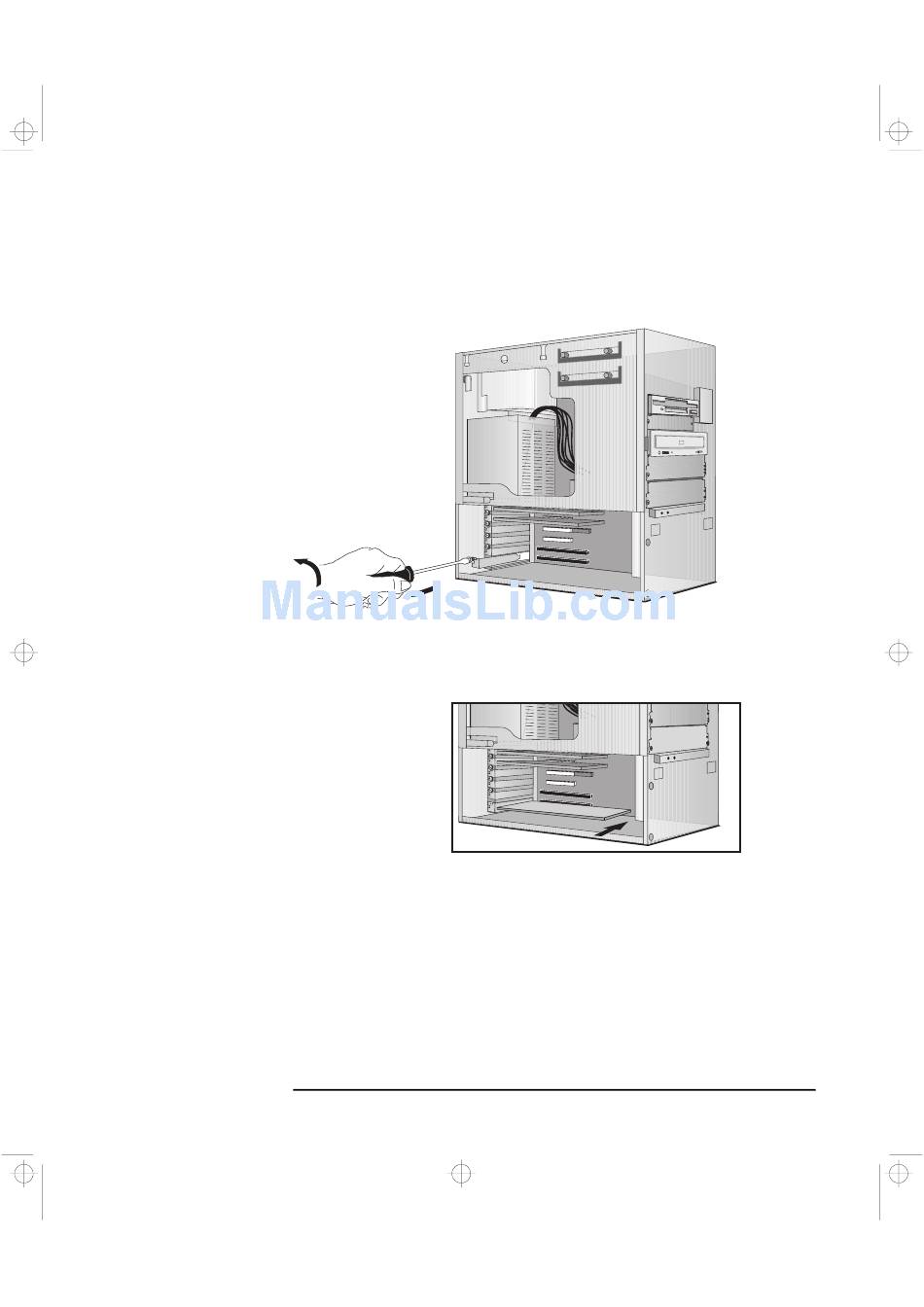

4 Unscrew and remove the slot cover. Store it in a safe place.
If the slot cover is tight, loosen the screws on the adjacent slots.
Unscrew and remove
the slot cover
5 Hold the board horizontally by its "top" edge. Slide it into the board
guide of the chosen slot. Do not bend the board.
Slide the accessory
board into position
6 Align the board's connector with the slot's socket. Firmly press the
board into the socket. Ensure the board's connector engages
completely with the socket and does not touch components on other
boards.
2 How to Install Accessories Inside Your PC Workstation
Installing Accessory Boards
English 51
