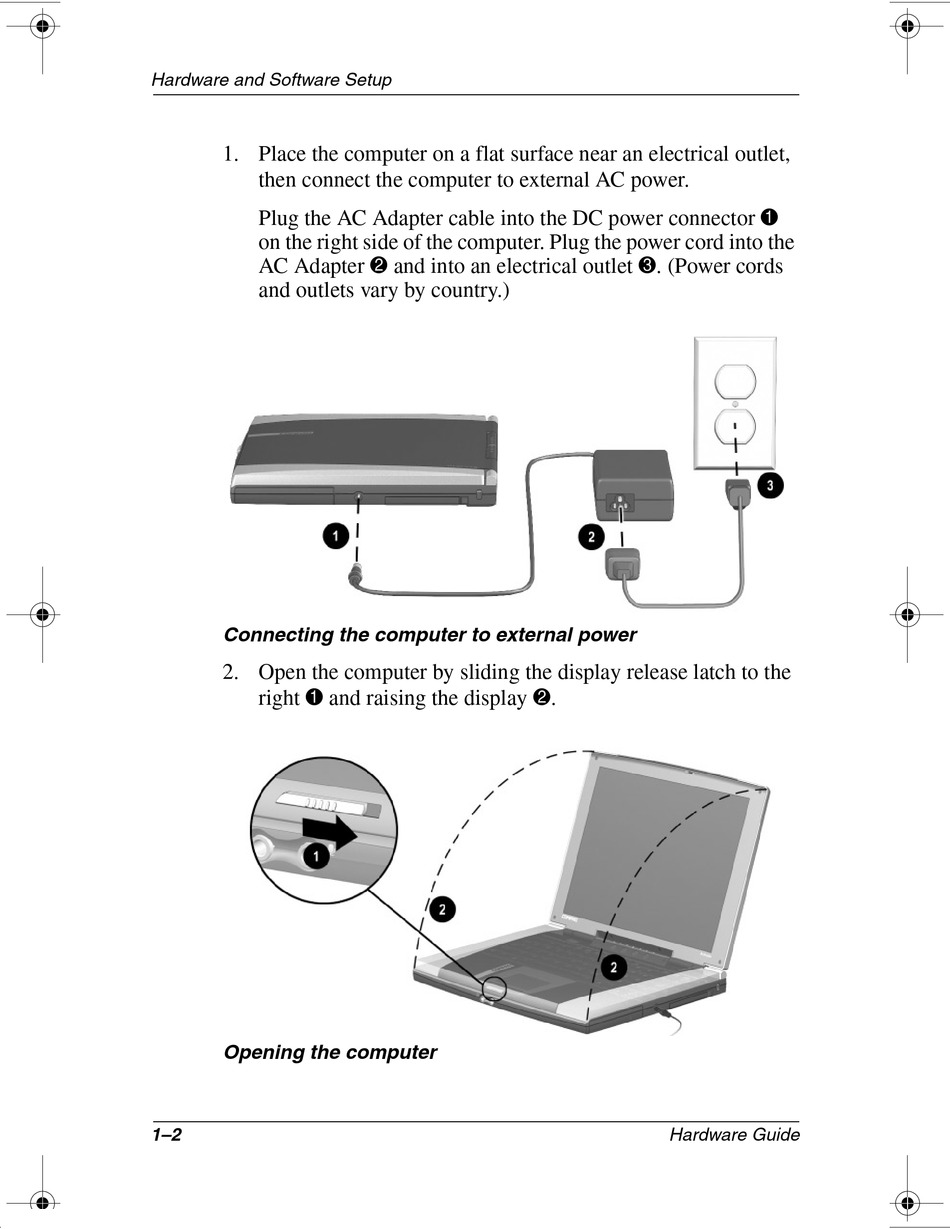

Compaq Evo N200 Hardware Manual page 7

Hardware and Software Setup
1. Place the computer on a flat surface near an electrical outlet,
then connect the computer to external AC power.
Plug the AC Adapter cable into the DC power connector 1
on the right side of the computer. Plug the power cord into the
AC Adapter 2 and into an electrical outlet 3 . (Power cords
and outlets vary by country.)
Connecting the computer to external power
2. Open the computer by sliding the display release latch to the
right 1 and raising the display 2 .
Opening the computer
1–2 Hardware Guide
