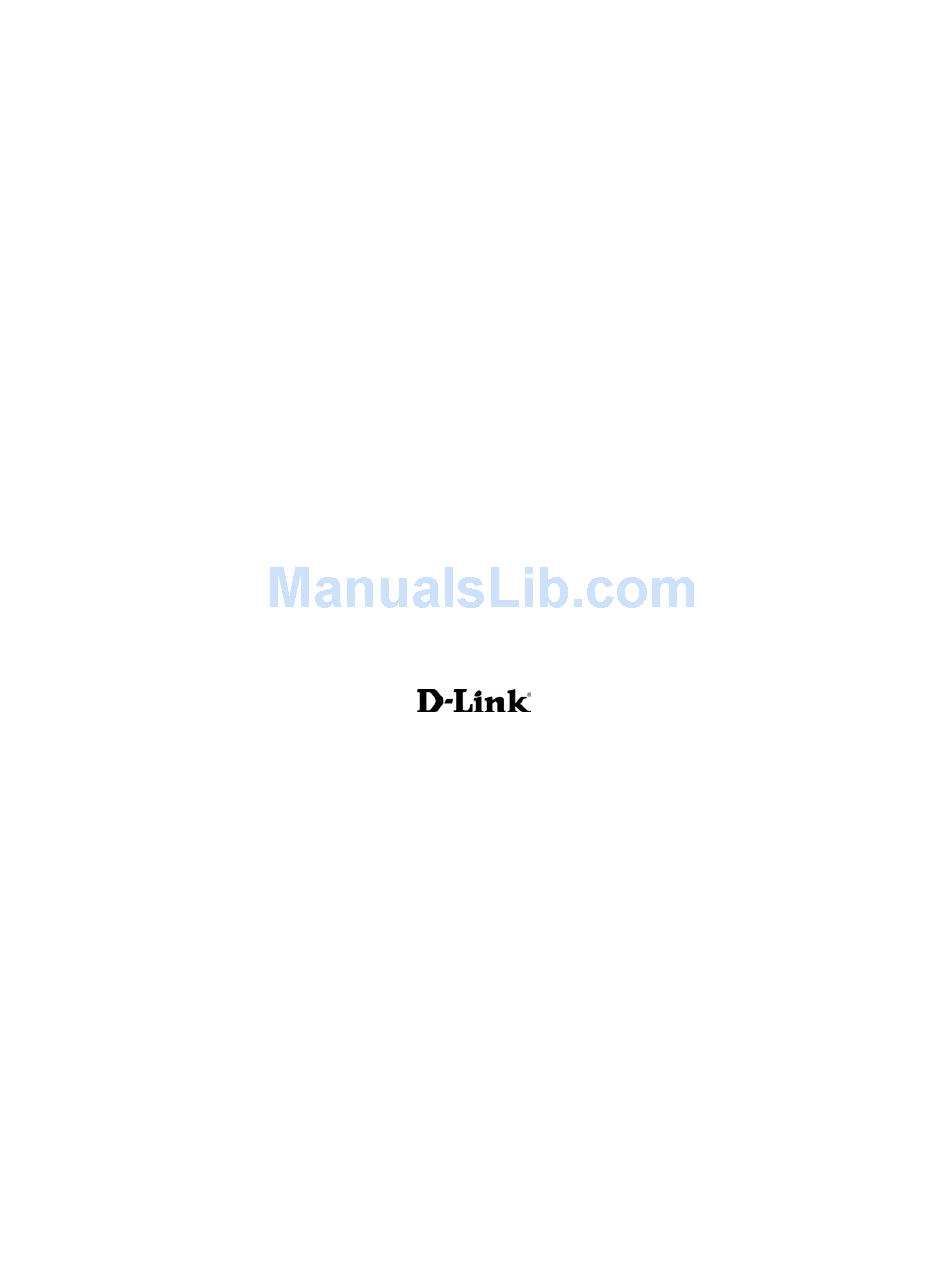

- Page 1 D-Link DES-1024D 24-Port 10/100 Ethernet Switch Manual Rev. 080702 Building Networks for People...
-
Page 2: Table Of Contents
ABLE OF ONTENTS About This Guide ... 1 ...1 URPOSE ...1 ERMS SAGE ...1 VERVIEW OF THIS ANUAL Introduction ... 2 ...2 THERNET ECHNOLOGY ...3 WITCHING ECHNOLOGY ...4 EATURES Unpacking and Setup... 5 ...5 NPACKING ...5 ETUP ...5 ESKTOP NSTALLATION ...6 OUNTING Identifying External Components... -
Page 3: About This Guide
BOUT UIDE Congratulations on your purchase of the DES-1024D 24-port 10/100Mbps Fast Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities into one highly flexible solution. Purpose This guide discusses how to install your DES-1024D. Terms/Usage In this guide, the term “Switch”... -
Page 4: Introduction
NTRODUCTION This chapter describes the features of the DES-1024D and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology Ethernet, along with its speedier counterpart Fast Ethernet, is the most popular networking standard in use today. 100BaseT Fast Ethernet is an extension of the 10BaseT Ethernet standard, designed to raise the data transmission capacity of 10BaseT from 10Mbits/sec to 100Mbits/sec. -
Page 5: Switching Technology
LAN. If an Ethernet network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision, installing a switch to a network can preserve much or all of the existing network's cabling and workstation interface card infrastructure, while still greatly enhancing the throughput for users. -
Page 6: Features
Today switches are an ideal solution to most kinds of local area network congestion problems. Features The DES-1024D is a high-performance switch designed specifically for environments where traffic on the network and the number of users increase continuously. -
Page 7: Unpacking And Setup
Setup The setup of the DES-1024D can be performed by using the following steps: 1. The surface must support at least 11 lbs (5 kg). 2. The power outlet should be within 6 feet (1.42 meters) of the device. -
Page 8: Rack Mounting
Allow enough ventilation space between the device and the objects around it. Fast Ethernet Switch installed on a Desktop or Shelf Rack Mounting The DES-1024D can be mounted in an EIA standard-size 19-inch rack, in a... - Page 9 Attach the mounting brackets on each side of the Switch’s front panel (as shown in the illustration below), and secure them with the screws provided. Attaching the mounting brackets to the Switch Installing the Switch in an equipment rack...
-
Page 10: Identifying External Components
The figure below shows the front panels of the switch. 24-port 10/100Mbps Fast Ethernet Switch LED Indicator Panel Refer to the next chapter for detailed information about each of the switch’s LED indicators. Power (PWR) This green LED indicator illuminates when the switch is receiving power;... -
Page 11: Rear Panel
100Mbps (green) This green LED indicator illuminates when the port is connected to a 100Mbps Fast Ethernet station. The LED does not illuminate when the port is connected to 10Mbps Ethernet station. Twisted-Pair Ports These ports support automatic MDI/MDIX crossover detection function providing true ‘plug and play’... -
Page 12: Technical Specifications
ECHNICAL PECIFICATIONS General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet Protocol CSMA/CD Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) Data Transfer Rate Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex) Topology Star 10BASET: 2-pair UTP Cat. 3,4,5, EIA/TIA- 568 100-ohm STP Network Cables 100BASE-TX: 2-pair UTP Cat. -
Page 13: Technical Specifications
ECHNICAL PECIFICATIONS Performance Transmits Store-and-forward Method: RAM Buffer: 2.5MBits per device Filtering 8K entries per device Address Table: Packet Filtering/ 10Mbps Ethernet: 14,880/pps Forwarding 100Mbps Fast Ethernet: 148,800/pps Rate: MAC Address Automatic update Learning:... -
Page 14: Warranty And Registration
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part. - Page 15 D-Link Systems, Inc., 53 Discovery Drive, Irvine, CA 92618. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped via UPS Ground or any common carrier selected by D-Link, with shipping charges prepaid.
- Page 16 D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this Warranty.
- Page 17 © prior notice. Copyright 2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved. CE Mark Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
