D-Link DES-1026G Manual

24-port 10/100 + 2-port 10/100/1000mbps gigabit ethernet switch
Hide thumbs Also See for DES-1026G:

Advertisement

Quick Links

See also: User Manual

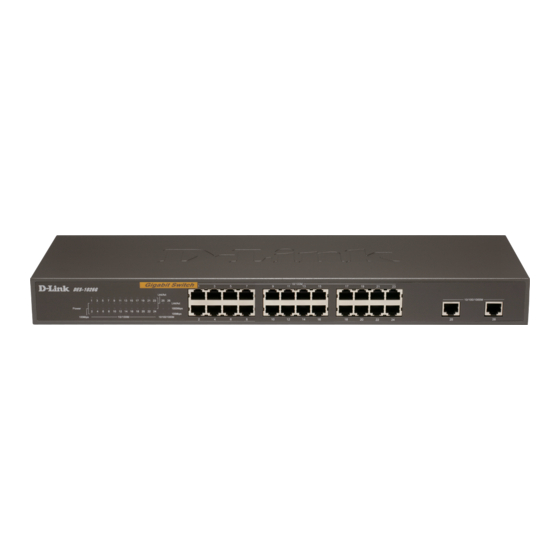

D-Link DES-1026G
24-Port 10/100 + 2-Port 10/100/1000Mbps
Gigabit Ethernet Switch
Manual
Second Edition
Building Networks for People

Advertisement

loading

Related Manuals for D-Link DES-1026G

Summary of Contents for D-Link DES-1026G

  • Page 1 D-Link DES-1026G 24-Port 10/100 + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch Manual Second Edition Building Networks for People...

  • Page 2: Table Of Contents

    Table of Contents Package Contents...3 Introduction ...3 Installation ...8 Technical Specifications ...11 Contacting Technical Support ...12 6. Warranty ...13 P/N:1907E7224TA6002...

  • Page 3: Package Contents

    1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet, and 10Mbps Ethernet network capabilities into one cost-effective solution. This manual discusses how to install your DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch. In this manual, the term “Switch” (first letter upper case) refers to your DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch, and “switch”...
  • Page 4 LAN. If an Ethernet network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision, installing a switch to an network can preserve much or all of the existing network's cabling and workstation interface card infrastructure while still greatly enhancing the throughput for users.

  • Page 5: Features And Benefits

    “two-repeater limit.” A switch can be used to split parts of the network into different collision domains, making it possible to expand your Fast Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks. Switches...
  • Page 6 The front panel LEDs provides instant status feedback and simplifies monitoring and troubleshooting tasks. LED indicators of the Switch POWER When the Power LED light is on, the Switch is receiving power. When the Power LED light is off , the power cord is improperly connected.
  • Page 7 transferring or receiving data on a 10/100/1000Mbps Ethernet network. No link. 1000Mbps When the LED lights on, the respective port is connected to a Gigabit Ethernet network. The respective port is connected to a 10/100Mbps Ethernet network, or no link. 100Mbps When the LED lights on, the respective port is connected to a 100Mbps Fast Ethernet network.

  • Page 8: Installation

    Supported input voltages range from 100~240V AC at 50~60Hz. Installation The site where you place the DES-1026G may greatly affect its performance. When installing, take the following into your consideration: Install the DES-1026G in a fairly cool and dry place. See Technical Specifications for the acceptable temperature and humidity operating ranges.
  • Page 9 Attach the adhesive rubber pads to the bottom Rack Mounting The DES-1026G can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipments. Attach the mounting brackets to both sides of the Switch (one at each side), and secure them with the provided screws.
  • Page 10 AC Power The DES-1026G can be used with AC power supply 100~240V AC, 50~60 Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected.

  • Page 11: Technical Specifications

    General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet Protocol CSMA/CD Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Data Transfer Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Rate Gigabit Ethernet: 2000Mbps (full duplex) Topology Star 10BASET: 2-pair UTP/STP Cat.

  • Page 12: Contacting Technical Support

    You can find the most recent software and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States for the duration of the warranty period on this product. U.S. customers can contact D-Link technical support through our web site, or by phone.

  • Page 13: Warranty

    D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office.
  • Page 14 Link Systems, Inc., 17595 Mt. Herrmann Fountain Valley, CA 92708-4160. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped via UPS Ground or any common carrier selected by D- Link, with shipping charges prepaid.
  • Page 15 RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT.
  • Page 16 Registration Register your product on-line at: http://support.dlink.com/register Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
