Advanced > Firewall - D-Link DVG-G1402S Owner's Manual

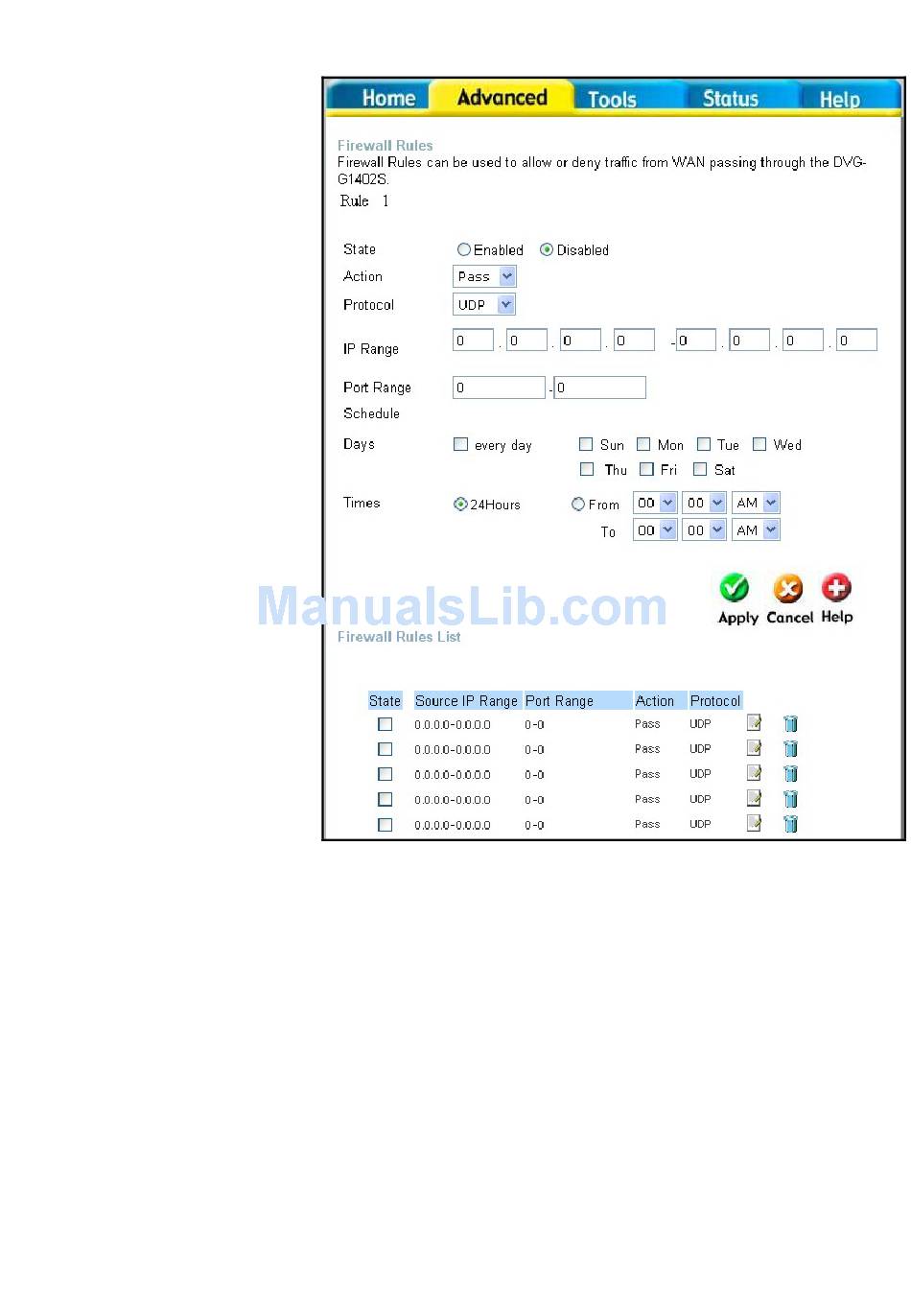

This Router comes equipped
with a firewall. The Firewall
configuration screen allows
the Router to enforce specific
predefined policies intended
to protect against certain
common types of attacks. To
configure the Router's firewall,
click the Advanced tab at the
top of the screen and then the
Firewall tab to the left.
Pass or Block
Protocol
Source
Destination
Advanced > Firewall
Select the action you want the filter to take when it finds a
packet that meets the criteria entered below.
The protocol associated with this IP filter. The user may choose
between TCP, UDP or Both.
Enter the IP address or range of IP addresses that you wish to
block or allow to pass through the router. The Source may be
identified on the LAN side, the WAN side or both by using the
pull-down menu for the Interface heading.
Enter the IP address or range of IP addresses that you wish to
deny or allow access to the Internet. The Destination may be
identified on the LAN side, the WAN side or Both by using the
pull-down menu for the Interface heading. The type of protocol
46
