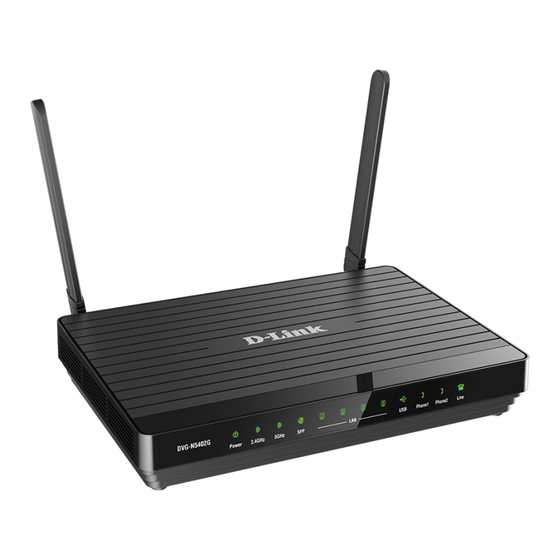

D-Link DVG-N5402G/ACF Quick Installation Manual
Wireless ac1200 dual band gigabit router with fiber wan port, 3g/lte support, 2 fxs ports, 1 pstn (lifeline) port, and usb port
Hide thumbs
Also See for DVG-N5402G/ACF:
- User manual (259 pages) ,
- Quick installation manual (54 pages)
Related Manuals for D-Link DVG-N5402G/ACF
Summary of Contents for D-Link DVG-N5402G/ACF
- Page 1 Quick Installation Guide DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port...
-
Page 2: Before You Begin
If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product. -
Page 3: Default Settings
Network key (PSK) bottom panel of the device Router DVG-N5402G/ACF with default settings cannot connect to the Internet. To get started, please set your own password for access to the web-based interface and change the WLAN name (SSID); then, if... -
Page 4: System Requirements And Equipment
DVG-N5402G/ACF Quick Installation Guide System Requirements and Equipment A computer with any operating system that supports a web browser. • A web browser to access the web-based interface of the router: • ◦ Apple Safari 5 and later ◦ Google Chrome 10 and later ◦... -
Page 5: Pc With Ethernet Adapter
DVG-N5402G/ACF Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC. - Page 6 DVG-N5402G/ACF Quick Installation Guide Obtaining Address Automatically in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
- Page 7 DVG-N5402G/ACF Quick Installation Guide 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 5. Click the ОК button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
- Page 8 DVG-N5402G/ACF Quick Installation Guide Obtaining Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
- Page 9 DVG-N5402G/ACF Quick Installation Guide 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 7. Click the OK button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
-
Page 10: Pc With Wi-Fi Adapter
DVG-N5402G/ACF Quick Installation Guide PC with Wi-Fi Adapter 1. To connect via USB modem: connect your USB modem to the USB port located on the back panel of the router. If you need to connect or change a USB modem to another one when the router is powered on, power off the router, connect the modem to the USB port, and power on the router. -
Page 11: Configuring Wi-Fi Adapter In Os Windows Xp
DVG-N5402G/ACF Quick Installation Guide Configuring Wi-Fi Adapter in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. Select the icon of the wireless network connection and make sure that your Wi-Fi adapter is on. -
Page 12: Configuring Wi-Fi Adapter In Os Windows 7
DVG-N5402G/ACF Quick Installation Guide Configuring Wi-Fi Adapter in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by... - Page 13 DVG-N5402G/ACF Quick Installation Guide 6. In the opened window, in the list of available wireless networks, wireless network DVG-N5402G (for operating in the 2.4GHz band) or DVG- N5402G-5G (for operating in the 5GHz band) and click the Connect button. 7. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.
-
Page 14: Configuring Router
DVG-N5402G/ACF Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.8.254). Press the Enter key. - Page 15 DVG-N5402G/ACF Quick Installation Guide Remember or write down the new password for the administrator account. In case of losing the new password, you can access the settings of the router only after restoring the factory default settings via the hardware RESET button. This procedure wipes out all settings that you have configured for your router.
- Page 16 DVG-N5402G/ACF Quick Installation Guide After successful registration the Home / Information page opens. The page displays general information on the router and its software.
- Page 17 DVG-N5402G/ACF Quick Installation Guide The web-based interface of the router is multilingual. If you need to select another language for the web-based interface, place the mouse pointer over the English caption in the top part of the page and select a language from the menu displayed.
-
Page 18: Configuring Connection To The Internet
DVG-N5402G/ACF Quick Installation Guide Configuring Connection to the Internet You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP. - Page 19 DVG-N5402G/ACF Quick Installation Guide...
- Page 20 DVG-N5402G/ACF Quick Installation Guide 6. If your operator requires to specify the access point name, in the USB modem section, fill in the APN field. If the operator has provided a username (login) and password, select the Set username and password checkbox and fill in the corresponding fields.
-
Page 21: Wan Connection
DVG-N5402G/ACF Quick Installation Guide 3G WAN Connection If the PIN code check is enabled for the SIM card inserted into your USB modem, then prior to creating a 3G WAN connection, proceed to the 3G/LTE modem / PIN menu and enter the PIN code on the page displayed... - Page 22 DVG-N5402G/ACF Quick Installation Guide If you need to specify other settings, in the PPP section, enter authorization data provided by your operator (the username (login) in the Username field and the password in the Password and Password confirmation fields), or select the Without authorization checkbox if authorization is not required.
-
Page 23: Wired Wan Connection
DVG-N5402G/ACF Quick Installation Guide Wired WAN Connection 1. If you configure a connection to an Ethernet line, go to the Advanced / EtherWAN page. On the page, click the icon corresponding to the LAN port to which the IPS's Ethernet cable will be connected and click the Apply button. - Page 24 DVG-N5402G/ACF Quick Installation Guide 8. If your ISP uses MAC address binding, in the Ethernet section, in the MAC field, enter the MAC address registered by your ISP upon concluding the agreement. To set the MAC address of the network...
- Page 25 DVG-N5402G/ACF Quick Installation Guide 10. For connection of PPPoE type: in the PPP section, enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password and Password confirmation fields), or select the Without authorization checkbox if authorization is not required.
- Page 26 DVG-N5402G/ACF Quick Installation Guide 12. For connection of Static IP type: in the IP section, fill in the IP Address, Netmask, Gateway IP address, and Primary DNS server fields. 13. For connection of Dynamic IP type: if your ISP has provided the address...
- Page 27 DVG-N5402G/ACF Quick Installation Guide For connection of Static IPv6 type: in the IP section, fill in the IPv6 address and Gateway IPv6 address fields. 15. For connection of Dynamic IPv6 type: if your ISP has provided the address of the DNS server, in the IP section, deselect the Obtain DNS server addresses automatically checkbox and fill in the Static primary DNS server field.
- Page 28 DVG-N5402G/ACF Quick Installation Guide 16. For connection of PPPoE + Static IP type: in the IP section, fill in the IP Address, Netmask, Gateway IP address, and Primary DNS server fields. Then in the PPP section, enter authorization data provided...
- Page 29 DVG-N5402G/ACF Quick Installation Guide 17. For connection of PPPoE + Dynamic IP type: if your ISP has provided the address of the DNS server, in the IP section, deselect the Obtain DNS server addresses automatically checkbox and fill in the Primary DNS server field.
- Page 30 DVG-N5402G/ACF Quick Installation Guide 18. For connection of PPTP + Static IP or L2TP + Static IP type: in the IP section, fill in the IP Address, Netmask, Gateway IP address, and Primary DNS server fields. Then in the VPN section, enter...
- Page 31 DVG-N5402G/ACF Quick Installation Guide 19. For connection of PPTP + Dynamic IP or L2TP + Dynamic IP type: if your ISP has provided the address of the DNS server, in the IP section, deselect the Obtain DNS server addresses automatically checkbox and fill in the Primary DNS server field.
-
Page 32: Example Of Connection Via Vlans
DVG-N5402G/ACF Quick Installation Guide Example of Connection via VLANs If your ISP provides: access to the Internet via the VLAN with the tag (VLAN ID) 2, the • PPPoE connection type, login user, password user_password, access to IPTV service via the VLAN with the tag (VLAN ID) 10, •... - Page 33 DVG-N5402G/ACF Quick Installation Guide 13. Click the Add button. 14. In the Name field, enter a name for the new group (IPTV). 15. From the Type drop-down list, select the Bridge value. 16. From the Tagged port drop-down list, select the internet value.
-
Page 34: Configuring Local Area Network
DVG-N5402G/ACF Quick Installation Guide Configuring Local Area Network Go to the Net / LAN page. If needed, change the IP address of the router's LAN interface and the mask of the local subnet in the IP Address and Netmask fields. If you need to change the IPv6 address of... - Page 35 DVG-N5402G/ACF Quick Installation Guide 3. IPv6 address assignment. By default, the devices of the LAN automatically assign IPv6 addresses to themselves (the Stateless value is selected from the Mode drop-down list in the IPv6 address assignment section). If the devices of the LAN do not support...
- Page 36 DVG-N5402G/ACF Quick Installation Guide Voice Functions of Router Configuring VoIP via SIP 1. Connect the phone to an FXS port of the router using an RJ-11 cable. 2. Go to the VoIP / Basic settings page. If your provider requires to specify a domain name upon registration on the SIP proxy server, in the Basic settings section, fill in the SIP domain name field.
- Page 37 DVG-N5402G/ACF Quick Installation Guide Communication Using PSTN Connect an RJ-11 cable to the Line port of the router and a phone jack. If the router is connected to a PSTN line, an incoming call comes to the phone connected to the Phone 1 port.
- Page 38 DVG-N5402G/ACF Quick Installation Guide Configuring Guest Wireless Network 1. Go to the Wi-Fi / Basic settings page of the band for which you configure the guest network. 2. Select 2 from the MBSSID drop-down list. 3. Click the Apply button.
- Page 39 DVG-N5402G/ACF Quick Installation Guide 11. Enter a key (a password that will be used to access your guest network) in the Encryption Key PSK field. Use digits and Latin characters. 12. Select the AES value from the WPA Encryption drop-down list.
-
Page 40: Saving Settings To Non-Volatile Memory
DVG-N5402G/ACF Quick Installation Guide Saving Settings to Non-volatile Memory In order to avoid losing the new settings upon hardware reboot (accidental or intentional power-off of the device), it is recommended to save the settings to the non-volatile memory of the router. -
Page 41: Specifications
DVG-N5402G/ACF Quick Installation Guide SPECIFICATIONS Hardware · 1000BASE-X SFP WAN port Interfaces · 4 10/100/1000BASE-T LAN ports · 2 RJ-11 FXS ports · 1 RJ-11 PSTN (lifeline) port · USB 2.0 port · POWER LEDs · 2.4GHz · 5GHz ·... - Page 42 DVG-N5402G/ACF Quick Installation Guide Phone · Individual account per port General SIP Features · Invite with Challenge · Register by IP address or domain name of SIP server · Backup proxy support · Support of DHCP option 120 · RFC3986 SIP URI format support ·...
- Page 43 DVG-N5402G/ACF Quick Installation Guide Software · WAN connection types · · PPPoE · IPv6 PPPoE · PPPoE Dual Stack · Static IP / Dynamic IP · Static IPv6 / Dynamic IPv6 · PPPoE + Static IP / Dynamic IP ·...
- Page 44 DVG-N5402G/ACF Quick Installation Guide Software · USB modem USB interface functions Auto connection to available type of supported network (4G/3G/2G) Auto configuration of connection upon plugging in USB modem Enabling/disabling PIN code check, changing PIN code · USB storage File browser...
- Page 45 DVG-N5402G/ACF Quick Installation Guide Wireless Module Parameters · Wireless connection · WPA/WPA2 (Personal/Enterprise) security · МАС filter · WPS (PBC/PIN) · Support of client mode Advanced functions · WMM (Wi-Fi QoS) · Information on connected Wi-Fi clients · Advanced settings ·...
- Page 46 DVG-N5402G/ACF Quick Installation Guide Wireless Module Parameters · Receiver sensitivity 802.11a (typical at PER < 10% at room temperature 25 °C) -87dBm at 6Mbps -86dBm at 9Mbps -84dBm at 12Mbps -82dBm at 18Mbps -79dBm at 24Mbps -76dBm at 36Mbps -71dBm at 48Mbps -70dBm at 54Mbps ·...
- Page 47 DVG-N5402G/ACF Quick Installation Guide Wireless Module Parameters 5GHz, HT20 -86dBm at MCS0/8 -83dBm at MCS1/9 -81dBm at MCS2/10 -77dBm at MCS3/11 -75dBm at MCS4/12 -70dBm at MCS5/13 -69dBm at MCS6/14 -68dBm at MCS7/15 5GHz, HT40 -83dBm at MCS0/8 -80dBm at MCS1/9...
-
Page 48: Physical Parameters
· Alcatel X500 · D-Link DWM-152C1 · D-Link DWM-156A6 · D-Link DWM-156A7 · D-Link DWM-156C1 · D-Link DWM-157B1 · D-Link DWM-157B1 (Velcom) · D-Link DWM-158D1 · D-Link DWR-710 · Huawei E150 · Huawei E1550 · Huawei E156G · Huawei E160G ·... - Page 49 DVG-N5402G/ACF Quick Installation Guide Supported USB modems · Airplus MCD-650 CDMA · Airplus MCD-800 · AnyDATA ADU-300A · AnyDATA ADU-500A · AnyDATA ADU-510A · Huawei EC306 · ZTE AC5710 · ZTE AC5730 · Huawei E3131 · Huawei E3272 · Huawei E3351 ·...
-
Page 50: Safety Rules And Conditions
DVG-N5402G/ACF Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents. -
Page 51: Technical Support
Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
