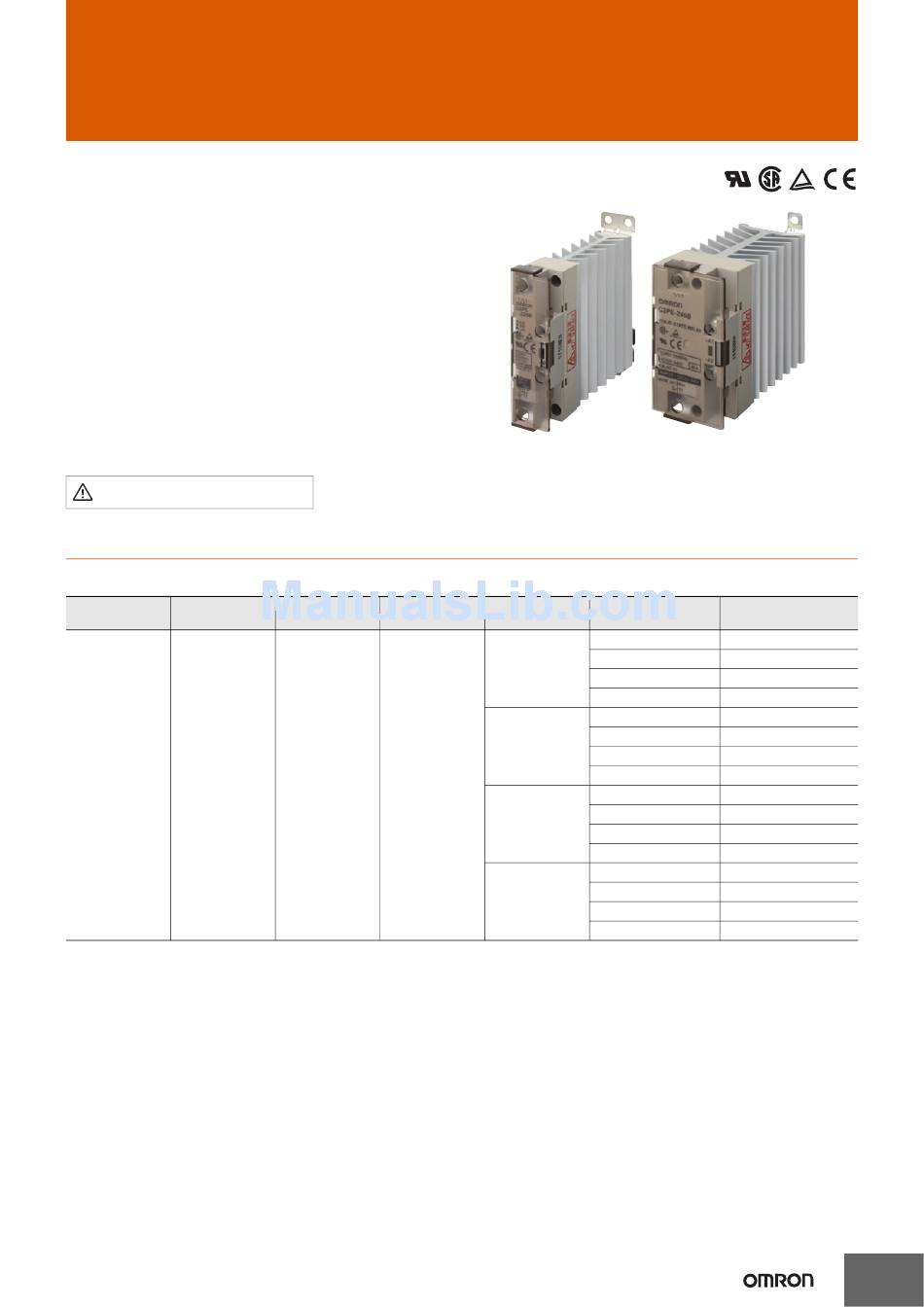

Solid State Relays for Heaters
G3PE-Single-phase
Compact, Slim-profile SSRs with Heat
Sinks. Models with No Zero Cross for
a Wide Range of Applications.
• RoHS compliant.
• Models also available with no zero cross
• Surge pass protection improved surge dielectric strength for
output currents. (OMRON testing)
• Compact with a slim profile.
• Mount to DIN Track or with screws.
• Conforms to UL, CSA, and EN standards (TÜV certification).
Refer to Safety Precautions for All G3PE
Models.
Ordering Information
List of Models
Number of
Insulation
phases
method
Phototriac
Single-phase
coupler
* The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering
Data on page 3.
Operation
Rated input
indicator
voltage
Yes (yellow)
12 to 24 VDC
Zero cross
Applicable load *
function
15 A, 100 to 240 VAC G3PE-215B DC12-24
25 A, 100 to 240 VAC G3PE-225B DC12-24
Yes
35 A, 100 to 240 VAC G3PE-235B DC12-24
45 A, 100 to 240 VAC G3PE-245B DC12-24
15 A, 100 to 240 VAC G3PE-215BL DC12-24
25 A, 100 to 240 VAC G3PE-225BL DC12-24
No
35 A, 100 to 240 VAC G3PE-235BL DC12-24
45 A, 100 to 240 VAC G3PE-245BL DC12-24
15 A, 200 to 480 VAC G3PE-515B DC12-24
25 A, 200 to 480 VAC G3PE-525B DC12-24
Yes
35 A, 200 to 480 VAC G3PE-535B DC12-24
45 A, 200 to 480 VAC G3PE-545B DC12-24
15 A, 200 to 480 VAC G3PE-515BL DC12-24
25 A, 200 to 480 VAC G3PE-525BL DC12-24
No
35 A, 200 to 480 VAC G3PE-535BL DC12-24
45 A, 200 to 480 VAC G3PE-545BL DC12-24
CSM_G3PE-Single-phase_DS_E_2_1
Model
1
Advertisement
Table of Contents
Related Manuals for Omron G3PE-SINGLE-PHASE
Summary of Contents for Omron G3PE-SINGLE-PHASE
-
Page 1: Ordering Information
35 A, 200 to 480 VAC G3PE-535BL DC12-24 45 A, 200 to 480 VAC G3PE-545BL DC12-24 * The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data on page 3. -
Page 2: Specifications
(at 400 VAC) (at 400 VAC) (at 400 VAC) (at 400 VAC) * The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data on page 3. Characteristics Model G3PE... -
Page 3: Engineering Data
−30 −20 Ambient temperature (°C) Ambient temperature (°C) Inrush Current Resistance: Non-repetitive Keep the inrush current to below the inrush current resistance value (i.e., below the broken line) if it occurs repetitively. G3PE-215B(L), G3PE-515B(L) G3PE-225B(L), G3PE-525B(L) G3PE-235B(L), G3PE-245B(L) G3PE-535B(L), G3PE-545B(L) - Page 4 G3PE-Single-phase Close Mounting (3 or 8 SSRs) G3PE-215B(L) G3PE-225B(L) G3PE-235B(L) G3PE-245B(L) 3 Relays 3 Relays 3 Relays 3 Relays 8 Relays 8 Relays 8 Relays 8 Relays −40 −20 −40 −20 −40 −20 −40 −20 80 100 80 100 80 100 80 100 Ambient temperature (°C)
-
Page 5: Solid State Relays
G3PE-Single-phase Dimensions Note: All units are in millimeters unless otherwise indicated. Solid State Relays G3PE-215B(L) Two, ±0.2 4.6 dia. G3PE-225B(L) Two, M4 G3PE-515B(L) G3PE-525B(L) 100 max. ±0.2 Two, M3.5 4.6 × 5.6 elliptical hole 22.5 max. Note: Without terminal cover. - Page 6 PERFORMANCE DATA Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.
- Page 7 *1. The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data on page 5. *2. The applicable DIN Track is the TR35-15Fe (IEC 60715). For details, refer to the mounting information in the Safety Precautions for All G3PE Models.
- Page 8 45 A, 200 to 480 VAC G3PE-545B-2H DC12-24 * The rated load current depends on the heat sink or radiator that is mounted. It also depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature. Accessories (Order Separately) Heat Sink Heat resistance Rth (s-a) (°C/W)
- Page 9 Data on page 5. *2. Applicable Load Use the following formula to calculate the maximum total capacity of a heater load for a three-phase balanced load with delta connections. Maximum load capacity = Load current × Load voltage × √3 Example: 15 A ×...
-
Page 10: Heat Sinks
1.45 kg 1.25 kg 1.65 kg 1.45 kg 2.0 kg 1.65 kg * The leakage current of phase S will be approximately √3 times larger if the 2-element model is used. Models with Externally Attached Heat Sinks Model G3PE- G3PE- G3PE-... - Page 11 G3PE-Three-phase Engineering Data Input Voltage vs. Input Impedance and Input Voltage vs. Input Current G3PE-2@@B-@@ G3PE-5@@B-@@ Ta = 25°C Input current Input current Input impedance Input impedance Input voltage (V) Input voltage (V) Load Current vs. Ambient Temperature Models with Built-in Heat Sinks...
- Page 12 G3PE-Three-phase Inrush Current Resistance: Non-repetitive Keep the inrush current to below the inrush current resistance value (i.e., below the broken line) if it occurs repetitively. G3PE-215B-3(N)(H) G3PE-225B-3(N)(H), G3PE-525B-3(N)(H) G3PE-235B-3(N)(H), G3PE-535B-3(N)(H) G3PE-215B-2(N)(H) G3PE-225B-2(N)(H), G3PE-525B-2(N)(H) G3PE-235B-2(N)(H), G3PE-535B-2(N)(H) G3PE-515B-3(N)(H), G3PE-245B-3(N)(H), G3PE-545B-3(N)(H) G3PE-515B-2(N)(H), G3PE-245B-2(N)(H), G3PE-545B-2(N)(H)
- Page 13 G3PE-Three-phase Dimensions Note: All units are in millimeters unless otherwise indicated. Solid State Relays Models with Two, 4.6-dia. mounting holes Four, 8 dia. DIN Track Mounting Two, M3.5 G3PE-215B-3N G3PE-215B-2N 84.5 G3PE-225B-2N max. max. Two, R2.3 mounting G3PE-515B-3N holes G3PE-515B-2N G3PE-525B-2N 80 max.
-
Page 14: Din Track Mounting
Six, M5 80 max. 32.2 Note: Without terminal cover. Note: With terminal cover. Mounting Holes ±0.3 max. 23.2 19.1 120 max. ±0.3 Four, 4.5 dia. or M4 Terminal Arrangement/Internal Circuit Diagram G3PE-235B-3N G3PE-245B-2N G3PE-535B-3N G3PE-545B-2N L1/R L2/S L3/T L1/R L2/S L3/T... - Page 15 Two, M3.5 Six, M4 80 max. 4.6 × 5.6 elliptical hole 32.2 Note: With terminal cover. Note: Without terminal cover. DIN Track or screw mounting Mounting Holes Two, 4.5 dia. or M4 max. 23.2 19.1 ±0.3 55 max. Terminal Arrangement/Internal Circuit Diagram ±0.3...
-
Page 16: Screw Mounting
80 max. (G3PE-@35B-2) Six, M4 32.2 (G3PE-@25B-3) 110.5 max. Note: Without terminal cover. Note: With terminal cover. Mounting Holes Four, 4.5 dia. or M4 For screw mounting only 23.2 max. 19.1 ±0.3 70 max. ±0.3 Terminal Arrangement/Internal Circuit Diagram G3PE-225B-3... - Page 17 L2/S L3/T L1/R L2/S L3/T ±0.3 T1/U T2/V T3/W T1/U T2/V T3/W (−) (−) Models with Externally Attached Heat Sinks Four, 8 dia. Four, 4.5 dia. G3PE-215B-3H G3PE-215B-2H 8 dia. G3PE-225B-3H 4.5 dia. G3PE-225B-2H 80 84.5 max. G3PE-235B-3H G3PE-235B-2H G3PE-245B-3H Two, M3.5...
- Page 18 G3PE-Three-phase Accessories (Order Separately) Heat Sink Heat Sink Y92B-P50 (Mounts to DIN Track.) Y92B-P100 For G3PE-215B-2H and For G3PE-215B-3H, G3PE-515B-2H G3PE-225B-2H, G3PE-515B-3H, and G3PE-525B-2H Mounting Holes Four, M4 Mounting Holes 4.6 dia. Four, 4.5 dia. or M4 Two, 4.5 dia. or M4 80.5...
- Page 19 PERFORMANCE DATA Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.
