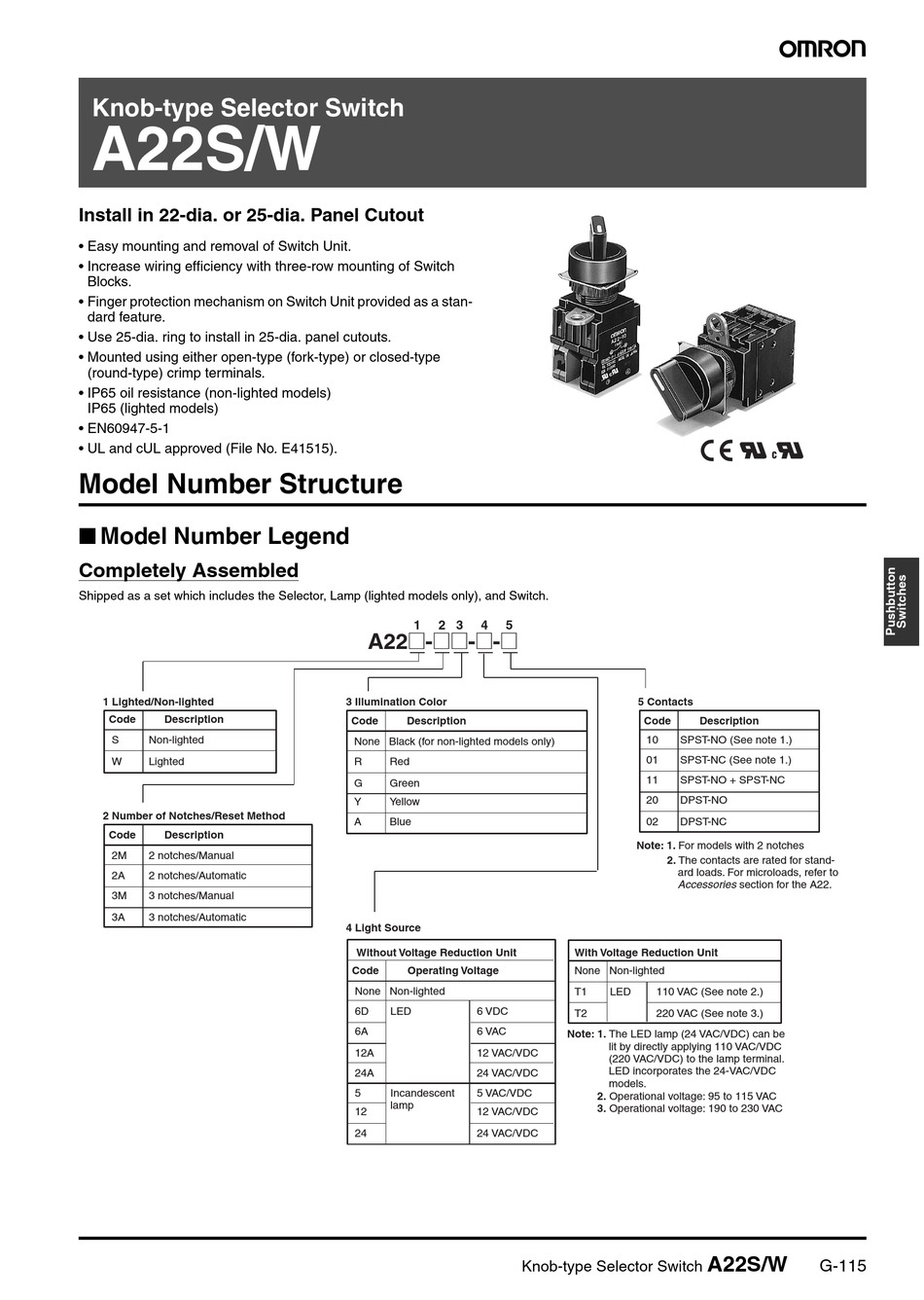

Knob-type Selector Switch
A22S/W
Install in 22-dia. or 25-dia. Panel Cutout
• Easy mounting and removal of Switch Unit.
• Increase wiring efficiency with three-row mounting of Switch
Blocks.
• Finger protection mechanism on Switch Unit provided as a stan-
dard feature.
• Use 25-dia. ring to install in 25-dia. panel cutouts.
• Mounted using either open-type (fork-type) or closed-type
(round-type) crimp terminals.
• IP65 oil resistance (non-lighted models)
IP65 (lighted models)
• EN60947-5-1
• UL and cUL approved (File No. E41515).
Model Number Structure
■ Model Number Legend
Completely Assembled
Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.
1 Lighted/Non-lighted
Code
Description
S
Non-lighted
W
Lighted
2 Number of Notches/Reset Method
Code
Description
2M
2 notches/Manual
2A
2 notches/Automatic
3M
3 notches/Manual
3A
3 notches/Automatic
1
2 3
4
5
A22@-@@-@-@
3 Illumination Color
Code
Description
None Black (for non-lighted models only)
R
Red
G
Green
Y
Yellow
A
Blue
4 Light Source
Without Voltage Reduction Unit
Code
Operating Voltage
None Non-lighted
6D
LED
6 VDC
6A
6 VAC
12A
12 VAC/VDC
24A
24 VAC/VDC
5
Incandescent
5 VAC/VDC
lamp
12
12 VAC/VDC
24
24 VAC/VDC
5 Contacts
Code
10
SPST-NO (See note 1.)
01
SPST-NC (See note 1.)
11
SPST-NO + SPST-NC
20
DPST-NO
02
DPST-NC
Note: 1. For models with 2 notches
2. The contacts are rated for stand-
ard loads. For microloads, refer to
Accessories section for the A22.
With Voltage Reduction Unit
None Non-lighted
T1
LED
110 VAC (See note 2.)
T2
220 VAC (See note 3.)
Note: 1. The LED lamp (24 VAC/VDC) can be
lit by directly applying 110 VAC/VDC
(220 VAC/VDC) to the lamp terminal.
LED incorporates the 24-VAC/VDC
models.
2. Operational voltage: 95 to 115 VAC
3. Operational voltage: 190 to 230 VAC
Knob-type Selector Switch
Description
A22S/W
G-115
