2
Intended use
The device is intended to be used for the following garage door openers models:
LM60EVFA; LM60EVFA-GB; LM80EVFA; LM80EVFA-GB; LM100EVFA; LM100EVFA-GB; LM130EVFA.
For further information see compatibility list on www.liftmaster.eu
Any improper use of the device could increase the risk of accidents. The manufacturer assumes no liability for such usage.
3
Product Description
The ADP-1EVO enables the specified LiftMaster garage door openers only to work with defined Door in Door Switches, Safety edges and two pairs of
LiftMaster photo eyes.
4
Before you begin
The instruction must be read and understood before installing the device. All guidelines must be followed.
5
Compatible Accessories
The floowing 8,2 kOhm Door-in-Door switches may be used:
Fraba:
ENS-S 8200
Bircher:
Transmitter: RFGate 2.1.W2.S
Receiver: XRF-R.1 or XRF-R.2
JCM:
Transmitter: RC3 TF868
Receiver: RB3 R868
Safety edge 8,2 kOhm connection:
ASO: SENTIR safety edge.
Photo eyes connection:
LiftMaster photo eyes.
For further information see compatibility list on www.liftmaster.eu
6

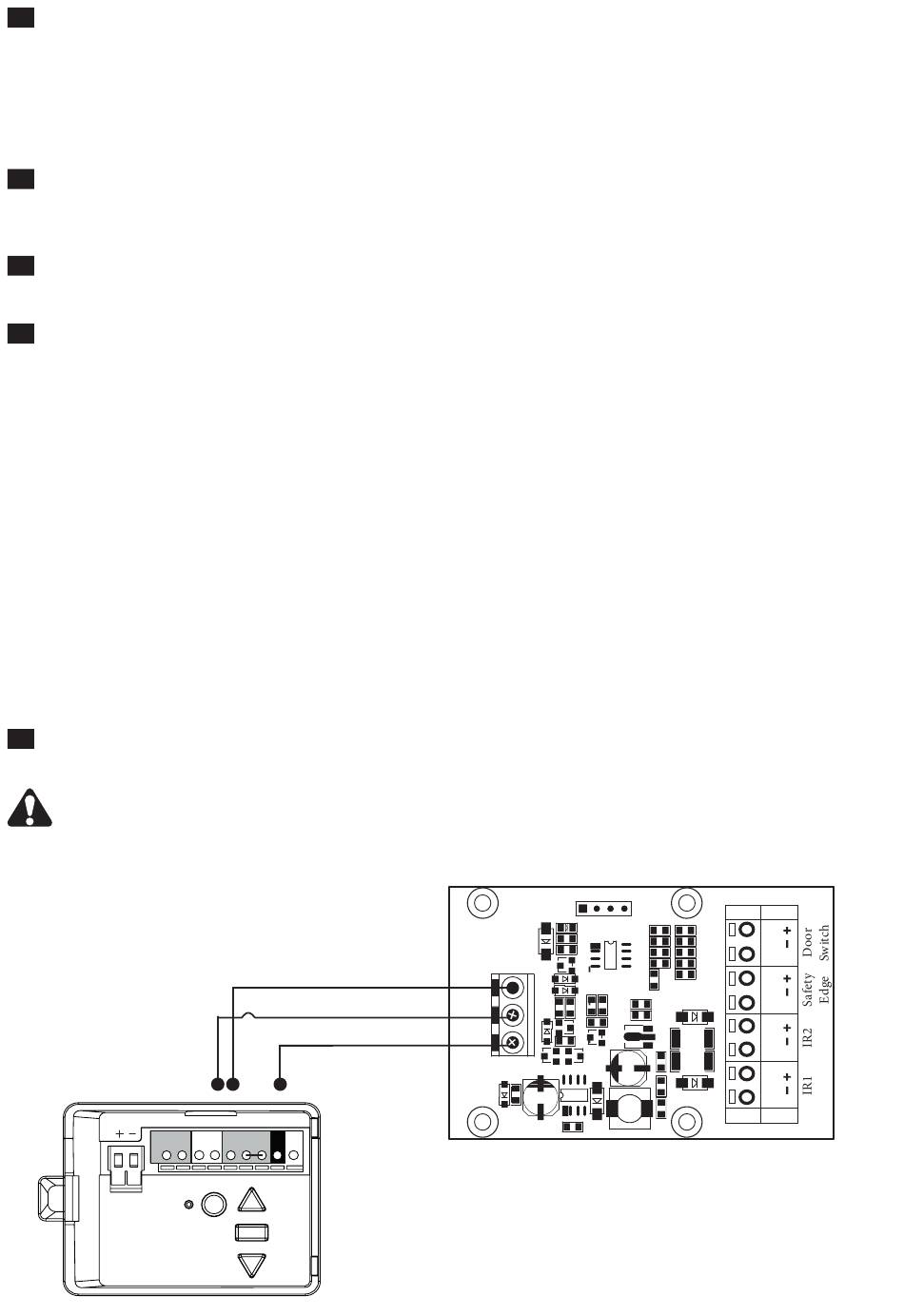

ADP-1EVO Connection to the Opener
Important instructions for a safe installation must be observed. Incorrect installation can cause serious injury.
Before performing any installation, the garage door opener should be separated from the electric power supply. The ADP-1EVO is delivered with a
prepared connection cable to be connected to the garage door opener. The device shall be installed next to the garage door opener.
0 1
30 VDC
gray
GND
white
24V
black
2
3
6
2 2
3 4 5 6
7
DATA
IR
+
GND
V IN
Connect the wires to the garage door opener
