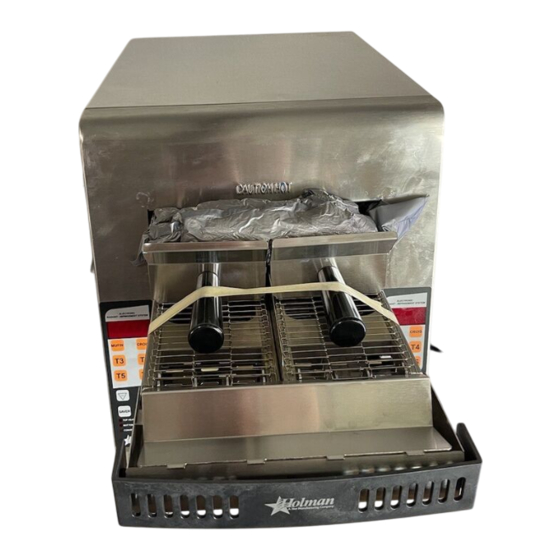

Holman IRCS2-SBK Installation Instructions Manual

Conveyor toasters

Advertisement

Quick Links

These symbols are intended to alert the
user to the presence of important operating
and maintenance instructions in the manual
accompanying the appliance.
www.star-mfg.com/scripts/manuals.aspx
to obtain this units installation & operations
manual, warranty & other documents.
Using any part other than genuine Holman factory supplied parts
relieves the manufacturer of all liability.
Holman reserves the right to change specifications and product
design without notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions or replacements
for previously purchased equipment.
Due to periodic changes in designs, methods, procedures, policies
and regulations, the specifications contained in this sheet are subject
to change without notice. While Holman Manufacturing exercises
good faith efforts to provide information that is accurate, we are
not responsible for errors or omissions in information provided
or conclusions reached as a result of using the specifications.
By using the information provided, the user assumes all risks in
connection with such use.
CAUTION
GENERAL SAFETY INFORMATION
This equipment is designed and sold for commercial use only by
personnel trained and experienced in its operation and is not sold
for consumer use in and around the home nor for use directly by
the general public in food service locations.
Before using your new equipment, read and understand all the
instructions & labels associated with the unit prior to putting it into
operation. Make sure all people associated with its use understand
the units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both
visible and concealed. This unit has been tested and carefully
packaged to insure delivery of your unit in perfect condition.
If equipment is received in damaged condition, either apparent or
concealed, a claim must be made with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until
after equipment is unpacked, a request for inspection of concealed
damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials
for inspection. The carrier will make an inspection and will supply
necessary claim forms.
Conveyor Toasters Installation Instructions
Go to:
NOTICE
IL2707
GENERAL INSTALLATION INFORMATION
The unit was shipped fully assembled and ready to plug into a
standard outlet specified for its voltage and amp draw. If improper
electrical supply is determined, contact a qualified electrician prior
to using the unit. Removal and replacement of the power cord
and plug will void the warranty. For assistance, contact your local
authorized service agent for service or required maintenance.
Level unit using the adjustable feet under the unit (approximately
1/2" adjustment).
Before using the unit for the first time, wipe down the exterior with
a damp cloth.
Allow enough space around the toaster for adequate ventilation.
Do not operate the unit without the crumb tray properly positioned.
Overheating and poor toasting may occur. Read all labels on the
unit and follow their instructions.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative or a local
service company for service or required maintenance.
Go to www.star-mfg.com/scripts/manuals.aspx to find a service
agent near you. Replacement cord sets must be purchased from
Star Manufacturing International, Inc. or our authorized agents.
Should you need any assistance regarding the operation or
maintenance of any Holman equipment; write, phone, fax or
e-mail our service department. In all correspondence mention
the model number and the serial number of your unit, along with
the voltage.
Business Hours: 8 am to 4:30 p.m. Central Standard Time
Telephone:
Fax:
E-mail:
Website:
Mailing Address: Star International Holdings Inc., Company
IRCS2-SBK
Conveyor Toasters
Electronic Controls
(877) 242-0270
(314) 781-2714
Parts@star-mfg.com
Service@star-mfg.com
Warranty@star-mfg.com
www.star-mfg.com
10 Sunnen Drive
St. Louis, MO 63143
U.S.A.
2M-Z17824, Rev. A 12/19/2013
