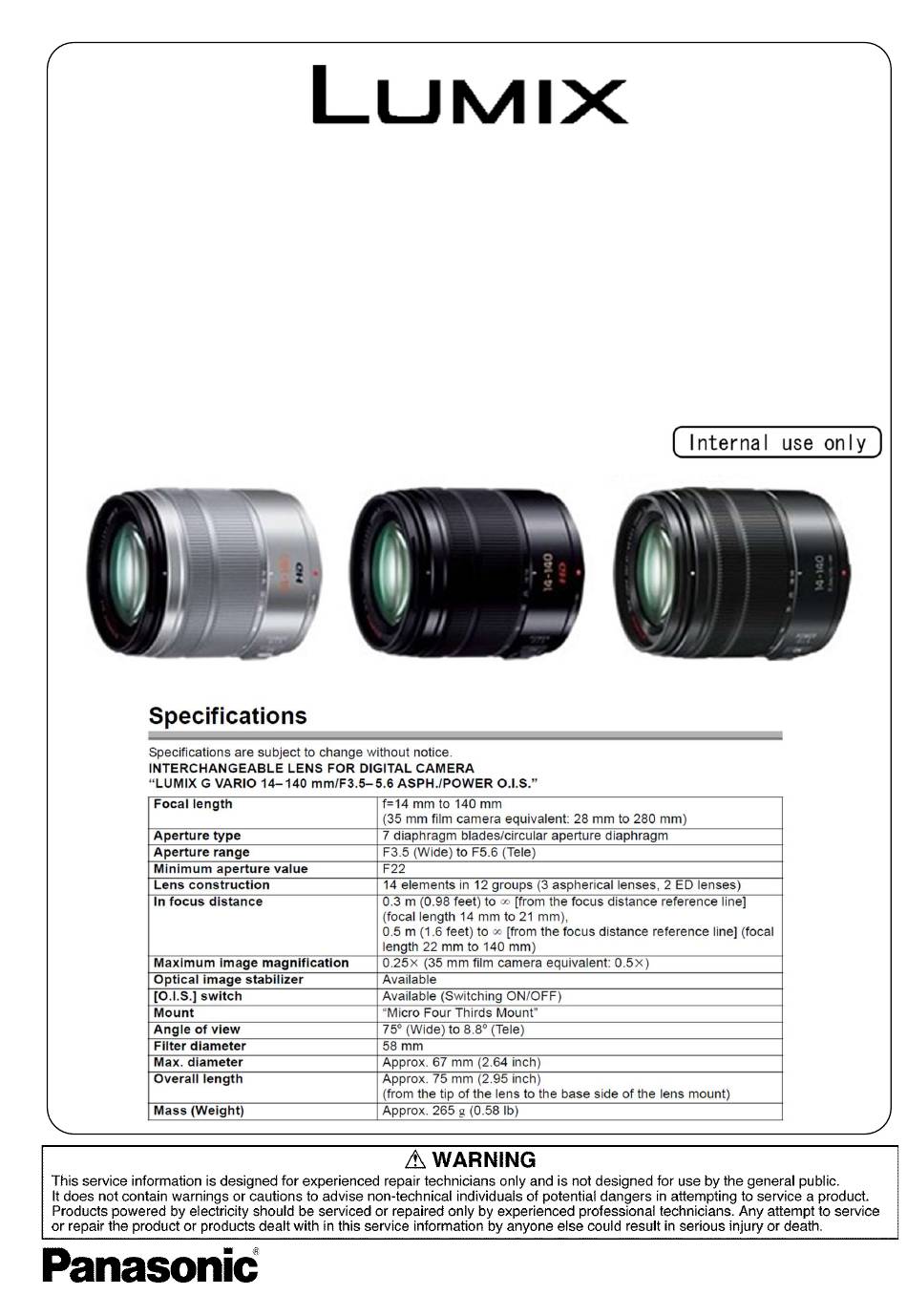

- Page 1 H-FS14140 Component Repair Service Training Manual Ver.2.0 - KA ⓒ Panasonic Corporation 2015 Unauthorized copying and distribution is a violation of law.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE 1 Service Navigation ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1.1. Introduction ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1.2. Important Notice ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1.2.1. Distinction Method of Mode [-K] and Mode [-KA] ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1.2.2. Distinction Method of Production Area ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 2 Exploded View ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 2.1. Lens Unit ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 2.2. -
Page 3: Service Navigation
1 Service Navigation 1.1. Introduction This manual contains technical information, which allow service personnel's to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. 1.2. Important Notice This manual is written for Micro Four Thirds Lens H-FS14140. As you may know, lens hates dust, soil, sand, fingerprint. -
Page 4: Distinction Method Of Production Area
1.2.2. Distinction Method of Production Area Made in Japan Made in China "Made in Japan" with printing "Made in Japan" No printing Made in Japan Made in China Model No. Supplier Name Model No. Supplier Name H-FS14140E-S AP-INBD H-FS14140E9S PAVCX H-FS14140E-K AP-INBD H-FS14140E9K... -
Page 5: Exploded View
2 Exploded View 2.1. LENS UNIT CAM BARREL... -
Page 6: Cam Barrel
2.2. CAM BARREL... -
Page 7: Replacement Parts List
3 Replacement Parts List Definition of Parts Supplier All parts are supplied from PAVCX. Ref.No. Part No. Part Name & Description Remarks VDW2635 FILTER RING SHADING FRAME DVOR1092Z LENS MOUNT CONTACT UNIT VEJ2336-A 204 - 207 VMG1855 FLOATING RUBBER DVYE1106Z REAR FRAME UNIT 1 (-S) DVYE1105Z... -
Page 8: Service Fixture & Tools
4 Service Fixture & Tools The following Fixture and Tools are used for checking and servicing this unit. NOTE: There are two kinds of methods for resolution check & adjustment. One is the “Simple resolution checker” method, and the other one is “Lens projector" method. Choose one of the methods and proceed it. ... -
Page 9: Maintenance
5 Maintenance 5.1. Dust / Dirt on the outer casing part(s) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up the outer casing part with the dry fuzz-free cloth. 5.2. -
Page 10: Disassembly And Assembly Instructions
6 Disassembly and Assembly Instructions 6.1. Disassembly Instructions 6.1.1 Disassembly Flow Chart Lens Unit 3 Shading Frame 4 L Mount Unit Rear Frame Unit OIS Switch Lens Mount Contact Unit Lens P.C.B. Unit Floating Rubber Zoom Drive Pin Ring Mount Base Unit 8 Wave Washer Attention If you do the disassemble procedure after this,... -
Page 11: Disassembly Procedure
6.1.2. Disassembly Procedure 6.1.2.3. Removal of the Shading Frame Important 1. Remove 2 screws (B) and the Shading Frame. It must be performed inside of satisfied clean level. (Satisfied clean level: Less than class 10,000 (Federal Standard 209D)) 6.1.2.1. Removal of the Decoration Ring 1. - Page 12 6.1.2.5. Removal of the Rear Frame Unit and 6.1.2.6. Removal of the Lens P.C.B. Unit and the OIS Switch the Lens Mount Contact Unit 1. Remove 3 screws (E) and disconnect 1 connector. 1. Disconnect 4 connectors. 2. Remove the Rear Frame Unit. 2.
- Page 13 6.1.2.10. Removal of the Direct Frame 2. Remove 3 screws (F) and Ring Mount Base Unit. Shading Sheet 1. Direct Frame Shading Sheet is sticked on the Cam Barrel. 2. Put the sheet so that the lens glass is fullty covered. 3.
- Page 14 6.1.2.12. Removal of the 3rd Lens Frame3 Unit 1. Remove the 3rd Lens Frame3 Unit. 3rd lens frame3 unit 6.1.2.13. Removal of the 5th Lens Frame2 Unit 1. Remove the 5th Lens Frame2 Unit. 5th lens frame2 unit Cam Barrel Unit...
-
Page 15: Assembly Instructions
6.2. Assembly Instructions 6.2.1 Assembly Flow Chart 5th Lens Frame2 Unit Come Barrel 2 3rd Lens Frame3 Unit 3 2nd Lens Frame2 Unit Direct Frame Shading Sheet 5 1st Lens Holder 6 Wave Washer Zoom Drive Pin Ring Mount Base Unit Lens Mount Contact Unit Lens P.C.B. -
Page 16: Assembly Procedure
6.2.2. Assembly Procedure 6.2.2.3. Removal of the 2nd Lens Frame Unit Important 1. Install the 2nd Lens Frame Unit after aligning When tightening the screw, use a torque driver phase mark ( ). (RFKZ0542) by ordering the screwing order with 2nd Lens Frame Unit specified torque described in each step. - Page 17 6.2.2.5. Installation of the 1st Lens Holder and 3. Install the Zoom Drive Pin. the Cam Barrel 4. Tighten 2 screws (G) in numerical order 1. Align phase mark ( ) and rotate the Cam Barrel Unit by using the torque driver with specified torque. clockwise when you watch it from back.
- Page 18 6.2.2.9. Removal of the OIS Switch and 6.2.2.10. Installation of the L Mount Unit the Rear Frame Unit 1. Install the L Mount Unit. 1. Hook the upperside hook. 2. Tighten 1 screw (C) and 3 screws (D) in numerical Then, push the underside hook into.
- Page 19 6.2.2.11. Installation of the Shading Frame 6.2.2.13. Installation of the Decoration Ring 1. Install the Shading Frame. 1. Please insert the dent of the Decoration Ring to 2. Tighten 2 screws (B) in numerical order convex of the Filter Ring. by using the torque driver with specified torque.
-
Page 20: Adjustment
7 Adjustment 7.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). Necessary Adjustment Replaced Part Electrical 1st Lens Frame Adjustment... -
Page 21: Flow Chart For Adjustment
7.3. Flow Chart for Adjustment 1st Lens Frame Adjustment There are 2 kinds of methods to align the 1st lens frame unit for this lens unit. Select one of the following method, then proceed it. (If you choose one & performed it, skip the other one.) Simple Resolution Checker method ☞... -
Page 22: Procedure For Adjustment
7.4. Procedure for Adjustment IMPORTANT (About 1st lens frame adjustment): There are 2 kinds of methods to align the 1st lens frame unit for this lens unit. Select one of the following method, then proceed it. (If you choose one & performed it, skip another one.) Simple Resolution Checker method ☞... -
Page 23: Equipment And Chart Setting
7.4.1-2. Equipment and Chart Setting ①Still mode: (For inspection, Adjustment repeating "Take a picture - Inspection -Adjustment" as a cycle.) (2) Checking Chart (4) USB cable (1) LED lamps (5) PC Software (3) Lens and Master Body (e.g.DC-GH5) ②Real Time mode: (Adjusted results are reflected and displayed in real time.) (2) Checking Chart (6) Monitor... -
Page 24: Assemble Guide For Checking Chart (Sukz000059)
7.4.1-3. Assemble guide for Checking Chart (SUKZ000059) <Preparation> - Checking Chart (Part No. SUKZ000059) that consisted of 5 charts No.1 - No.5 and 4 black charts. - White plastic matte board /Size: 1,440mm(W) x 960mm(H) or over Guide Line - Length: 500mm or over - Thickness: 5mm or over No.2 No.5... -
Page 25: Master Body Setting And Position
7.4.1-4. Master Body Setting and Position 7.4.1-4.1 Master Body Setting - Perform cancellation of the Initial Settings. (Refer to the service manual for the master body.) - Reset the settings. (it is available on setup menu in user's GUI menu.) - Set the function parameter to below setting Setting Item Setting Value... - Page 26 For more accurate positioning, it is able to check the tilting condition of the checking chart by string down some kinds of the "plumb bob" from upper side. Also, to check the positioning of the Checking chart and Master body are perfect, put the hand mirror to the center of the Checking chart .
-
Page 27: Lens Unit Setting
7.4.1-5. Lens Unit Setting - Set the switch/dial to the following condition. Note: Make sure to confirm the aperture value when zoom position is changed. (Maximum aperture (TELE:F5.6 / WIDE: F3.5) 7.4.1-6. PC Software 7.4.1-6.1 Required PC Specification - OS ：... -
Page 28: Simple Resolution Inspection With Still Mode
7.4.1-7. Simple Resolution Inspection with Still Mode Procedure of perfuming inspection with still mode ③ ② ① Graphic indicator Select lens model with Zoom. H-FS14140 for TELE : Setting_MFTS14-140_F3.5-5.6_T H-FS14140 for WIDE : Setting_MFTS14-140_F3.5-5.6_W Click “Shooting” button to take a photo. *Before taking a photo, focus the chart by AF ON button or shutter release button of Camera body. -
Page 29: Simple Resolution Real Time Adjustment
7.4.1-8. Simple Resolution Real Time Adjustment The Simple Resolution Real Time Adjustment is useful for models which are equipped with adjustment pins on the 1st Lens frame unit. When rotating the 2 Adjustment pins with Torx Driver (RFKZ0609), corresponding results are displayed on the PC monitor in real time. -
Page 30: 1St Lens Frame Adjustment (Projector Method)
7.4.2. 1st Lens Frame Adjustment (Projector method) IMPORTANT (About 1st lens frame adjustment): There are 2 kinds of methods to align the 1st lens frame unit for this lens unit. If you performed "7.4.1. 1st Lens Frame Adjustment (Simple Resolution Checker method)", skip this section and move on to the "7.4.3. -
Page 31: Pre-Setting
7.4.2-2. Pre-setting Prior to the 1st Lens Frame Adjustment, setup service equipment as follows: 1. Attach the lens adaptor (SUKZ000031) to the lens projector (SUKZ000030). Note: - Make sure that Chart inside and out / ups and downs is right position. (At a time of shipment, the Projector Chart (SUKZ000032) is aligned and fixed to the Lens adaptor (SUKZ000031) , and are supplied as a unit, therefore, do not disassemble them.) - Confirm that Chart base point line matches with Projector mount base point line and then tighten screw. -
Page 32: 1St Lens Frame Adjustment
7.4.2-4. 1st Lens Frame Adjustment 1. Rotate Zoom Ring (Repair Lens) until fully TELE side. 2. Set General-Purpose Camera as next and Focus Subject in centre using MF Ring. - Mode Dial : Aperture-Priority AE Mode - Focus : MF - ISO : 200 - OIS : OFF - Aperture : Full Open (Set aperture to... -
Page 33: Electrical Adjustment
7.4.3. Electrical Adjustment Perform the Electrical Adjustment using PC with Adjustment Software. As for Adjustment conditions/procedure, consult the "Adjustment Manual" which is available in Adjustment Software. Note: - Download the software package from TSN website, then install the software. - The first time, perform all adjustments. - The second time onwards, only performing BF adjustment would be enough. -
Page 34: Checking Point And Observation Point
7.4.4-1. Checking point and observation point By visual check : No partial out-of-focus are found on the entire picture. The appearance of perceived resolution of the entire images are well balanced. Observation point : Four corners(Especially the wedge-shaped mark closed to the angle of view 0.7 area.) RP Chart M-Size 300x400mm Observation point (SUKZ000035) -
Page 35: Gluing
7.4.5. Gluing 1. After all work completed, glue 2 Adjustment Pins, and assembling the Dust Proof Ring and Filter Ring, Decoration Ring. 7.4.6. Procedure of Visual Checking Preparation: Prepare the RP Chart M size (SUKZ000035) and RP Chart L-Size (SUKZ000034 or SUKZ000068). Attach the repaired Lens on master camera body. -
Page 36: Revision History
8 Revision History Ver. Date History 2015.10.01 ・First Issue 2016.03.16 ・Additional Adjustment 2018.10.05 ・Change of Production Area 1.Change of Supplier AP-INBD → PAVCX 2.Change of the parts No. due to changing the production area The following parts are UPPER COMPATIBLE. Ref.
