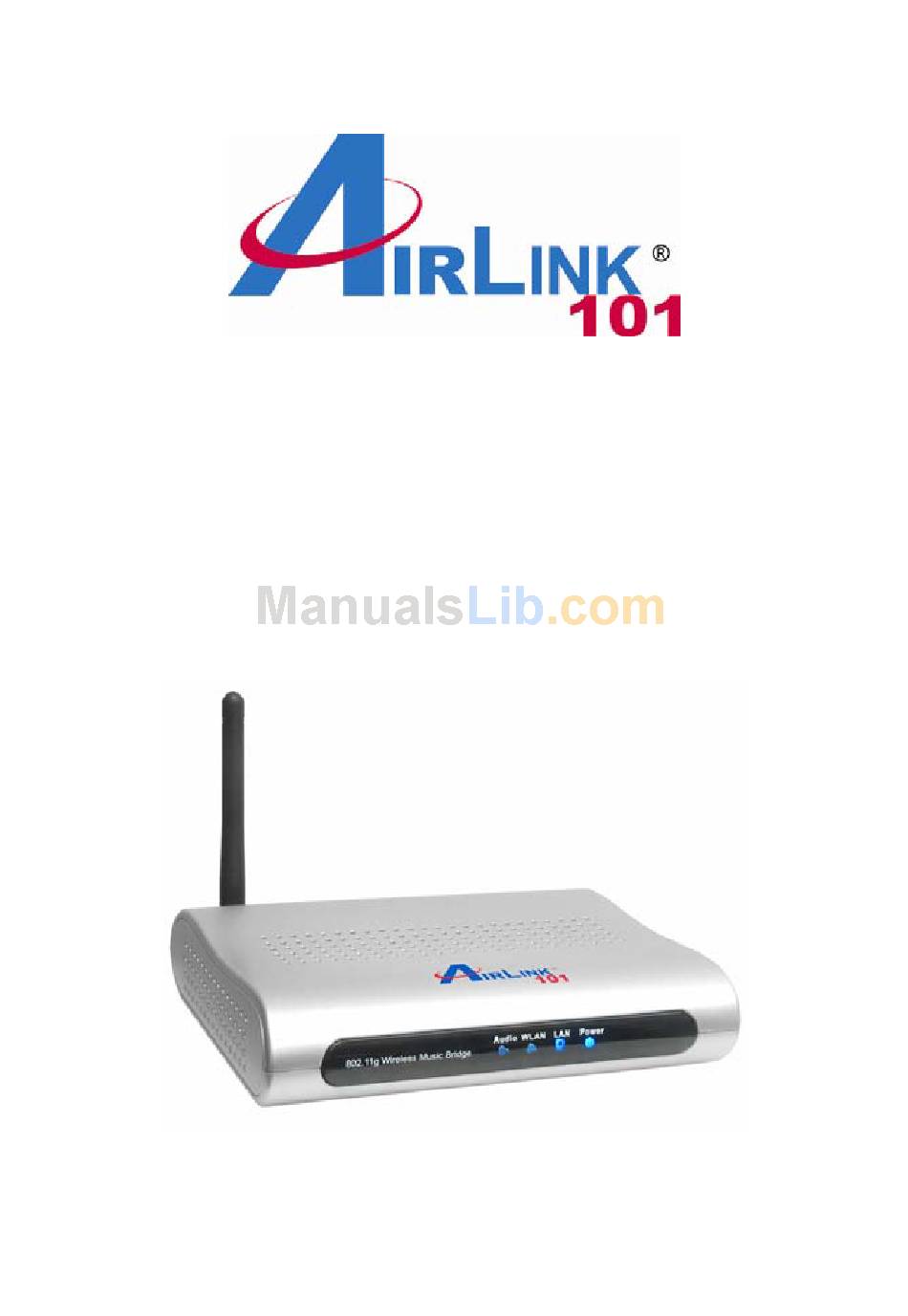

Page 1: Quick Installation Guide
Quick Installation Guide 802.11g Wireless Music Bridge Model # AWMB100 Ver. 1A... -
Page 2: Installing Software
Section 1 This Quick Installation Guide only provides basic instructions. For detailed information on using this product, please refer to the User’s Manual on the supplied CD. Installing Software Note: The setup should be done from the computer you want to use with the music bridge. - Page 3 Step 2 Click Next at the welcome screen. Step 3 Click Install at the installation screen.
-
Page 4: Running Setup Wizard
After the software installation finished, the setup wizard will automatically appear. Click on the Click Here to Start. If the wizard does not come up, you can go to Start > All Programs > Airlink101 Wireless Music Bridge > AWMB100 Setup Wizard. - Page 5 Step 2 Power on the Wireless Music Bridge. Click Next. Step 3 Connect one end of a networking cable to the computer you plan to use with the music bridge, then connect the other end to the Ethernet port on the back of the music bridge.
- Page 6 Step 4 Verify if the LEDs LAN and Power and on. Click Next. Step 5 A list will appear showing your Music Bridge. Select it from the list and click Next. If nothing appears on the list, make sure that the music bridge is connected to your computer and properly powered on.
- Page 7 Step 6 The default username for the music bridge is admin and the default password is admin. Enter this into the appropriate boxes and click Enter. Step 7 This screen allows you to change the device name, username, and password. If you want to change any of this information, enter it into the boxes and click Next.
- Page 8 Step 8 If you are not using the wireless function of the music bridge, click on I only have a wired network and the configuration is complete. You can now connect the music bridge to your router and start playing music. If you plan to use the music bridge wirelessly, go to Step 9 Select your network from the list and click connect.
- Page 9 Step 10 If your network is encrypted, enter the encryption information at the next screen and click Next. Step 11 The setup is complete. Click on Finish to save the settings.
-
Page 10: Connecting To The Music Bridge
Step 1 Double click on the Wireless Audio Center icon in the system tray. If the icon does not appear in the system tray, you can go to Start > All Programs > Airlink101 Wireless Music Bridge > AWMB100 Audio Center. - Page 11 Step 2 Click the Scan Audio Device button. The software will search for and find all Music Bridges on the network.
- Page 12 Step 3 Select the music bridge you wish to use from the list and click the Connect button.
- Page 13 Step 4 Choose the appropriate Playback Buffer Mode for the type of audio you are playing and click Confirm. You can now play audio on your computer and it will be sent to the music bridge.
-
Page 14: Technical Support
(e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2007 Airlink101®...
