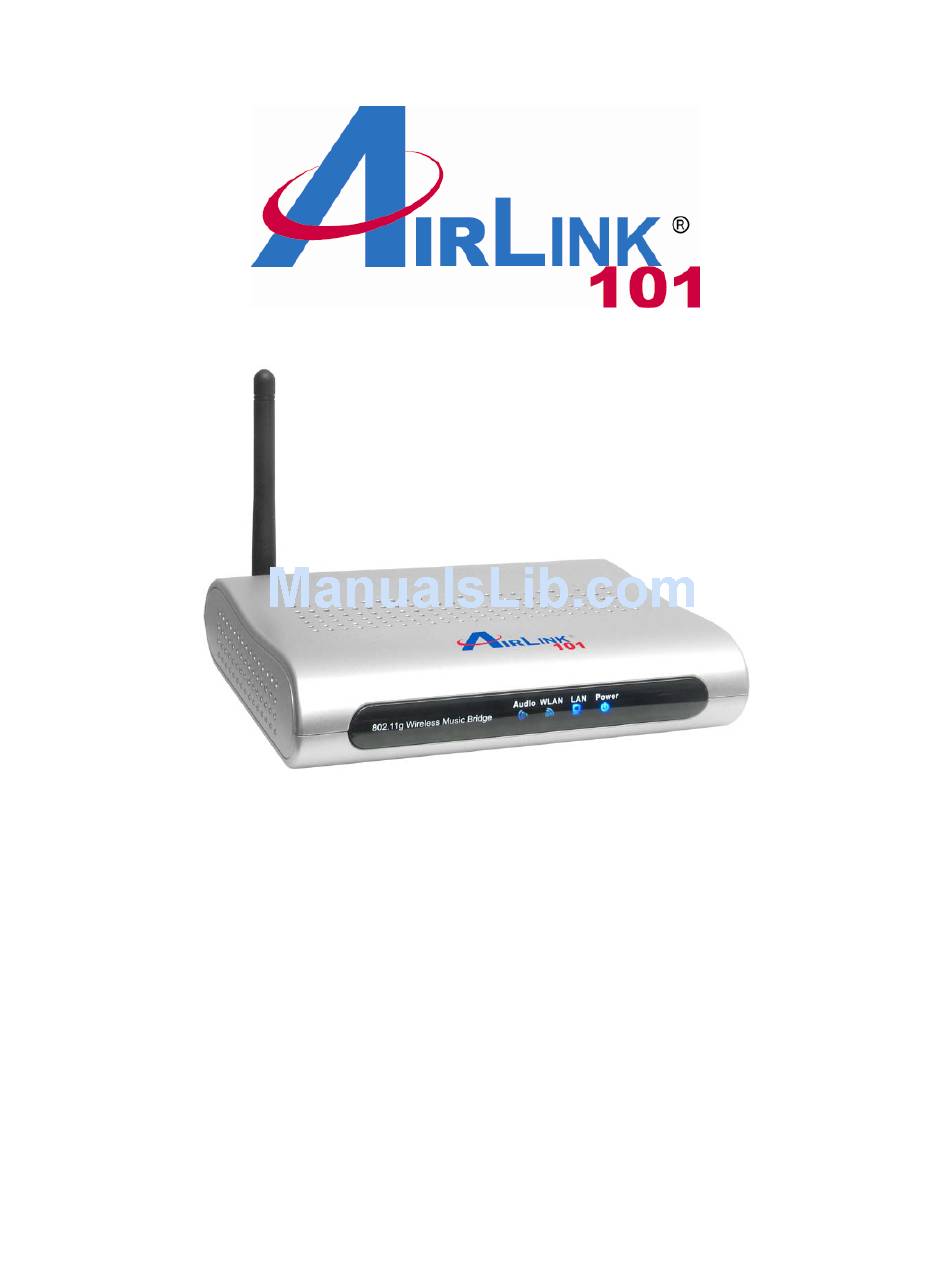

802.11g Wireless Music Bridge
Model # AWMB100
User's Manual
Ver. 1A

Advertisement

Table of Contents
loading

Related Manuals for Airlink101 AWMB100

Summary of Contents for Airlink101 AWMB100

  • Page 1 802.11g Wireless Music Bridge Model # AWMB100 User’s Manual Ver. 1A...

  • Page 2: Table Of Contents

    1 Introduction ... 1 1.1 F ... 1 EATURES 2 Quick Start Guide ... 2 2.1 I NSTALLING OFTWARE 2.2 R UNNING ETUP IZARD 2.3 C ONNECTING TO THE 3 Using the Wireless Audio Center... 13 3.1 A ... 13 UDIO 3.2 A ...

  • Page 3: Introduction

    1 Introduction The AirLink101 Music Bridge is a network audio device and wireless Access Point. It allows you to stream all of your audio content from your PC to speakers in your living room or bedroom, in the glory of 5.1 surround sound. As an audio device, AirLink101 Music Bridge is essentially a “wireless sound card”, which plays back all of your computer’s audio.

  • Page 4: Quick Start Guide

    2 Quick Start Guide 2.1 Installing Software Note: The setup should be done from the computer you want to use with the music bridge. Step 1 Insert the Utility CD into your CD-ROM drive. When the autorun screen appears, select Install Utility and Driver from the menu. Note: If the autorun window does not appear automatically, go to Start ->...

  • Page 5: Running Setup Wizard

    After the software installation finished, the setup wizard will automatically appear. Click on the Click Here to Start. If the wizard does not come up, you can go to Start > All Programs > Airlink101 Wireless Music Bridge > AWMB100 Setup Wizard.
  • Page 6 Step 2 Power on the Wireless Music Bridge. Click Next. Step 3 Connect one end of a networking cable to the computer you plan to use with the music bridge, then connect the other end to the Ethernet port on the back of the music bridge.
  • Page 7 Step 4 Verify if the LEDs LAN and Power and on. Click Next. Step 5 A list will appear showing your Music Bridge. Select it from the list and click Next. If nothing appears on the list, make sure that the music bridge is connected to your computer and properly powered on.
  • Page 8 Step 6 The default username for the music bridge is admin and the default password is admin. Enter this into the appropriate boxes and click Enter. Step 7 This screen allows you to change the device name, username, and password. If you want to change any of this information, enter it into the boxes and click Next.
  • Page 9 Step 8 If you are not using the wireless function of the music bridge, click on I only have a wired network and the configuration is complete. You can now connect the music bridge to your router and start playing music. If you plan to use the music bridge wirelessly, go to Step Step 9...
  • Page 10 Step 10 If your network is encrypted, enter the encryption information at the next screen and click Next. Step 11 The setup is complete. Click on Finish to save the settings.
  • Page 11 Step 12 You can now disconnect the music bridge from your computer and connect it to your stereo system. The following is a description of the different audio outputs on the Music Bridge. Green – Headphones/Stereo/Front Surround – Plug in your stereo speakers or headphones here.

  • Page 12: Connecting To The Music Bridge

    Double click on the Wireless Audio Center icon in the system tray. If the icon does not appear in the system tray, you can go to Start > All Programs > Airlink101 Wireless Music Bridge > AWMB100 Audio Center. Step 2 Click the Scan Audio Device button.
  • Page 13 Step 3 Select the music bridge you wish to use from the list and click the Connect button.
  • Page 14 Step 4 Choose the appropriate Playback Buffer Mode for the type of audio you are playing and click Confirm. You can now play audio on your computer and it will be sent to the music bridge.

  • Page 15: Using The Wireless Audio Center

    3 Using the Wireless Audio Center Double-click on the system tray icon on the bottom-right hand corner of your desktop. The Wireless Audio Center will appear for you to configure. 3.1 Audio Link Tab The Audio Link Tab is where you go to connect to your AirLink101 Music Bridge and customize your audio buffer settings (see Playback Buffer Mode below for an explanation).

  • Page 16: Audio Setting

    configuration tool Click to open the Setup Wizard. Click to save the current settings from this screen. Click to exit this screen. Select the length of your audio buffer. A larger audio buffer prevents your signal from “breaking up” when there is lots of traffic on your network.
  • Page 17 Analog Output Here you select what type of system you have hooked up to the AirLink101 Music Bridge. For example, if you’re using headphones, click on using a 6-channel (or 5.1) speaker system. S/PDIF Output You can choose either Dolby Digital Live or Digital Audio 48kHz to be output from the digital output jack.

  • Page 18: Mixer

    Speaker Test control panes. Click to enable Virtual Speaker Shifter processing. Click to adjust the individual volumes for each channel Click to test the output of each channel. Click to stop an output test. Click to exit this screen. 3.3 Mixer The Mixer allows you to control your volume levels.

  • Page 19: Effect

    Volume Control Adjust this knob using your mouse to change the overall volume level. Wave, SW Synth, If you want to change the volume for a specific audio source, you can make CD player separate adjustments to each of these sliders.
  • Page 20 Environment Select the environment you wish to emulate- : Bathroom : Concert Hall : Underwater : Music Pub For additional choices, click the More Options button and choose one from the pull-down menu. Environment Click to adjust the size of the virtual environment. Size Equalizer There are 12 equalizer presets to choose from,...

  • Page 21: Karaoke

    “-” to delete current the current user preset. Click to exit this screen. 3.5 Karaoke The Karaoke feature allows you to both adjust pitch up/down and remove vocals from regular music tracks. Click ON to enable the karaoke menu. Use the check boxes next to each feature to adjust them.

  • Page 22: Information

    3.7 Information This tab displays information about your current 3D audio engine, sound chip, Network audio driver and DirectX version. You can also decide if the audio configuration icon should be shown in the system tray.

  • Page 24: Wireless Modes Of Operation

    4 Wireless Modes of operation Besides streaming audio around your home, the Music Bridge can be used as a wireless access point. You can also use the Music Bridge as an Ethernet bridge and connect a computer to the Ethernet port for wireless access to your router. By default, the AirLink101 Music Bridge is configured as an Access Point.
  • Page 25 To set the operation mode to Client Mode, access the Web configuration tool and go to “Wireless Basic Settings”, and in the “Mode” field, click the down arrow to select Client mode. Also, under “Network Type”, select “Infrastructure”.

  • Page 26: Advanced Network Configuration

    5 Advanced Network Configuration Advanced networking options can be configured through the Web Utility. This utility can be accessed in two ways: 1. Open the Wireless Audio Center and click on the under the Status bar (see right). 2. The second way is to open your web browser and type in the IP address that the AirLink101 Music Bridge has been assigned.
  • Page 27 Step 2 You may change the default settings of the IP Address and Subnet Mask, then click Next to continue. Step 3 Configure the following wireless networking settings and then click Next to continue.

  • Page 28: Status

    Step 4 Select the wireless encryption type from the pull-down menu and click Finish to complete the setup wizard. WPA2 encryption is recommended for the highest level of security, but not all networking equipment is compatible with it. 5.2 Status In this screen, you can see the current settings and status of your AirLink101 Music Bridge device.
  • Page 29 System Uptime The duration of time the AirLink101 Music Bridge has been servicing the network. Firmware Version The version of the firmware installed on your AirLink101 Music Bridge device. Wireless Configuration Mode There are two modes supported: Access Point and Client Band Shows the wireless band that is being used.

  • Page 30: Wireless

    5.3 Wireless 5.3.1 Basic Settings This page includes all major networking parameters. Any parameter changes require the device to reboot for the new settings to take effect. Disable Wireless LAN Interface Band Mode Check this box to disable the Wireless LAN Interface. By doing this, you won’t be able to make wireless connections with this Access Point on its network.

  • Page 31: Advanced Settings

    Network Type SSID Channel Number Associated Clients Apply Changes Reset 5.3.2 Advanced Settings It is not recommended that settings in this page be changed unless you are an advanced user that wants the network to meet certain performance objectives. Don’t adjust these settings unless you know exactly what you’re doing.
  • Page 32 Authentication Type To provide a certain level of security, the IEEE 802.11 standard has defined two types of authentication methods, Open System and Shared Key. With Open System authentication, a wireless PC can join any network and receive messages that are not encrypted.
  • Page 33 the Authentication mode automatically. Fragment Threshold Fragmentation is used for improving efficiency when there is a lot of network traffic. If your 802.11g Wireless Adapter often transmits large files into the wireless network, you can enter a new Fragment Threshold value to split the packet. The value can be set from 256 to 2346.
  • Page 34 instead of providing a remedy. *This value should remain at its default setting of 2347. Should you encounter inconsistent data flow, only minor modifications of this value are recommended. Beacon Interval Beacon Interval is the amount of time between beacon transmissions. Before a station enters power saving mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn...

  • Page 35: Security

    the network’s performance. Apply Change Click this button to save your settings. Reset Click to discard the settings you have entered. 5.3.3 Security Here you can configure the security of your wireless network. If you are using the AirLink101 Music Bridge on an existing network, you will probably have a security scheme already set up, which you should follow here.
  • Page 36 Authentication to have a RADIUS server issue the WEP key dynamically. For most home users, you will have to enter the WEP key manually on each device that joins the network Set WEP key Encryption: WPA/WPA2 WPA/WPA2: If WPA is selected, users will have to choose between two modes of authentication: Enterprise (RADIUS) and Personal (Pre-shared Key).

  • Page 37: Access Control

    Pre-shared Key The pre-shared-key serves as a password for the network. Enter an 8-63 letter password, and ensure that the same password is used on all other clients on the network. There are two formats for setting the Pre- shared key, Passphrase and Hex. If Hex is selected, users will have to enter a 64-letter key.
  • Page 38 Wireless Access Select the Access Control Mode from the Control Mode pull-down menu. Disable: Select to disable Wireless Access Control Mode. Allow Listed: Only the stations shown in the table can associate with the AP. Deny Listed: Stations shown in the table won’t be able to associate with the AP.

  • Page 39: Site Survey

    5.3.5 Site Survey Site survey displays all the active networks in range of your device. When you are in client mode, you can also select an Access Point to associate with. Click Refresh to get the latest information. 5.4 TCP/IP On this page, you can change the TCP/IP settings of your AirLink101 Music Bridge device, enable or disable the DHCP Client and 802.1d Spanning Tree, and clone MAC Addresses.

  • Page 40: Other Settings

    IP Address, Subnet These fields can only be modified when DHCP Mask, Default Client mode is disabled. If you are connecting Gateway to an existing network and are unsure what to enter here, ask the person that set up your network to provide these values for you.

  • Page 41: Statistics

    5.5.2 Statistics The Statistics table shows the packets sent and received over wireless and ethernet LANs.

  • Page 42: Upgrade Firmware

    5.5.3 Upgrade Firmware 1. Download the latest firmware from your distributor and save the file on your hard drive. 2. Start the browser, open the configuration page, click on Other, and click Upgrade Firmware to enter the Upgrade Firmware window. Enter the new firmware’s path and file name (i.e.

  • Page 43: Password

    When prompted, select “Save this file to disk”, and enter the file name and the file location. Load Settings From File: Click Browse… if you want to load a pre-saved file, enter the file name with the correct path and then click on Upload. Or click Browse… to select the file.
  • Page 44 Click Apply Change to logout of the web configuration page.

  • Page 45: Appendix - Specifications

    Appendix - Specifications Standards • IEEE 802.11g/b Frequency Range • 2.412 ~ 2.497GHz Antenna • Single attached 2 dBi dipole antenna Security • WEP 64/128 bit • WPA / WPA2 • Power, LAN, WLAN, Audio Interface • Power • Antenna •...

  • Page 46: Technical Support

    Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Web site: www.airlink101.com *Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.
