User Manual
Quick Installation Guide
3.5" IDE/SATA Network Attached Storage
Model # ANAS350
Section 1
Hard Drive Installation
WARNING:
This Network Attached Storage device is not hot-swappable. Please make sure that
it is turned off and not connected to the power outlet when performing the following
assembly procedure.

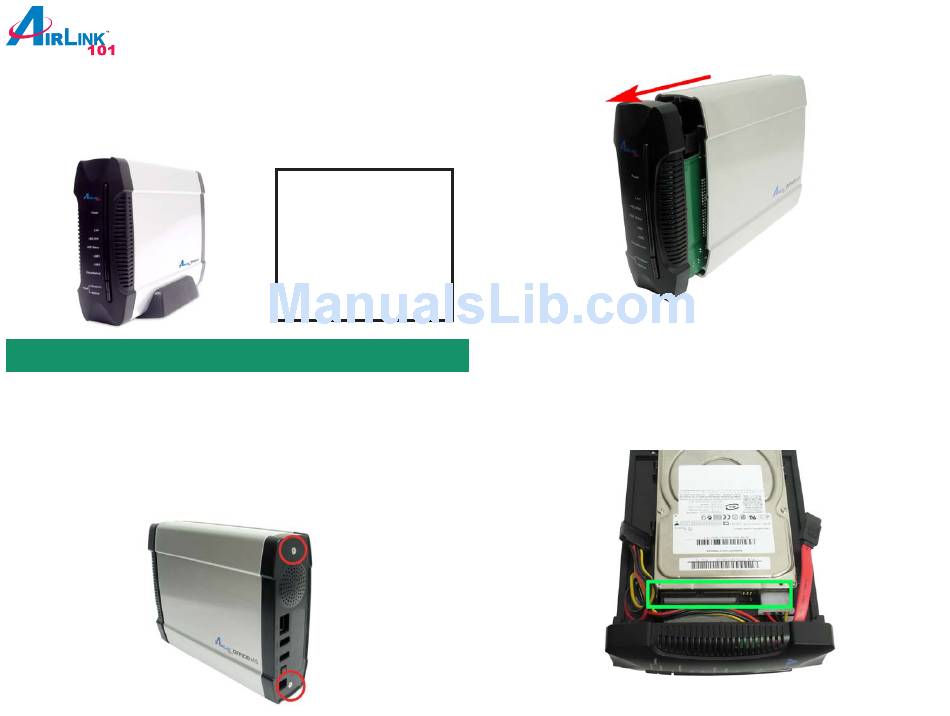

Step 1
Unfasten the two screws at the rear side of the device, and pull out the
back cover.
Office NAS
Package Contents:
•
Office NAS
•
Vertical Stand
•
Power adapter
•
Ethernet Cable
•
Utility CD
•
Quick Installation Guide
•
Screws (4)
•
Rubber feet (4)
Ver. 1.0
Step 2
Pull out the front panel.
Step 3
Put the 3.5-inch IDE or SATA hard disk into the slot, and connect the
proper data cable for your hard drive. (The red cable is used for SATA and the gray
one is for IDE).
Step 3a
IDE
