Removing a media module
To remove a media module, do the following:
1.
2.
3.
4.
5.
6.
7.
Installing a media module
To install a media module, do the following:
1.
2.
3.
4.
RUGGEDCOM RST2228P
Equipment Manual, 10/2023, C79000-G8976-1403-17
Make sure power to the device has been disconnected and wait approximately
two minutes for any remaining energy to dissipate.
[Optional] If the device is installed in a rack, remove it from the rack.
Using a Torx T10 screwdriver, loosen the screw that secures the media module
to the chassis.
Pull the media module from the chassis to disconnect it.

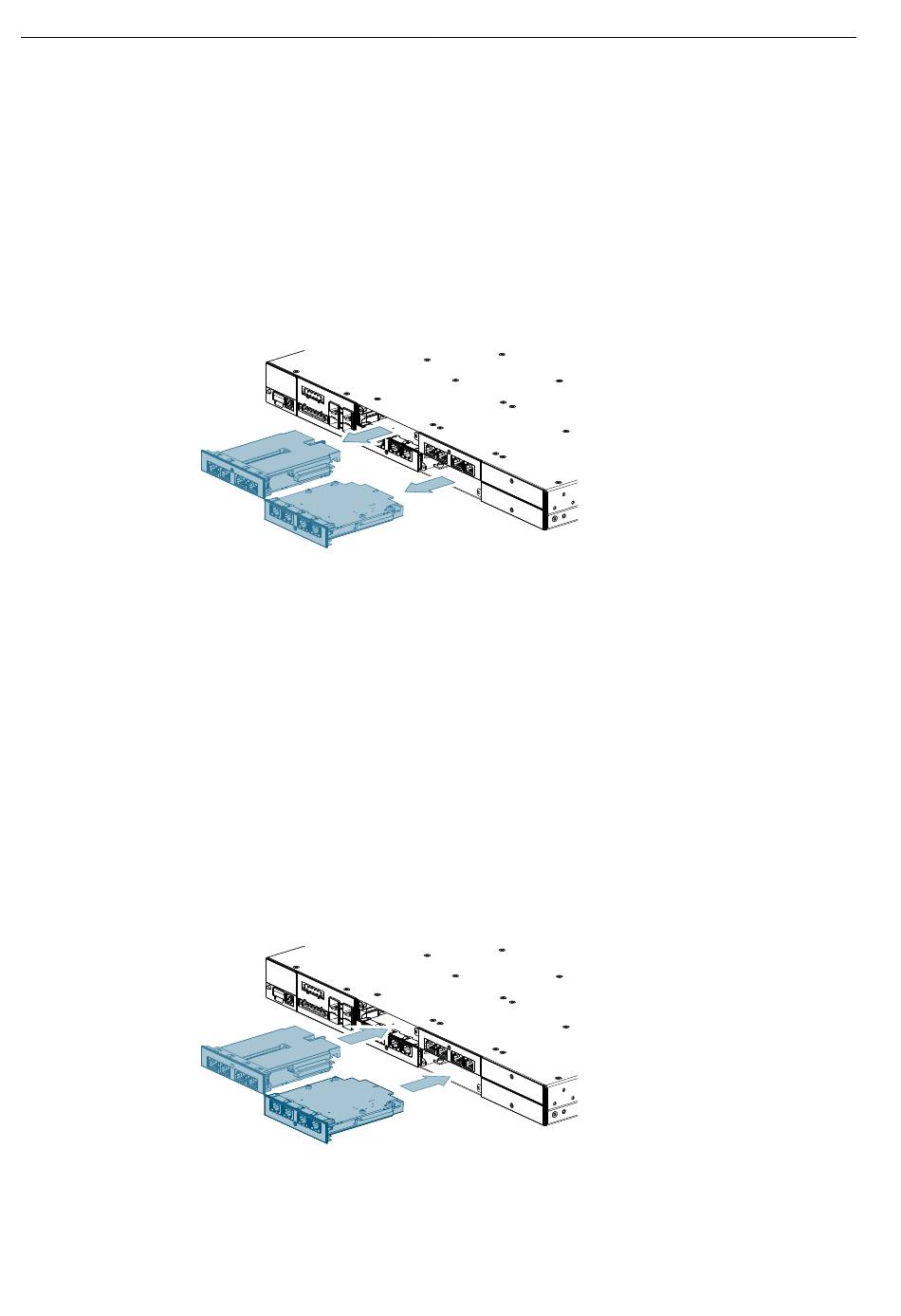

Figure 3.2 Removing a media module
Install a new media module or a blank module (to prevent the ingress of dust
and dirt).
[Optional] If necessary, install the device in the rack.
Connect power to the device.
Make sure power to the device has been disconnected and wait approximately
two minutes for any remaining energy to dissipate.
[Optional] If the device is installed in a rack, remove it from the rack.
Remove the current media module from the slot.
Insert the new media module into the slot.
Figure 3.3 Installing a media module
Communication ports
3.1 Media modules
