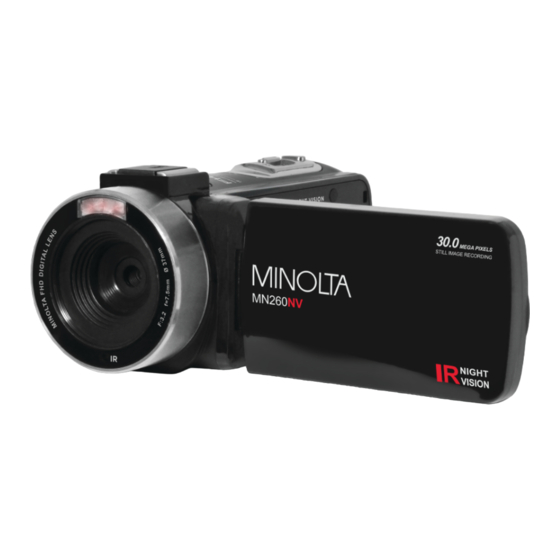

Minolta MN260NV User Manual

Minolta MN260NV User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MN260NV User Manual

Advertisement

loading

Related Manuals for Minolta MN260NV

Summary of Contents for Minolta MN260NV

  • Page 1 MN260NV User Manual...
  • Page 2 1. About Your Camcorder About this Manual Congratulations on purchasing the Minolta MN260NV Camcorder! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual camera.
  • Page 3 1. About Your Camcorder conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 4 1. About Your Camcorder batteries, which might cause poisoning. • Once the battery's color changes or its shape is twisted, please stop using it. USB adapter Information • Do not expose the adapter to high temperatures or moisture places. Otherwise, it may cause fire or electric shock.
  • Page 5 1. About Your Camcorder 1.1 Camcorder Interface Speaker Zoom Accessory Mount Photo Battery/Memory Tripod Mount Card Door...
  • Page 6 1. About Your Camcorder 1.2 Button Function Description Function Description Tap once to power on, press and hold for 2 Power | IR seconds to power off. While powered on, tap once to enable or disable IR night vision. Tap to cycle between Video, Photo, Playback and Mode Setup modes.
  • Page 7 1. About Your Camcorder Battery/Memory Door to cover storage slot for inserting the battery Card Door and a memory card. Battery Release Slide the switch to remove the battery. Switch Built-in speaker output for playback of video files Speaker when audio recording is enabled. Lens Front capture device for all video and photo.
  • Page 8 2. First Use 2. First Use 2.1 Inserting the Memory Card Insert the included SD memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the SD memory card by following the steps below: 1.
  • Page 9 2. First Use 2.2 Installing the Battery Insert the lithium-ion battery into the battery compartment with the metal contacts facing the back of the camcorder. Take special note of the ridges on the sides of the battery and the on the body of the camcorder. The battery can only inserted one way.

  • Page 10: First Use

    2. First Use The camcorder will automatically power on and off when the screen is opened or closed. If the camcorder’s battery is low, a “Low Power” message will display on the screen and it will automatically shut down within a few seconds to prevent memory corruption or loss. 2.5 Switching Modes Press the MODE button to cycle between Video, Photo, Playback and Setup Modes.
  • Page 11 2. First Use 2.7 Video Mode Press the MODE button to switch to Video Mode. The meaning of each icon within Video Mode is explained in the table below: 1) Video Mode 7) Zoom Indicator 13) White Balance 2) Video Size (Resolution) 8) Battery Level 14) Menu 3) Beauty Filter Icon...
  • Page 12 2. First Use 2.8 Photo Mode Press the MODE button to switch to Photo Mode. The meaning of each icon within Photo Mode is explained in the table below: 1) Photo Mode 8) Number of Photos Remaining 15) Exposure 2) Photo Size (Resolution) 9) Memory Card Inserted 16) Image Quality 3) Beauty Filter 10) Zoom Indicator...
  • Page 13 2. First Use 2.9 Using the Zoom Function This camcorder has a digital zoom function. To operate the zoom function, slide the ZOOM button right to zoom in closer to the subject, and to the left to zoom away from the subject. 2.10 Using the IR Night Vision Mode This camcorder has built-in infrared (IR) LEDs for night vision recording - giving you the ability to capture photos and videos in a dark environment.
  • Page 14 2. First Use 2.12 Remote Control Note: Before using the remote, remove the battery tab on the back. When using the remote, it should be pointed towards the remote control receiver on the front the camcorder. There shouldn’t be any objects in between the remote and camcorder as they can block the...

  • Page 15: Using The Camcorder

    3. Using Your Camcorder 3. Using the Camcorder 3.1 Video Recording Power the camcorder on and it will be ready to record clips right away. You may press the MODE button or press the icon in the top left corner of the touch screen to switch to another mode.
  • Page 16 3. Using Your Camcorder RECORD/OK button to confirm how sharp you would like your video to be (Sharp, Normal, Soft). 4. Press the MENU button to exit the menu without making a selection. 3.1.3 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.
  • Page 17 3. Using Your Camcorder 3.1.6 Loop Recording This function allows you to set a maximum duration for each video clip recorded. 1. In Video Mode press the MENU button. 2. Select ‘Loop Recording’ using the UP or DOWN buttons and press the RECORD/OK button to enter the ‘Loop Recording’...
  • Page 18 3. Using Your Camcorder 3. Press the UP or DOWN buttons to navigate the menu and press the RECORD/OK button to confirm your selected option (Auto, Night, Portrait, Landscape, Backlight, Sport, Party, Beach, High Sensitivity). 4. Press the MENU button to exit the menu without making a selection. 3.1.9 Beauty Filter This feature applies a filter effect on the people in the scene.
  • Page 19 3. Using Your Camcorder 3.2 Photo Shooting Power the camcorder on and press the MODE button or press the icon in the top left hand corner of the touch screen to switch to Photo mode. 1. Line up your shot by looking at the LCD screen to see what is in the shot. 2.
  • Page 20 3. Using Your Camcorder 3.2.3 Sharpness This function adjusts the visible detail of a photograph. 1. In Photo Mode, press the MENU button. 2. Select ‘Sharpness’ using the UP or DOWN buttons and press the RECORD/OK button to enter the ‘Sharpness’ submenu. 3.
  • Page 21 3. Using Your Camcorder 3. Press the UP or DOWN buttons to navigate the menu and press the RECORD/OK button to confirm your selected exposure mode (+3, +2, +1, 0, -1, -2, -3). 4. Press the MENU button to exit the menu without making a selection. 3.2.7 Self Timer This function determines the time delay before a photograph is captured.
  • Page 22 3. Using Your Camcorder Red, Green, Blue, Sunset, Warm, Cool, Over Exposure, IR, Binary, Vivid, Undertone, Dog Eye, Aibao, Gothic, Japan Style, LOMO, Negative). 4. Press the MENU button to exit the menu without making a selection. 3.2.10 Anti-Shake This function enables photo capture in high speed and low-light by electronically minimizing motion blur and reducing camera shake.
  • Page 23 3. Using Your Camcorder 4. Press the MENU button to exit the menu without making a selection. 3.2.13 Smile Capture This function allows you to set your camera to detect smiles in a scene and for it to capture a photo automatically. 1.
  • Page 24 3. Using Your Camcorder 3.3 Playback Mode Videos and photos captured on your camcorder can be easily played back. 1. Press the UP or DOWN buttons to cycle through the captured videos and photos stored on the memory card. 2. When viewing a photo push the ZOOM button to the right and it will zoom in on the picture on the screen.
  • Page 25 3. Using Your Camcorder 3.3.3 Rotate This function is used to rotate images. 1. In Playback Mode press the MENU button, and use the UP or DOWN buttons to select ‘Rotate’. Press the RECORD/OK button to enter the ‘Rotate’ submenu. 2.
  • Page 26 3. Using Your Camcorder 3.4 Setup Menu Basic settings can be changed in the Setup menu. These include date & time, language and sound options. Power the camera on and press the MODE button, or press the icon in the top left hand corner of the touch screen to switch to setup mode.
  • Page 27 3. Using Your Camcorder Power Off’ and press the RECORD/OK button to enter the ‘Auto Power Off’ submenu. 2. Press the UP or DOWN buttons to navigate the menu and press the RECORD/OK button to confirm your selected setting (Off, 1 Minute, 3 Minutes, 5 Minutes).
  • Page 28 3. Using Your Camcorder 3.4.7 Restore Default Settings Factory default settings can be restored in this menu. This function will not delete the media stored on the memory card, and will only restore all of the menu’s setting back to factory default settings. 1.
  • Page 29 4. Appendix 4.1 Technical Specifications Model Number Minolta MN260NV Fixed Focus • f=7.5mm • F/3.2 • 37mm Front Lens Threading for Lens Accessory Attachments Zoom 16X Digital Zoom Image Sensor 5MP CMOS Sensor Electronic • Anti-Shake Image Stabilization Shutter JPEG: 30MP • 24MP • 20MP • 16MP • 12MP • 10MP •...
  • Page 30 Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: 800-441-1100 www.minoltadigital.com • www.elitebrands.com Copyright © 2023 Elite Brands Inc.
