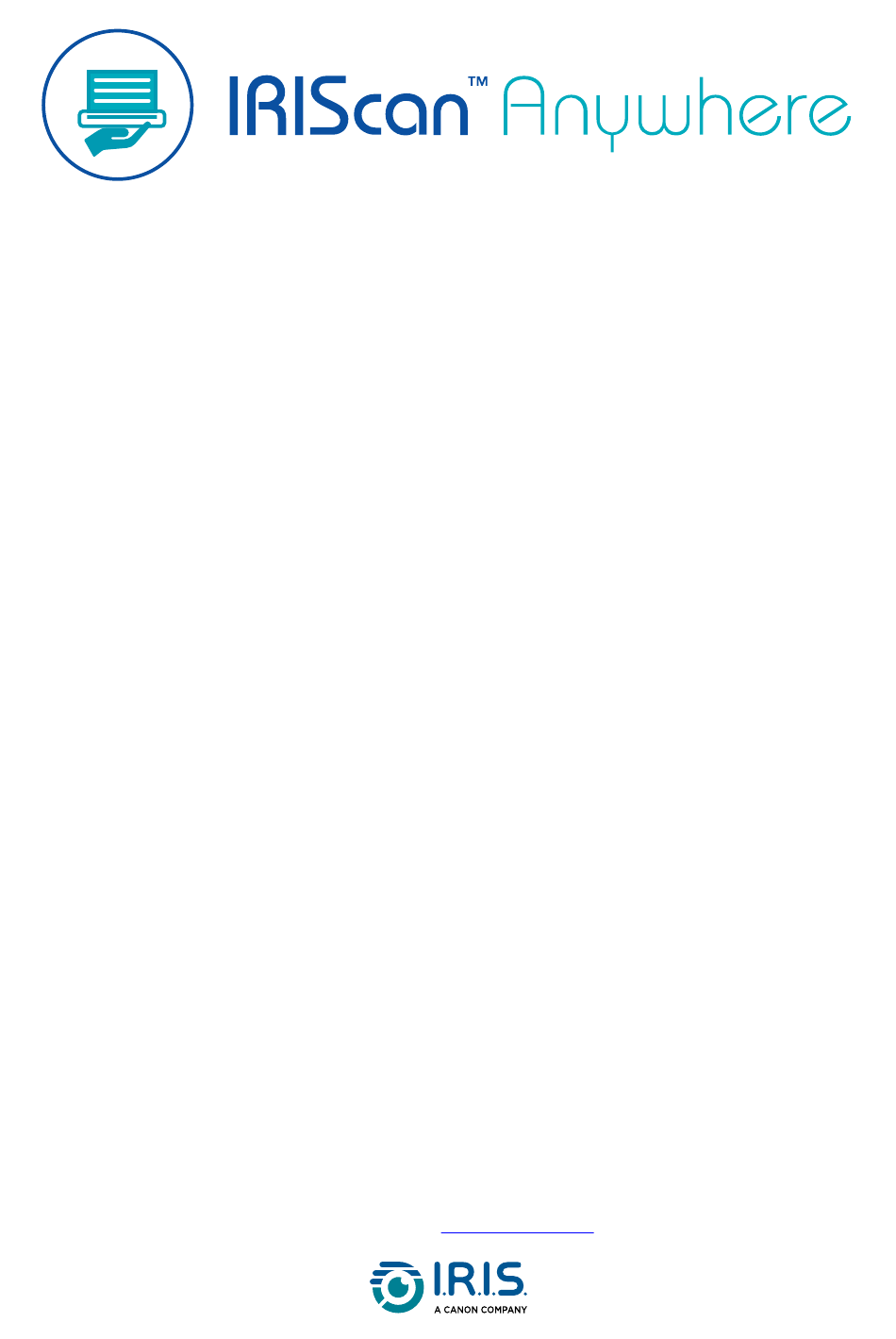

- Page 1 Duplex User Guide Version 1.0 I.R.I.S. SA/NV rue du Bosquet 10, B-1348 Louvain-la-Neuve +32 (0) 10 45 13 64 - www.iriscorporate.com ...
-
Page 2: Table Of Contents
Contents Introduction Using this manual ........................4 Legend ................................4 ASD-STE100..............................4 References ..............................4 Installation Getting started ........................5 Description Package content ........................9 Upper front view ........................10 Upper rear view........................11 Control panel........................12 Specifications ........................14 Stand-by and OFF times ..........................14 Supported connections..........................14 Scanner specifications...........................15 Wi-Fi specifications ............................15 Operation... - Page 3 Precautions........................... 48 Safety instructions ........................ 49 Legal information ..................... 50 Page 3...
-
Page 4: Introduction Using This Manual
Introduction Using this manual Legend A WARNING informs you of danger, harm, or consequences that exist. A CAUTION advises you to act with care. A NOTE tells you an additional information that is good to know. ASD-STE100 This manual applies as much as possible the ASD-STE100 specification (Simplified technical English). Go to https://www.asd-ste100.org for more details. References User manual of Capture Tool. User manual of Button Manager v2. Available from our web site: Product resources. Page 4... -
Page 5: Installation Getting Started
Installation Getting started Step 1: Remove the protective tapes Remove the protective tapes from the scanner and the inside of the document feeder, as shown below. Step 2: Charge the device It is best to charge the device for 4-5 hours before starting the device. Make sure that the scanner is stopped. Connect the USB-C connector of the charging cable to the scanner's USB-C port. - Page 6 Step 3: Install and run Software You must have administrator rights on your computer to install software. To download each software, go to Download Center. Depending on your operating system, this product comes with a set of applications that we ask you to install in the following order: Order Software name Description Platform...
- Page 7 Step 4: Connect to the computer Connect the USB-C connector of the charging cable to the scanner's USB-C port. Connect the USB connector of the charging cable to your computer's USB port. The computer detects a new USB device and shows a "New hardware detected" message. When the Finish dialog box appears, select the Finish button. ...
- Page 8 Step 7: Scan Go to How to scan. European Union Regulatory Notice Products bearing the CE marking comply with the following EU Directives: • Low Voltage Directive 2014/35/EC • EMC Directive 2014/30/EC • Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU •...
-
Page 9: Description Package Content
Description Package content Regulatory model: Duplex Scanner main unit USB-C cable Calibration sheet Getting started booklet See Calibrate the scanner for information on calibration. Page 9... -
Page 10: Upper Front View
Upper front view Item Name Description Put the original document in the feed slot, printed Left edge of feed slot side up and aligned with the left edge. Feed slot Put the original document into the feed slot. Move the paper guide to the right edge of the Paper guide original document to ensure correct alignment during the scanning. -
Page 11: Upper Rear View
Upper rear view Item Name Description Connect the USB-C connector of the charging cable USB Type-C to the scanner's USB-C port. Page 11... -
Page 12: Control Panel
Control panel Item Name Description The blue LED that flashes shows that the Wi-Fi connection in Access point mode is in progress. Wi-Fi LED The blue LED permanently lit shows that the Wi-Fi connection in Access point mode is successful. Refer to the Operation chapter for more information on Wi-Fi settings. - Page 13 • Press and hold the power button for 3 seconds to stop the device. • Press the scan button to start a scan Color legend: Green flashes The scanner is in power- saving mode. Press the Power button to wake up from standby. ...
-
Page 14: Specifications
Specifications Stand-by and OFF times If powered by USB cable If powered by battery Stand-by mode after 10 min Automatic power-off after 60 min after 15 min Supported connections Can support Cannot support Page 14... -
Page 15: Scanner Specifications
Scanner specifications All specifications are subject to change without notice. FF-2111B (simplex scanner) Model number FF-2112B (duplex scanner) Image Technology Contact Image Sensor (CIS) Optical Resolution 600 dpi Color Modes Black & White/Gray/Color Max. Paper Size 8.5” x 14” (width x length) Min. Paper Size: 2.0” x 2.9” (width x length) Paper Weight 52 ~ 105 g/m²... - Page 16 IEEE 802.11n IEEE 802.11ac WPA-PSK/WPA2-PSK Security WPA/WPA2 Operating Windows 10, 11 System macOS 11, 12 or higher Page 16...
-
Page 17: Operation How To Place A Document
Operation How to place a document Align the original document to the left edge of the feed slot Install the original document face up into the feed slot. Install only one page at a time, put the next one only when the previous one is done. Let go of the page when it begins to slide into the slot. -
Page 18: How To Place A Plastic Card
How to place a plastic card Align the original plastic card to the left edge of the feed slot. Put the original plastic card face up. Install the card at an angle (30°), not horizontally, to ensure that the feed wheel grips the card securely. Install only one plastic card at a time Let go of the card when it begins to slide into the slot. -
Page 19: How To Connect To Wi-Fi
How to connect to Wi-Fi The scanner works as an Access Point (AC). You can connect your computer or your mobile devices to the scanner via Wi-Fi without the need for an additional access point. (No Internet access) To set the Wi-Fi connection to ON, slide the Wi-Fi switch to the ON position (See Upper front view). If the connection is successful, the Wi-Fi LED comes on permanently in blue. On your computer or mobile devices (network settings), make sure that IRIScan-xxxx has been selected as the wireless network name (xxxx shows the last four digits of the Mac address on the back of the scanner). - Page 20 Refer to the Troubleshooting section if you are not prompted to enter a password. Page 20...
-
Page 21: How To Scan
How to scan Make sure that you do steps 1 to 6 in the Getting started section before you start a scan. With cable and Capture Tool Start the Capture Tool application. For more details on this tool, refer to its user manual. Click the Scan button in the Capture Tool. The converted file shows in the left panel of the Capture tool. Multi-feed is supported, and you can set the scan interval length in Capture Tool > Setup > Paper tab >... -
Page 22: With Cable And Twain-Compatible Software
With cable and TWAIN-compatible software Start the TWAIN-compatible software you selected (examples: Adobe Acrobat, or Image Capture (ICA) under macOS). Look for the scan option in that software (example: Insert... from scanner). Follow the instructions on the screen. Click Scan in the application. The converted file opens in the selected application. With Wi-Fi and Capture Tool Connect to Wi-Fi (See How to connect to Wi-Fi). Start the Virtual Scanner Link (VSL) application and make sure the scanner is connected. -
Page 23: With Wi-Fi And Twain-Compatible Software
Press the Scan button in the scanner control panel (the applicable scan settings are those last saved in the Button Panel) OR click the button of your choice in the Button Panel. The converted file opens in the selected application. With Wi-Fi and TWAIN-compatible software Connect to Wi-Fi (See How to connect to Wi-Fi). Start the Virtual Scanner Link (VSL) application and make sure the scanner is connected. If the link to the scanner is broken, click Refresh, wait for the scanner to show, select it, and click Connect. ... -
Page 24: How To Enter The Scanner Settings Via Your Browser
How to enter the scanner settings via your browser You can use a web interface to administrate your scanner settings (example: name or protection). Connect your scanner to a computer via Wi-Fi. The two devices are now connected point-to-point. Open a browser on your computer and enter the primary IP address http:// 192.168.200.1/. You can see the information menu about the hardware and about the wireless Access Point. Click Login (button in the upper right corner of the window). A login window is shown. ... - Page 25 2. the network management tab. You can change the name of your scanner (SSID) and add protection. Follow the on-screen steps. Save your changes. Page 25...
-
Page 26: How To Use The Iriscan™ App On Android
How to use the IRIScan™ app on Android® The IRIScan™-PDF scanner app is a mobile application available on Android®. The app is available on Android from Android® 11. You can scan documents directly to your mobile device via the IRIScan™-PDF scanner app. Download the app from Google Play (Android®). Install it. Set the Wi-Fi connection on your scanner to ON. Enable the Wi-Fi function on your mobile device (see Network settings). Connect to the IRIScan™ network (see How to connect to Wi-Fi). When the ... - Page 27 The app interface looks like this: 1. Three-dot menu 2. Scan options 3. File list 4. Scan button Select the Scan options (2): • Resolution (DPI number): 300 DPI is the default value. • Paper size: auto-size is the default value, it lets the scanner detect the paper size automatically. The abbreviations LTR stand for 'Letter' and LGL for 'Legal'. Page 27...
- Page 28 • Output format: PDF is the default value. JPEG or TIF formats are also available. JPEG format does not support B/W color mode. The TIF format supports B/W color mode only. • Simplex or Duplex: depending on your scanner model, the scan mode is shown. • Color mode: color is the default value. Gray or black and white (B/W) are also available. Select the three-dot menu (1) to access the following options: •...
- Page 29 • Bin icon: delete the file. • Share icon: open the share screen of your mobile device. • Open with...: select the three-dot menu and select Open with... A list of possible apps opens. Select < BACK to go back to the main screen. ...
-
Page 30: How To Use The Iriscan™ App On Ios
How to use the IRIScan™ app on iOS® The IRIScan™-PDF scanner app is a mobile application available on iOS®. You can scan documents directly to your mobile device via the IRIScan™-PDF scanner app. Download the app from the Apple Store (iOS®). Install it. Set the Wi-Fi connection on your scanner to ON. Enable the Wi-Fi function on your mobile device (see Wi-Fi settings). Connect to the IRIScan™ network (see How to connect to Wi-Fi). When the ... - Page 31 1. Three-dot menu 2. Scan options 3. File list 4. Scan button Select the Scan options (2): • Resolution (DPI number): 300 DPI is the default value. • Paper size: auto-size is the default value, it lets the scanner detect the paper size automatically. The other options are Legal, Letter, and A4. •...
- Page 32 • About: see version information of the app. • Register Now: register as an IRIS user to get free support. You are redirected to our web site. Place a document in the scanner (see How to place a document). Select Scan (4) in the app. The new file shows on the screen of the app, in the File list (3). ...
- Page 33 If you click Select in the title bar, you can select one file, Select all files, or Cancel file selection, and you have access to two options: • Delete: delete the selected file(s). • Share: open the share screen of your mobile device. Page 33...
- Page 34 Select a file in the File list (3) to open it in a new screen with new options. • Turn to rotate the page (clockwise). • Tag: can add a tag to the document (as metadata). • Delete the file. •...
-
Page 35: How To Reset Wi-Fi Settings
How to reset Wi-Fi settings To reset Wi-Fi settings to factory defaults (if you have forgotten your password, for example), do the following: Connect to Wi-Fi (See How to connect to Wi-Fi). Set the Wi-Fi switch to OFF and ON again three times in succession. The red LED flashes during the reset. -
Page 36: Maintenance Calibrate The Scanner
Maintenance Calibrate the scanner Calibrate if the scanned image appears blurred, if the color appears abnormal (for example darker than normal), after more than 8,000 scans, or if the scanner was unused for a long time. The calibration process resets the Contact Image Sensor to restore color accuracy and sharpness. - Page 37 Click OK on the "Insert calibration sheet" dialog box to start calibrating the scanner. Wait until calibration is complete. Page 37...
-
Page 38: Clean The Scanner
Clean the scanner To maintain the quality of the scanned image and avoid dust build-up, we recommend that you clean the scanner (outer casing and feed rollers) approximately every 200 scans, or if vertical lines or stripes show on the scanned image. ... - Page 39 Gently wipe the scanner glass, feed rollers and CIS cover with the cleaning cloth. Page 39...
-
Page 40: Troubleshooting Faq
Troubleshooting Question Why won't my scanner start? Make sure that the USB cable is properly connected to the scanner and the Answer computer Why doesn't my computer recognize my scanner when connected via USB Question cable? Make sure that the cable connection is correct and secure. Restart the Answer computer if necessary. - Page 41 Why are the "auto-crop" and "deskew" functions deactivated when I select Question an optical resolution of 600 dpi? Since auto-cropping and deskewing consume a lot of system memory, we Answer suggest that if you wish to run the auto-cropping and deskew functions, select an optical resolution of fewer than 600 dpi to avoid an error message.
- Page 42 Why can't I connect to my e-mail or other websites/programs after I Question disconnect from the scanner's Wi-Fi network? To resume your normal Wi-Fi connection, make sure that you reconnect Answer your computer, tablet, or phone to your usual local Wi-Fi network when you are finished with the scanner connection.
-
Page 43: Troubleshooting
Troubleshooting Clear error conditions If an error occurs during scanning, the power/scan button LED flashes red. Refer to the following table to eliminate error situations. The number of times the red Description How to restore LED flashes Remove the paper and try again. 4 (continued) Paper jam The red LED will not stop flashing... -
Page 44: Correct Wrong Cropping
Remove the paper. Close the cover and replace the document. Correct wrong cropping If the cropping results are not satisfactory (for example, the result is A4 size for an ID card and the sheet is blackened), make sure that you apply the cleaning procedure or the calibrating procedure of the scanner. Refer to Clean the scanner or Calibrate the scanner. - Page 45 Clearing the Wi-Fi connection also applies to your mobile device in the event of a conflict between different scanners. You need to forget the previous scanner in your connection history to connect to the new one. Page 45...
-
Page 46: We Are Here For You
We are here for you To contact us, go to https://support.irislink.com/. Page 46... -
Page 47: Safety Disclaimer
Safety Disclaimer Read the user manual carefully before use, and operate strictly in accordance with the content of the manual. This product is not waterproof. Do not use in splash water or other environments where water could enter the product. You are responsible for any damage caused by water ingress. Page 47... - Page 48 Precautions Place the scanner close enough to the computer for the interface cable to reach it easily. When connecting this scanner to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation.
- Page 49 Safety instructions • Never handle the scanner with damp or wet hands, in nomadic mode, or when used as a fixed unit. • Other than placing a mini SD card or new batteries in the openings provided for the purpose and indicated on the scanner, do not insert objects into any opening as they may touch dangerous voltage points or short out parts and lead to a risk of electrocution.
- Page 50 Legal information Copyright © 2023 I.R.I.S. SA. All Rights Reserved. I.R.I.S. owns the copyrights to the IRIScan™ Anywhere and to this publication. The product described in this document is furnished under a license agreement which states the terms of use of this product. The software may be used or copied only in accordance with the terms of that agreement.
- Page 51 FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC Class B limits are designed to provide reasonable protection against ...
- Page 52 Disposal of Waste Equipment by Users in Private Households in the European Union This symbol on the product or on its packaging indicates that the product cannot be disposed of with your other household waste. Instead, it should be sent to appropriate facilities for recovery and recycling in an effort to protect human health and the environment.
