- Page 1 TECHNICAL MANUAL Audio/video module for 2-wire system Passion.Technology. Design. Art. 4681 / 1621VC...
-
Page 2: Warning
• any purpose other than the intended use, • failure to observe the indications and warnings contained in this Manual / Instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. -
Page 3: Table Of Contents
Art. 1621VC ....................6 External unit installation ..............7 Connections ..................9 4681, 1621VC connections ..............9 4681, 1621VC connections with separate power supply ......9 Remote camera connection (Art. 1621VC only) ........9 Variants ....................10 Module connection ................ 11 External unit module consumption table ..........11 Ikall / Ikall Metal modules..............12... -
Page 4: Description

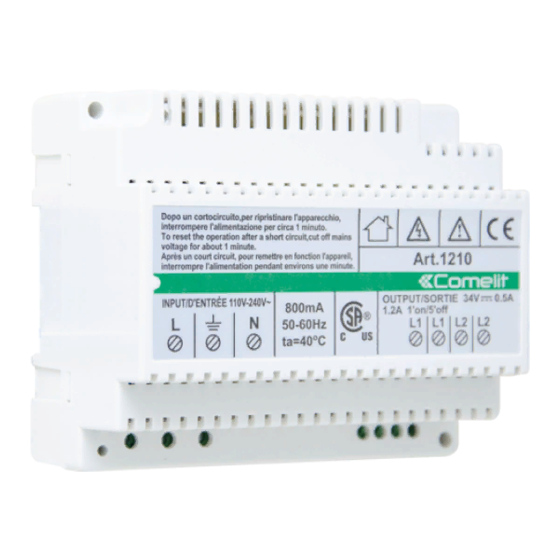

33412M Item 1621VC is an audio module allowing connection of a remote colour PAL camera. It is compatible with Comelit “Building Kit” video entry systems (2 pure wires), exclusively for use in conjunction with riser power supply unit Art. 1210. -
Page 5: Cables For Remote Camera Connection (Art. 1621Vc Only)
Remove both in the case of a separate power supply. 11. Indicator LED: sound activated. 4. CNF switch for confirming special programmes. 12. Colour camera (with Art. 4681 only). 5. The connector is reserved for module 1621VC, for the 13. Indicator LED: lock-release activated. -
Page 6: Technical Specifications
Technical specifications Art. 4681 MAIN SPECIFICATIONS Simplebus Top system Compatible with the Building Kit System Vip system Audio system Audio/video system Camera Colors Video encoding Mpeg Type of sensor 1/3'' CCD Horizontal resolution (TVL) 540TVL Minimum illumination 0,35lux Lens size... -
Page 7: External Unit Installation
The camera must not be installed opposite bright light sources, or in places where the filmed subject is against the light. In dim environments, we recommend additional lighting is provided. Connect the module support frame to earth. Art. 4681 Art. 1621VC... - Page 8 SOLO MT COMPLETO BLUE WHITE Nameplate LED lighting selection. Alternative microphone position (excluding 4 module entrance panel) 360° open close...
-
Page 9: Connections
Connections 4681, 1621VC connections 1210 4681 1621VC Local lock-release button. Active input closed for DOOR OPEN signal 4681, 1621VC connections with separate power supply 1210 1595 120-230 V 4681 1621VC Local lock-release button. Active input closed for DOOR OPEN signal Remote camera connection (Art. -
Page 10: Variants
Variant for using the external unit relay Variant for using a safety lock 230 V 12/24V AC/DC 12V/24V AC-DC 10A MAX 4681 1621VC “C.NC.NO relay activation on 4681 actuator command: 2 sec” 1621VC Set dip switches in permanent mode as shown in figure (Dip... -
Page 11: Module Connection
Module connection On systems with Art. 4681/1621VC and power supply unit Art. 1210, the maximum current available for the external unit modules is 100 mA. Calculate the total power consumption of the modules in your system configuration using the Consumption table. -
Page 12: Ikall / Ikall Metal Modules
Ikall / Ikall Metal modules Connection of button modules 33433, 33434, 33436, 33433M, 33434M, 33436M 4681 1621VC MAX 5 MAX 5 modules (MAX 17 modules with additional power supply) Connection of Art. 3348B, 3348BM 1210 4681 1621VC 3348B 3348BM MAX 2 MAX 2 modules (MAX 17 modules with additional power supply) Connection of Art. -
Page 13: Vandalcom Modules
Vandalcom modules Connection of Art. 3064S and Art. 1172B 1210 2G60000653 N°1 N°2 N°6 MAX 6 with Art. 4681 4681+3268S 3064S 3064S 3064S 3064S 1621VC 1621VC+3262S 1172B 1172B 1172B MAX 6 black Use the cable supplied with Art. 3262S, 3268S Insulate the cables after cutting them MAX 6 Art. -
Page 14: Connection Of Art. 3188A
1595 120-230 V 3188A N°1 N°2 N°15 MAX 15 3064S 3064S 3064S 3064S 4681+3268S 1621VC+3262S 1172B 1172B 1172B MAX 15 Use the cable supplied with Art. 3262S, Art. 3268S Local lock-release button. MAX 15. Connection of Art. 3070S, 3072S 1210... -
Page 15: Modules For Single-Plate External Unit
Modules for Single-plate external unit Connection of Art. 3063D 1210 3063D 4681 1172B 1621VC N°1 2G60000653 N°1 with Art. 4681 1621VC 1172B MAX 6 N°6 3063D MAX 6 black N°6 3063D Use the cable included in Art. 1250IV, Art. 1250IA Insulate the cables after cutting them MAX 6 Art. -
Page 16: Simplekey Modules
Simplekey modules Connection with Art. SK9015 for connection of readers Art. SK9000I and Art. SK9001I 1210 4681 1621VC C NO SK9015 SK9000I SK9001I MAX 5 MAX 5 modules... -
Page 17: Button Programming
Button programming 33433 33434 33436 Set the user code using the dip switches; see addressing table. -
Page 18: Special Programmes
Special programmes Set the dip switches for the function you wish to program, see the table... - Page 19 DIP SWITCHES ON FUNCTIONS CODE De-misting heating element 1,3,5,7,8 OFF (default) 3,5,7,8 Audio-visual messages 1,2,7,8 Hebrew 3,7,8 Polish 1,3,7,8 Catalan 2,3,7,8 Galician 1,2,3,7,8 Basque 2,3,4,7,8 Danish 1,2,3,4,7.8 Norwegian 1,2,5,7,8 Swedish 1,2,3,5,7.8 Italian 4,5,7,8 French 1,4,5,7,8 Spanish 2,4,5,7,8 Dutch 1,2,4,5,7.8 Greek 3,4,5,7,8 English 1,3,4,5,7.8...
-
Page 20: Installation Information
• The module Art. 4681 / Art. 1621VC operates by default as a main external unit (timed busy signal). To set it as a secondary external unit (busy signal active for the whole time the riser is in use), set all the selector DIP switches to ON. - Page 21 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
