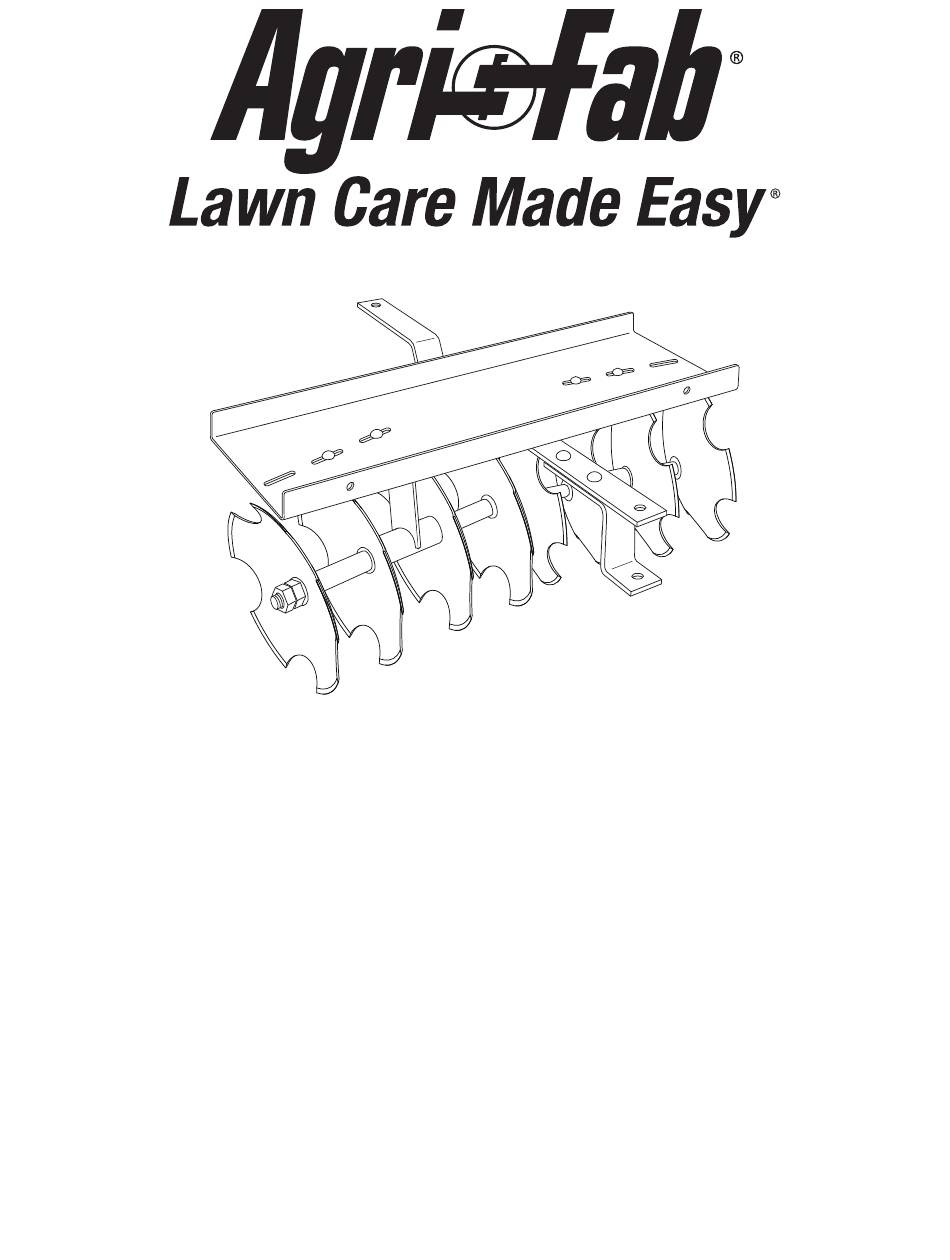

CARTON CONTENTS (Loose Parts in Carton) CONTENIDO DE LA CAJA (Partes Sueltas en la Caja) CONTENU DU CARTON (Pièces en Vrac Dans le Carton) 24852BL3 24850BL1 24851BL1 46857 63510 40106BL1 1. Tray 2. Draw Bar 3. Hitch Bracket 4. Bearing Hanger Bracket (2) 5.
Page 3
HARDWARE CHART - CONTENTS SHOWN ACTUAL SIZE HERRAJES – PIEZAS MOSTRADAS A TAMAÑO REAL GRAPHIQUE DE QUINCAILLERIE – PIÈCES EN TAILLE RÉELLE 43350 47660 43020 HA21362 41657 1540-162 46859 46860 24240 REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION Hex Bolt, 1/2" x 1-1/2" Lg. Hex Nut, 3/4"...
ENGLISH SAFETY RULES Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times, when using power equipment. 1. Read this owners manual and your vehicle and sleeve The disc edges are sharp! hitch owners manuals before using this equipment.
ENGLISH ASSEMBLY INSTRUCTIONS 3. Assemble the hitch bracket to the draw bar using two 1/2" x 1-1/2" carriage bolts and 1/2" nylock nuts. See figure 2. 1/2" x 1-1/2" TOOLS REQUIRED FOR ASSEMBLY CARRIAGE BOLT 9/16" Wrenches 3/4" Wrenches 1-1/8" Wrenches or 10" Adjustable Wrenches Grease Gun DRAW BAR CAUTION: Disc blades have sharp edges.
Page 6
ENGLISH ASSEMBLY OF SINGLE CULTIVATOR ASSEMBLY OF TANDEM CULTIVATORS (Requires purchase of a second cultivator.) The following instructions describe the two types of disc arrangement. The discs can also be mounted farther apart The front cultivator should be assembled as shown in figure by using the outer slots in the tray.
ENGLISH OPERATION ATTACHING CULTIVATOR TO TRACTOR CAUTION: Lock tractor lift handle in down position The disc cultivator is used to break up clods of dirt in plowed when attaching or removing the disc cultivator soil. It can also be used to cultivate between rows of young from sleeve hitch.
ESPAÑOL REGLAS DE SEGURIDAD Cualquier equipo movido por motor puede causar lesiones si se opera inadecuadamente o si el usuario no entiende cómo debe operarlo. Manténgase atento y cauteloso siempre que opere el equipo. Lea el manual de usuario y los manuales de usuario del vehículo 8.
ESPAÑOL OPERACIÓN El arado cultivador que va adelante debe ser armado según muestra la Figura 4. El arado cultivador que va atrás debe ser armado de El arado cultivador a disco se utiliza para romper los terrones en acuerdo con las siguientes instrucciones: Tenga en cuenta que un suelo arado.
FRANÇAIS CONSIGNES DE SÉCURITÉ Tout appareil mécanique risque de provoquer des blessures si ce dernier n’est pas utilisé correctement ou si l’utilisateur ne sait pas comment l’utiliser. Faites preuve de prudence à tout moment lorsque vous utilisez un appareil mécanique. Lisez ce manuel d’utilisation et les manuels d’utilisation de à...
Page 11
FRANÇAIS FONCTIONNEMENT MONTAGE DES CULTIVATEURS EN TANDEM (Ceci requière l’achat d’un deuxième cultivateur) Le cultivateur avant doit être assemblé comme illustré à la figure Le cultivateur à disques est utilisé afin de rompre des mottes de 4. Le cultivateur arrière doit être assemblé suivant les indications terre sur une terre cultivée.
