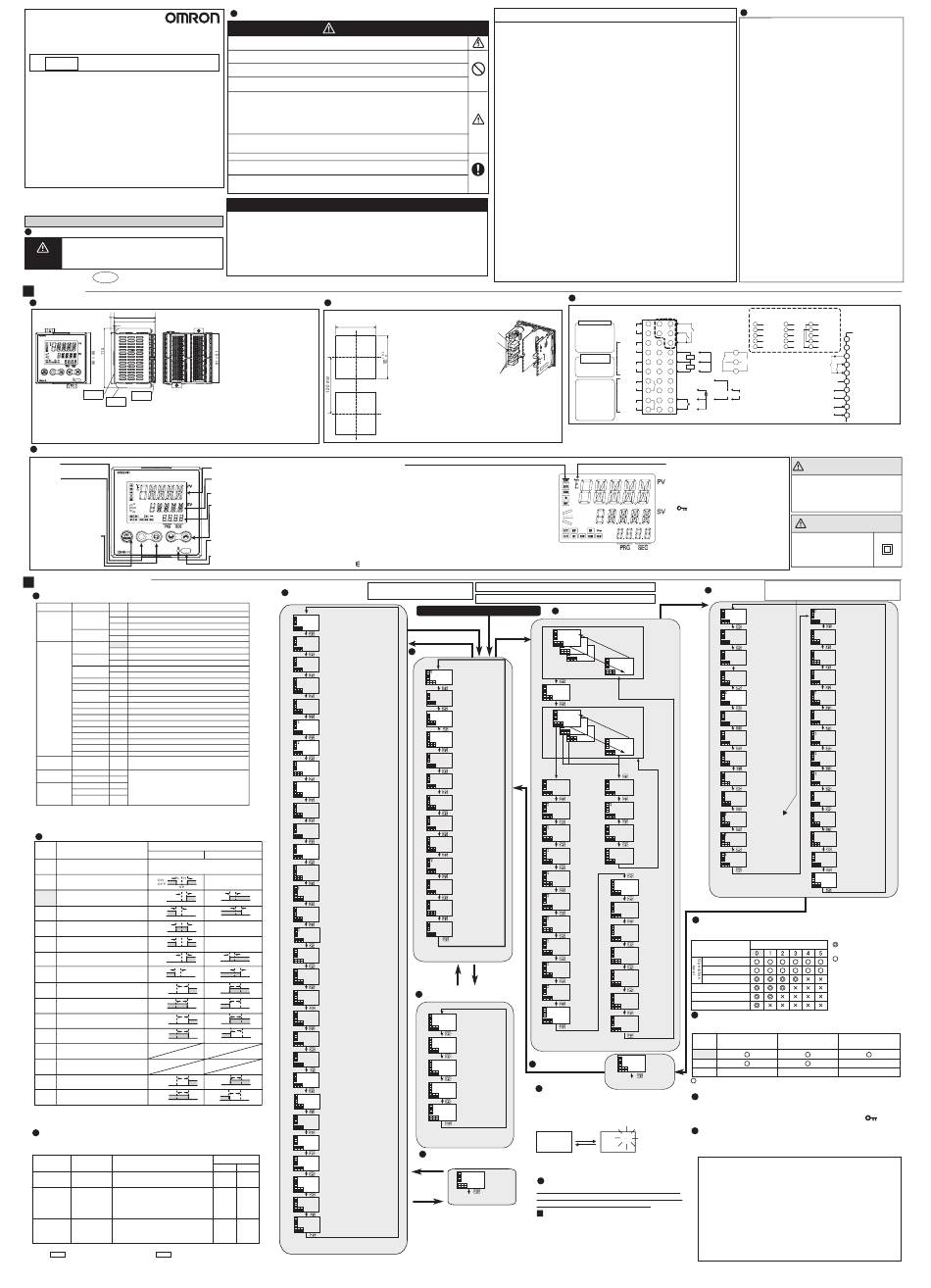

Omron E5AN-HT Instruction Manual

E5AN-HT
Digital Controller
EN Instruction Manual
Thank you for purchasing the OMRON E5AN-HT Digital
Controller. This manual describes the functions, performance,
and application methods needed for optimum use of
the product.
Please observe the following items when using the product.
• This product is designed for use by qualified personnel with
a knowledge of electrical systems.
• Before using the product, thoroughly read and understand
this manual to ensure correct use.
• Keep this manual in a safe location so that it is available for
reference whenever required.
OMRON CORPORATION
©All Rights Reserved
For detailed operating instructions, refer to the E5CN-HT/E5AN-HT/E5EN-HT
Digital Controllers User's Manual (Cat. No. H169).
Significance of WARNINGs and CAUTIONs
Safety Precautions
Key to Warning Symbols
Indicates a potentially hazardous situation which, if
not avoided, is likely to result in minor or moderate
injury or property damage. Read this manual
CAUTION
carefully before using the product.
2153002-0A
AHT1
Wiring
Dimensions
6 79.2
Dimensions (mm)
78
2
Watertight
Terminal
packing
cover
Mounting
bracket
* The main unit can be removed for maintenance without disconnecting the terminal wiring.
* Do not remove the terminal block. Doing so may result in failure or malfunction.
* A Setup Tool port is provided on the bottom of the product. Use this port to connect a personal computer to
the product when using the Setup Tool. E58-CIFQ1 USB-Serial Conversion Cable is required to connect the
personal computer to the product. (Do not use the product with the USB-Serial Conversion Cable left permanently
connected.)
Refer to the instruction manual provided with the USB-Serial Conversion Cable for details on connection methods.
Names of parts on front panel
• Level key
Use this key to change levels:
• Mode key
Press this key to change
the contents of the display.
Press this key for 1 s or
longer for reverse scroll.
O
• Press the key and the
M key together for at least
3 seconds to switch to
protect level.
• Function Key/Run Reset Key
Press this function key
to operate the function
set with the PF Setting.
Operation menu
Input type
Input type Input Setting Input setting range
−200.0 to 850.0 (°C) / −300.0 to 1500.0 (°F)
0
−199.9 to 500.0 (°C) / −199.9 to 900.0 (°F)
Platinum Pt100 1
resistance
2 0.0 to 100.0 (°C) / 0.0 to 210.0 (°F)
thermometer
−199.9 to 500.0 (°C) / −199.9 to 900.0 (°F)
3
JPt100
4 0.0 to 100.0 (°C) / 0.0 to 210.0 (°F)
−200.0 to 1300.0 (°C) / −300.0 to 2300.0 (°F)
K 5
−20.0 to 500.0 (°C)
6 / 0.0 to 900.0 (°F)
Thermocouple
−100.0 to 850.0 (°C)
/ −100.0 to 1500.0 (°F)
J 7
−20.0 to 400.0 (°C)
8 / 0.0 to 750.0 (°F)
−200.0 to 400.0 (°C) / −300.0 to 700.0 (°F)
T 9
−199.9 to 400.0 (°C) / −199.9 to 700.0 (°F)
10
−200.0 to 600.0 (°C) / −300.0 to 1100.0 (°F)
11
E
−100.0 to 850.0 (°C)
12 / −100.0 to 1500.0 (°F)
L
13 −200.0 to 400.0 (°C) / −300.0 to 700.0 (°F)
U
−199.9 to 400.0 (°C) / −199.9 to 700.0 (°F)
14
−200.0 to 1300.0 (°C) / −300.0 to 2300.0 (°F)
15
N
16 0.0 to 1700.0 (°C)
R / 0.0 to 3000.0 (°F)
17
S 0.0 to 1700.0 (°C) / 0.0 to 3000.0 (°F)
18
B 100.0 to 1800.0 (°C) / 300.0 to 3200.0 (°F)
19 0.0 to 2300.0 (°C) / 0.0 to 3200.0 (°F)
W
20 0.0 to 1300.0 (°C) / 0.0 to 2300.0 (°F)
PLII
−50.00 to 200.00 (°C) / −50.00 to 200.00 (°F)
21
K
−50.00 to 200.00 (°C) / −50.00 to 200.00 (°F)
22
J
−50.00 to 200.00 (°C)
23 / −50.00 to 200.00 (°F)
T
Platinum
−50.00 to 200.00 (°C)
24 / −50.00 to 200.00 (°F)
resistance Pt100
thermometer
25 One of the following ranges is used depending on scaling.
4 to 20mA
Current input
26 −19999 to 32400
0 to 20mA
−1999.9 to 3240.0
1 to 5V 27
Voltage input −199.99 to 324.00
0 to 5V 28
−19.999 to 32.400
0 to 10V 29
*The default is"5".
*s.err will be displayed when a platinum resistance thermometer is mistakenly connected while
input type is not set for it. To clear the s.err display, correct the wiring and cycle the power supply.
Alarms
Alarm output function
Setting Alarm type
Positive alarm value (X) Negative alarm value (X)
Output off
0 No alarm function
*1 1 Deviation upper/lower limit
X
ON
2
Deviation upper limit
OFF
SP
X
ON
3
Deviation lower limit
OFF
SP
L H
*1 4 ON
Deviation upper/lower range
OFF
SP
L H
Deviation upper/lower limit ON
5
*1
OFF
standby sequence ON
SP
X
Deviation upper limit
ON
6
standby sequence ON OFF
SP
X
Deviation lower limit ON
7
standby sequence ON OFF
SP
X
ON
8 Absolute value upper limit
OFF
0
X
ON
9
Absolute value lower limit
OFF
0
X
Absolute value upper limit
ON
10
standby sequence ON
OFF
0
X
Absolute value lower limit
ON
11
standby sequence ON OFF
0
12 LBA (only for alarm 1)
13
PV change rate alarm
X
RSP absolute value upper limit ON
14
OFF
0
X
ON
RSP absolute value lower limit
15
OFF
0
*1: Upper and lower limits can be set for parameters 1, 4 and 5 to provide for
different types of alarm. These are indicated by the letter "L" and "H".
• The default alarm type is "2"
Error display (trouble shooting)
When an error has occurred, the No.1 display shows the error code. Take
necessary measure according to the error code, referring the table bellow.
No.1 display Meaning Action
Check the setting of the Input Type parameter,
s.err Input error
(S. Err) check the input wiring, and check for broken or
*2
shorts in the temperature sensor.
After the correction of A/D converter error, turn the
power OFF then back ON again. If the display
A/D converter error
remains the same, the controller must be repaired.
e333
(E333)
*2 If the display is restored to normal, then a
probable cause can be external noise affecting the
control system. Check for external noise.
Turn the power OFF then back ON again. If the
display remains the same, the controller must be
e111 Memory error
repaired. If the display is restored to normal, then
(E111)
a probable cause can be external noise affecting
the control system. Check for external noise.
If the input value exceeds the display limit ( -19999 to 32400), though it is within the control
range, [[[[ will be displayed under -19999 and ]]]] above 32400. Under these conditions,
control output and alarm output will operate normally.
For information on the controllable range, refer to the E5CN-HT/E5AN-HT/E5EN-HT Digital Controllers
User's Manual (Cat. No. H169).
*2: Error shown only for "Process value / Set point". Not shown for other status.
Warning Symbols
CAUTION
Do not touch the terminals while power is being supplied.
Doing so may occasionally result in minor injury due to electric shock.
Do not allow pieces of metal, wire clippings, or fine metallic shavings or filings from installation to
enter the product. Doing so may occasionally result in electric shock, fire, or malfunction.
Do not use the product where subject to flammable or explosive gas. Otherwise, minor injury from
explosion may occasionally occur.
Never disassemble, modify, or repair the product or touch any of the internal parts. Minor electric
shock, fire, or malfunction may occasionally occur.
CAUTION - Risk of Fire and Electric Shock
a) This product is UL listed as Open Type Process Control Equipment. It must be mounted in an enclosure that
does not allow fire to escape externally.
b) More than one disconnect switch may be required to de-energize the equipment before servicing.
c) Signal inputs are SELV, limited energy.
d) Caution: To reduce the risk of fire or electric shock, do not interconnect the outputs of different Class 2 circuits.
If the output relays are used past their life expectancy, contact fusing or burning may occasionally occur. Always
consider the application conditions and use the output relays within their rated load and electrical life expectancy.
The life expectancy of output relays varies considerably with the output load and switching conditions.
Tighten the terminal screws to between 0.74 and 0.90 N•m. Loose screws may occasionally result in fire.
Set the parameters of the product so that they are suitable for the system being controlled. If they are not suitable,
unexpected operation may occasionally result in property damage or accidents.
A malfunction in the Digital Controller may occasionally make control operations impossible or prevent
alarm outputs, resulting in property damage. To maintain safety in the event of malfunction of the Digital
Controller, take appropriate safety measures, such as installing a monitoring device on a separate line.
Suitability for Use
OMRON shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of the products in the customer's application or use of the product.
Take all necessary steps to determine the suitability of the product for the systems, machines,
and equipment with which it will be used.
Know and observe all prohibitions of use applicable to this product.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE
OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN
DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY
RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT
OR SYSTEM.
See also Product catalog for Warranty and Limitation of Liability.
Installation
Individual mounting (mm)
In the pack:
• Main unit
+0.8
92
0
• Watertight packing
• Two mounting brackets
• Instruction manual
• Terminal cover
(Provided only for models
with "-500" suffix.)
• Solderless terminal size: M3.5
• Terminal cover:
(Sold Separately) (Model: E53-COV16)
• USB-Serial Conversion Cable
(Sold Separately) (E58-CIFQ1)
• USB-Infrared Conversion Cable
(Sold Separately) (model E58-CIFIR)
Operation indicators
• No.1 display
Process value or set data symbol
• SUB1: Auxiliary output 1 indicator
• No.2 display
Lit when the function assigned to auxiliary
Set point, set data read-out value or changed output 1 is ON.
input value
• SUB2: Auxiliary output 2 indicator
• No. 3 display
Lit when the function assigned to auxiliary
Program number, segment number, etc.
output 2 is ON.
• Up and Down keys
• SUB3: Auxiliary output 3 indicator
Use the keys to change the values displayed on
the No.2 display.
Lit when the function assigned to auxiliary
Each press of U key increments or advances the
output 3 is ON.
values displayed on the No.2 display.
• HA: Heater burnout alarm/Heater short
Each press of D key decrements or returns the
alarm/Heater overcurrent alarm indicator
values displayed on the No.2 display.
Lit when a heater burnout alarm,heater short
• Ir: Infrared Communications Enabled Indication
alarm, or heater overcurrent alarm has
Lit when communications are enabled. Not lit when
occurred.
communications are disabled.
• WAIT: Lit while the program is in wait status.
• Infrared Communications Receiver
Used when using an infrared cable.
• : Shows the direction of change in the SP.
Operation stopped.
Initial Setting Level
(Control/alarm are both stopped.)
in-t
Input Type *3
5
in-h
Scaling Upper Limit
*6
(only when setting analog input)
100
in-l
Scaling Lower Limit
*6
0 (only when setting analog input)
dp
Decimal Point
*6
(only when setting analog input)
0
c
°C=
Temperature Unit
d-u
f
*6 °F=
c
(C stands for Celsius, F for Fahrenheit)
sl-h
SP Upper Limit
1300.0
sl-l
SP Lower Limit
-200.0
PID ON/OFF
cntl
onof
In ON/OFF control =
pid
pid In 2-PID control =
:
Standard or Heating/Cooling
stnd
s-hc
Standard control =
h-c
Heating and cooling control =
stnd
(Select standard control or heating
and cooling control as required)
cp
*6 Control Period (Heating)
20
(Unit: Seconds)
c-cp
Control Period (Cooling)
*6
(Unit: Seconds)
20
Direct/Reverse Operation
orev
or-r
=
In Reverse Operation (Heating)
or-r
or-d
In Direct Operation (Cooling) =
alt1
Alarm 1 Type:
*6
2
Vary with "L", "H" values
alh1
*6 Alarm 1 Hysteresis
X
ON
0.2
OFF
SP
X alt2
ON
Alarm 2 Type:
*6
OFF
2
SP
Vary with "L", "H" values
alh2
*6 Alarm 2 Hysteresis
0.2
Vary with "L", "H" values
tr-t
X Transfer Output Type
*6
ON
off
OFF
SP
X
tr-h
ON
*6 Transfer Output Upper Limit
OFF
100.0
SP
X
ON
tr-l
OFF
0
*6 Transfer Output Lower Limit
0.0
X
ON
OFF
0
ev-1
X
Event Input 1 Assignment
*6
ON
rr-1
OFF
0
X
ON ev-2
OFF Event Input 2 Assignment
*6
0
adv
sqr
Extraction of Square Root Enable
*6
(Only when analog input is set)
off
t-u
X
ON Program Time Unit
h-m
OFF
0
X
ON
t-pr
OFF Time Setting/Slope Setting
0
time
pru
*6 Slope Time Setting Unit
m
rtsm
Reset Operation
stop
Status at error p-on
Operation after Power ON
Control
cont
Alarm
output
Operates
OFF
as above the eset
upper limit.
Operation at End of Operation
rst
pvst
OFF OFF
*6
PV Start
sp
amov
Move to Advanced
*6
Function Setting Level
0
OFF OFF
Initial setting level enables users to specify their
preferred operating conditions (input type, alarm type,
control method, etc.)
* 3: Refer to the adjoining tables for details of
input types and alarm types.
* 4: Applicable only to models with alarm
functions.
Precautions for Safe Use
Observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects on product
performance and functions. Problems may occasionally occur. Do not handle the Controller in ways that exceed
product specifications.
(1) This product is designed for indoor use only. Do not use or store the product in any of the following places.
•Places directly subject to heat radiated from heating equipment.
•Places subject to splashing liquid or oil atmosphere.
•Places subject to direct sunlight.
•Places subject to dust or corrosive gas (in particular, sulfide gas and ammonia gas).
•Places subject to intense temperature change.
•Places subject to icing and condensation.
•Places subject to vibration and large shocks.
(2) Use/store within the rated temperature and humidity ranges.
Provide forced-cooling if required.
(3) To allow heat to escape, do not block the area around the product.
Do not block the ventilation holes on the product.
(4) Be sure to wire properly with correct polarity of terminals.
(5) Use specified size (M3.5, width 7.2 mm or less) crimped terminals for wiring. To connect bare wires to the
terminal block, use copper braided or solid wires with a gage of AWG24 to AWG14 (equal to cross- sectional
area of 0.205 to 2.081 mm
crimped terminals can be inserted into a single terminal.
(6) Do not wire the terminals which are not used.
(7) Allow as much space as possible between the controller and devices that generate a powerful high- frequency
or surge.
Separate the high-voltage or large-current power lines from other lines, and avoid parallel or common wiring
with the power lines when you are wiring to the terminals.
(8) Use this product within the rated load and power supply.
(9) Make sure that the rated voltage is attained within two seconds of turning ON the power using a switch or relay
contact. If the voltage is applied gradually, the power may not be reset or output malfunctions may occur.
(10) Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before
starting actual control operations to ensure the correct temperature display.
(11) A switch or circuit breaker should be provided close to this unit.
The switch or circuit breaker should be within easy reach of the operator, and must be marked as a
disconnecting means for this unit.
(12) Always turn OFF the power supply before pulling out the interior of the product, and never touch nor apply
shock to the terminals or electronic components. When inserting the interior of the product, do not allow the
electronic components to touch the case.
(13) Do not use paint thinner or similar chemical to clean with. Use standard grade alcohol.
(14) Design system (control panel, etc) considering the 2 second of delay that the controller's output to be set after
power ON.
(15) The output may turn OFF when shifting to certain levels. Take this into consideration when performing control.
(16) The number of non-volatile memory write operations is limited. Therefore, use RAM write mode when
frequently overwriting data during communications or other operations.
(17) The product's Setup Tool port and Infrared communication port are internally connected in models. Stop
transmission from Infrared communication port before using the Setup Tool port.
(18) Read the information provided in the catalog and manual and be sure you understand it before attaching a Control
Output Unit.
(19) Always use suitable tools to dismantle the product for disposal.
(20) Do not continue to use the product if the front surface peels or becomes cracked.
Mounting the output unit
[OUT]
OUT1
E53-RN
When waterproofing is
E53-QN
OUT2
required, fit watertight
E53-Q3
packing on the backside
E53-Q4
of front panel.
E53-C3N
E53-C3DN
E53-V34N
E53-V35N Clamps
Output placement is not required on the E5AN-HTPRR@@
• Insert the main unit through the mounting hole in the panel (1-8 mm
thickness). Insert the mounting brackets (supplied) into the fixing
slots located on the top and bottom of the rear case.
• Alternately tighten the top and bottom screws on the mounting
fixtures applying equal pressure a little at a time until the rachet
rotates freely.
• When more than one machine is installed, make sure that the
ambient temperature does not exceed the specified limit.
• OUT1: Control output 1 indicator
Lit when control output 1 is ON
and not lit when it's OFF.
For a current output, lit except
for a 0% output.
• OUT2: Control output 2 indicator
Lit when control output 2 is ON
and not lit when it's OFF.
For a current output, lit except
for a 0% output.
• CMW: communications writing
enable/disable indicator
Lit when communications writing
is "enabled" and is out when it is
"disabled".
• RSP: Lit during remote SP Mode.
• FSP: Lit during Constant-value SP Mode.
The setting data for the E5AN-HTAA2HB is shown here as an example.
Check the wiring before turning ON the power supply.
*5
Program Setting Level
POWER ON
O
Hold down for
O
Press Key
at least 1 second
for less than
d.prg
O 1 s.
Hold down for
at least 3 seconds
(The No. 3 display
Operation Level
has been omitted.)
PV/SP
25.0
s.err is displayed when
connected sensor is
0.0
different from input type.
s-no
a-m
*6
Auto/Manual Switch
prg d.seg
Program Number
0
seg
Segment No. Monitor
0
hold
*6 Hold
off
adv
*6
Advance
pid
off
*6
stbm
Remaining Standby
*6
Time Monitor
al-1
0.00
*6
0.0
prgt
Elapsed Program
*6
Time Monitor
0.00
al1h
*6
0.0
rptm
Program Execution
*6
Repetition Monitor
0
al1l
*6
0.0
rsp
*6 Remote SP Monitor
*3 0.0
al-2
*4
*6
Heater Current 1
ct1 0.0
Value Monitor
*6
0.0
(Unit: A) *7
al2h
Leakage Current 1 *6
lcr1
0.0
Value Monitor
*6
*3
0.0 *7
(Unit: A)
*4
al2l
Run/Reset
r-r *6
At start of program operation:
0.0
*6
run
rst
At end of program operation:
rst
al-3
*6
0.0
Operation level should normally
be used during operations.
al3h
Hold O and M
Hold O and M
*6
0.0
keys down for at
keys down for at
least 1 seconds
least 3 seconds
al3l
*6
Protect Level
rpt
oapt
Operation / Adjustment
Protect
0
In this level, the SPs and times
icpt
Initial Setting /
are input for the programs.
Communication Protect
0
wtpt PID Setting Level
Setting Change Protect
off
O
Press Key for less than 1 s.
pfpt
AT (auto-tuning)
PF Key Protect
off
AT in Adjustment level
*
Designate "at-2: 100% AT execute" or
prlp
Password to Move
"at-1: 40% AT execute" to execute AT and
to Protect Level
0
"off: AT cancel" to cancel AT.
Restricts which settings can be displayed
at
or changed, and restricts change by key
operation.
off
Advanced Function
Setting Level Also when AT execution ends, the
display automatically returns to "off".
init
Parameter
O Protection function
Hold down Initialization
off
for at least
Protection function, to prevent unwanted settings,
1 second
restricts the setting items to be used or designates
For other information, refer to the
User's Manual (Cat. No. H169). if operation of the key is valid or invalid.
Moving to the next level is
Other functions
possible when the
For parameters in the Advanced Function Setting
password(-169) is input.
Level, PID Setting Level, Monitor/Setting Item
* 5: Operation is stopped when moved to the
Level, and Manual Control Level and for other
initial setting level. (Control/alarm are
information, refer to the
both stopped.)
E5CN-HT/E5AN-HT/E5EN-HT User's Manual
* 6: The grayed-out setting items may not
(Cat. No. H169).
be displayed according to the models
and setting. For information on communications, refer to the
* 7: This function is supported only by E5CN-HT/E5AN-HT/E5EN-HT Communications
models with heater burnout detection.
Manual (Cat. No. H170).
2
). (The stripping length is 5 to 6 mm.) Up to two wires of same size and type, or two
Connections
(The applicability of the electric terminals varies with the type of machine.)
• 100 to 240 VAC
• 24 VAC/VDC (no polarity)
Event Inputs
Control output 1, 2
1 21 11
Relay output Input power
EV2
250 VAC, 5A
supply 2 22 12
EV1
(resistive load)
+
Control Output Unit 3 23 13
Control output 1, 2 Control output 1 Potentiometer Auxiliary output 3
CT2
4 24 14 14
-
Auxiliary output O
CT1
+
1, 2, 3
5 25
15 15
W
Relay outputs Control output 2 CT2
250 VAC, 3 A
6 26 16 16
-
C
(resistive load)
+
DO NOT DO NOT
DO NOT
7 27 17
The E5@N-HT is set USE USE
USE
for a K thermocouple Auxiliary output 2
A
DO NOT DO NOT
8 28
(input type of 5) by 18
USE USE
V mA
default. If a different
−
B
sensor is used, an
9 29 19
−
input error (s.err)
Auxiliary output 1
B DO NOT DO NOT
will occur. Check the
10 30 20
+
USE USE
setting of the Input
Type parameter.
• A heater burnout alarm, heater short alarm, heater overcurrent alarm, or input alarm is output to the output to which the alarm 1 function is assigned.
• The voltage output (control output) is not electrically insulated from the internal wiring. When using a grounded thermocouple thermometer, one or the other of the control
output terminals must not be grounded. (If both terminals are grounded, measurements will be unreliable due to sneak current.)
• The last character of the lot number "R" indicates that reinforced insulation is provided between input power supply, relay outputs, and between other terminals.
• °C / °F : Temperature unit
The temperature unit is displayed
when the displayed value is a
temperature.
When this parameter is set to "°C",
"C" is displayed, and when set to
"°F", " F " is displayed.
• : Protection indicator
Lit when Setting Change Protect is
ON (disables the Up and Down Keys).
• MANU: Manual output indicator
Lit when the Auto/Manual Mode is set
to Manual Mode.
• RST: Lit while the program is being reset.
• HOLD: Lit while the program is in hold status.
O
Press Key Adjustment Level
for less than 1 s.
l.adj
Display Program Selection at
*6
d.prg off
0
d.prg
1
irda
2
*6
d.prg
off
7
spmd
*6
psp
Number of Segments
fsp
Used, 1 to 32
8
0.0
Display Segment Selection,
ct1
END or 0 to Number of
*6
d.seg
end 0.0
Segments − 1
d.seg
0
hb1
1
*6
d.seg
0.0
7
oc1
*6
50.0
lcr1
*6
styp 0.0
PID Set Segment
*6
1 No. ramp n Format
hs1
*6
50.0
sp
Alarm Segment
*6
Value 1 0.0 n SP
ins
*6
0.00
pr
Alarm
Segment
Upper
*6 insh
0.0 n Slope
*6
Limit 1
0.00
time
Alarm
Segment
insl
Lower
*6
0.00 n Time *6
Limit 1 0.00
Alarm
Value 2 link
Adjustment level is for entering set
Program Link
values and shift values for control.
end Destination
Alarm
Upper
O
ts1s Press Key for less than 1 s.
Limit 2 Time Signal 1
*6
0 Set Segment
Alarm Operation/Adjustment protection
Lower
on1
The following table shows the relationship between settings and
Limit 2 Time Signal 1
*6
0.00 ON Time protect limits related to Operation level and Adjustment level.
Alarm
Level
Value 3
of1
Time Signal 1
*6
0.00 OFF Time
Process value
Alarm
PV/SP
Upper
t525
Limit 3 Time Signal 2
Others
*6
0 Set Segment
Program Setting Level
Alarm
Lower
0 on2 Adjustment level
Limit 3 Time Signal 2
*6
0.00 ON Time PID Setting Level
Program
Initial setting/Communications protection
0 Repetitions of2
Time Signal 2 This protect level restricts movement to the initial setting level,
*6
0.00 OFF Time communications setting level and advanced function setting level.
Initial setting
Set value
0
d.pid
Display PID
1
Selection
1
2
: Change to other levels possible
For other information, refer to the
User's Manual (Cat. No. H169).
Default setting : 0
Setting change protection
Setting changes by key operation are restricted.
OFF off : Setting can be changed by key operation
ON on : Setting cannot be changed by key operation ("
"at" flashes
(Protect level settings can all be changed.)
"100%AT Execute"
PF key protection
at
U
Protection can be set for the PF Key operation.
at-2 OFF "off": PF Key enabled.
D
ON "on" : PF Key disabled.
"AT cancel"
OMRON EUROPE B.V.
Wegalaan 67-69, NL-2132 JD Hoofddorp The Netherlands
Phone 31-2356-81-300
FAX 31-2356-81-388
OMRON ELECTRONICS LLC
One Commerce Drive Schaumburg, IL 60173-5302 U.S.A
Phone 1-847-843-7900
FAX 1-847-843-7787
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08 (Lobby 2),
Alexandra Technopark, Singapore 119967
Phone 65-6835-3011
FAX 65-6835-2711
OMRON Corporation
Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN
Specifications
Power supply voltage 100 to 240 VAC, 50/60 Hz or
24 VAC, 50/60 Hz/24 VDC
Operating voltage range 85 to 110% of the rated voltage
Power consumption Approx. 12 VA (100 to 240 VAC)
Approx. 8.5 VA (24 VAC)/5.5 W (24 VDC)
Indication accuracy Thermocouple:
(Ambient temperature: 23°C) (±0.1 % of indication value or ±1°C,
whichever is greater) ±1 digit max.
Platinum resistance thermometer:
(±0.1 % of indication value or ±0.5°C,
whichever is greater) ±1 digit max.
Analog input: ±0.1 % FS ±1 digit max.
Event input Output current: approx. 7 mA per contact.
Contact input ON:1 kΩ max., OFF: 100 kΩ min.
No-contact input ON: residual voltage 1.5 V max.,
OFF: leakage current 0.1 mA max.
Control output 1 and 2 Relay output: SPST-NO,
250 VAC, 5 A (resistive load)
Electrical life of relay: 100,000 operations
Control Output Unit
Control method ON/OFF or 2-PID control
Auxiliary outputs Relay outputs: SPST-NO,250 VAC, 3 A
(resistive load),
Electrical life of relay: 100,000 operations
Ambient temperature –10 to 55°C
(With no condensation or icing)
Ambient humidity 25 to 85%
Storage temperature –25 to 65°C
(With no condensation or icing)
Altitude Max. 2,000 m
Recommended fuse T2A, 250 VAC, time-lag,
low-breaking capacity
Weight Approx. 310 g (main unit only)
Degree of protection Front panel: IP66
Rear case: IP20, Terminal section: IP00
Installation environment Installation category II, pollution
degree 2 (as per IEC61010-1)
Memory protection Non-volatile memory
(Number of write operations: 1,000,000
at an ambient temperature of 25°C)
Input Position proportional potentiometer input,
Remote SP input
4 to 20 mA DC, Load: 600 Ω max.
Transfer output
Communications
RS-232C RS-422 RS-485
SD RDB B(+)
11 11 11
RD RDA A(−)
12 12 12
SG SG DO NOT USE
13 13 13
21
DO NOT USE SDB B(+)
21 21 21
A(−)
22 DO NOT USE 22 SDA 22
22
23
Auxiliary EV3
output 3
24
EV4
25
DO NOT 26
USE
+ +
27
Transfer output
4-20 mA DC
28 (Load: 600 Ω
− max.)
−
+
29
Remote SP input
4-20 mA DC
30
−
Conformance to EN/IEC Standards
This is a class A product.
In residential areas it may cause radio
interference, in which case the user may
be required to take adequate measures
to reduce interference.
Conformance to Safety Standards
Reinforced insulation is
provided between input power
supply, relay outputs, and
between other terminals.
Only the value set to the "ins: Temperature Input Shift" parameter is applied to the entire
temperature input range. When the process value is 200 °C, the process value is treated as
201.2 °C after input shift if the input shift value is set to 1.2 °C.The process value is treated as
198.8 °C after input shift if the input shift value is set to –1.2 °C.
*6 p
Adjustment Level Proportional Band
8.0
AT Execute/Cancel
i
Integral Time
at-2
*6
100%AT Execute
233.0 (Unit: secs)
at-1
40%AT Execute
d
Infrared
Derivative Time
*6
Communications
40.0 (Unit: secs)
Usage
c-sc
*6 Cooling Coefficient
SP Mode
1.00
c-db
*6
Constant SP Dead Band
0.0
Heater Current 1
of-r
Manual Reset Value
Value Monitor
*6
(Unit: %)
50.0
*7
(Unit: A)
Heater Burnout
hys
Hysteresis
Detection 1
*6
1.0 (Heating)
*7
(Unit: A)
Heater Overcurrent
chys
Hysteresis
Detection 1 *6
(Cooling)
1.0
(Unit: A) *7
Leakage Current 1
wt-b
Value Monitor
*6
Wait Band
off
*7
(Unit: A)
ol-h
HS Alarm 1
*6 MV Upper Limit
*7
(Unit: A) 105.0
ol-l
Temperature Input Shift *6 MV Lower Limit
-5.0
(Unit:°C or°F)
Upper Limit Temperature
orl
Input Shift Value MV Change Rate Limit
*6
when 2 point input shift 0.0
is selected
Lower Limit Temperature sqrp
Extraction of Square
*6
Input Shift Value
Root Low-cut Point
0.0
when 2 point input shift
is selected
stb
Standby Time
0.00
: Can be displayed
Set value
and changed
: Can be displayed
× : Display or shifting to
another level is not
possible.
Default setting : 0
Communications Advanced function
level setting level setting level
×
× × ×
× : Change to other levels not possible
" will light.)
