Advanced Digital Temperature Controller
E5AN-H/E5EN-H
A New High-performance Controller:
High Resolution, High Speed, and High Input Accuracy.
With Logic Operations and preventive maintenance functions.
Plus Infrared Port on Front Panel.
• High-resolution display with 5 digits/0.01°C display.
• High-speed sampling cycle of 60 ms.
• High Accuracy
Thermocouple/Pt input: ±0.1% of PV
Analog input: ±0.1% FS
• Universal inputs on all models (thermocouple, PT, analog) to
handle various sensors with one Controller. Models also available
with Remote SP.
• A PV/SV-status display function can be set to displaying
the PV or SV and the status of the Temperature Controller
(auto/manual, RUN/STOP and alarms).
• Flexible contact outputs with logic operations (AND, OR, and
delays) set from the Support Software (CX-Thermo Ver. 4.0)
• Preventive maintenance for relays using a Control Output ON/OFF
Counter.
• Model available with position-proportional control
Main I/O Functions
Universal Sensor Inputs
• Universal thermocouple/
Pt/analog
(current/voltage) inputs.
Indication Accuracy
• Thermocouple/Pt input:
±0.1% of PV
• Analog input:
±0.1% FS
Sampling Period and control
update
• 60 ms
Downloaded from Elcodis.com electronic components distributor

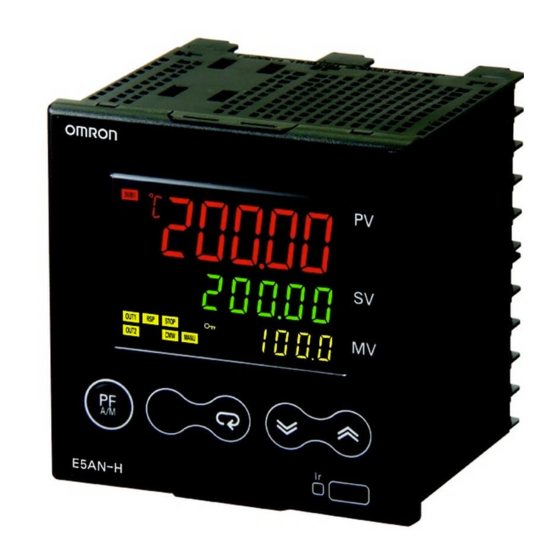

E5AN-H
Remote SP Input
Event Inputs
• None
• Two
• Four
PF Key
Control Output 1
(Programmable (built-in)
key function)
• SSR outputs
Advanced Digital Temperature Controller
E5EN-H
3-line Display
Simultaneously displays set items, such as the
PV, SV, and MV.
5-digit, 11 segment display with high resolution of 0.01°C
Infrared port
USB
Control Output 2
(built-in) Output Unit
• SSR outputs
• Relay output
• Voltage output (for driving SSR)
• Current output
• Linear voltage output
Output Unit
• Relay output
• Voltage output (for driving SSR)
• Current output
• Linear voltage output
(96 x 96 mm and 48 x 96 mm)
96 × 96 mm
E5AN-H
Refer to Safety Precautions on page 22.
• Auto/manual switching
• Temperature Controller
Auxiliary Outputs
status display
• Two
• Simple program
• Three
function
• Logic operations
Computer Support Software
• Control output ON/OFF
CX-Thermo
count alarm
• PV change rate alarm
• Models optional with
RS-485 or RS-232C
communications
E5AN-H/E5EN-H
48 × 96 mm
E5EN-H
