- Page 1 FILTER AMBICLEAN 5000 SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE N° W000373567 8695 8472 EDITION : EN Instructions for use REF : REVISION : A DATE : 10-2021 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
FILTER INSTALLATION ......................10 DIMENSIONS AND LAYOUT ....................10 STARTING UP PROCEDURE ....................11 E - OPERATING MANUAL ........................ 12 F - MAINTENANCE ..........................18 FILTER MAINTENANCE ......................18 ELECTRICAL DIAGRAM ......................19 SPARE PARTS ........................23 PERSONAL NOTES .......................... 24 AMBICLEAN 5000... - Page 4 8695 8472 AMBICLEAN AMBICLEAN 5000 FILTER TYPE : W000373567 CE/EU DECLARATION OF CONFORMITY Dear customer, this CE/EU declaration of conformity certifies that the supplied equipment complies with applicable laws and regulations when used in accordance with the enclosed instructions. Any other assembly or modification would void our certification.
-
Page 5: A - Introduction
Before the filter is used by a new user, make sure that they have read this manual and understood all the explanations provided. For any further information, please feel free to contact the technical departments of LINCOLN ELECTRIC. MACHINE GUARANTEE This machine is guaranteed for 12 months from the date of purchase. -
Page 6: B - General Safety Instructions
(speed of air in the piping) and head loss. In accordance with the regulations of CARSAT and INRS, the installation must be inspected from time to time to make sure that it continues to comply with its reference values. AMBICLEAN 5000... -
Page 7: Personal Protection
If the filter is replaced, use another one with the same part number (shade number). Persons in the vicinity of the operator, especially any helpers, must be protected by means of suitable screens, anti-UV goggles or, if needed, masks with suitable protective filters (EN 139). AMBICLEAN 5000... - Page 8 A work permit procedure setting out all the safety measures must systematically be set up. Make sure that ventilation is appropriate, paying special attention to: — under-oxygenation — over-oxygenation — excess fuel gas AMBICLEAN 5000...
-
Page 9: Filtration Of Fumes And Dust
— Not obstruct the air outlet of the machine. — Not introduce external elements into the filter (paper, cloths, cigarette butts etc.) — Replace the filter medium with new original LINCOLN ELECTRIC medium, which alone can guarantee the filtration characteristics. -
Page 10: C - Description

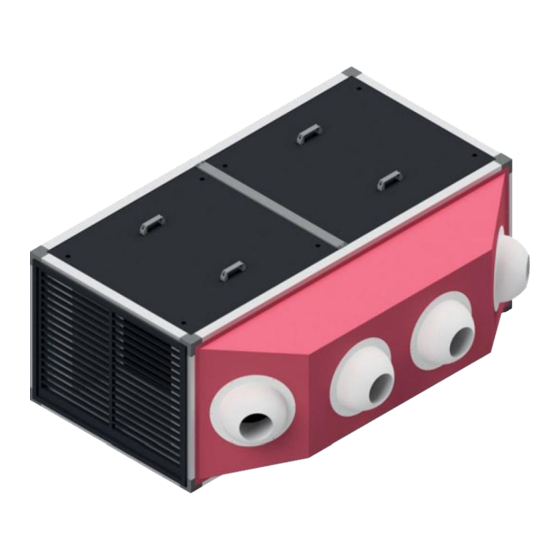

DESCRIPTION OF THE EQUIPMENT The AMBICLEAN 5000 is designed for small workshops that generate a small quantity of dust resulting from welding operations. The fan has variable frequency drive and operates based on the actual need for extraction, thus enabling considerable energy savings. -
Page 11: Composition Of The Filtration System
Automatic on/off clock Fan off pushbutton Fan on pushbutton Manual/auto switch Emergency stop button Electrical cabinet (interior components): Motor supply protection Terminal block Transformers Circuit breaker AMBICLEAN 5000... -
Page 12: Operating Principle
The pressure difference through the cassettes is continuously monitored. When the difference exceeds 500 Pa, a red indicator goes on and a buzzer sounds. In such a case, the filter continues to operate but in degraded mode, and the filter cassettes must absolutely be changed. AMBICLEAN 5000... -
Page 13: Technical Data
TECHNICAL DATA Fan: Type: Fan VCAAT 315 – 3kW Voltage : 400V 50Hz IP55 Cl F Frequency : 50Hz Rotation speed : 1250rpm Flow rate: 5000 m³/h at 800 PA Belt drive system: AMBICLEAN 5000... -
Page 14: D - Assembly And Installation
It is to be fixed along a wall, on a platform, on a stand, at a height of 4 to 5 m depending on the height of the room. Then adjust the direction of the nozzles so as to have an air jet distributed evenly throughout the workshop and allow a return flow to the AMBICLEAN. AMBICLEAN 5000... -
Page 15: Starting Up Procedure
4 x 2,5 4x10 mm² W000010103 11 kW 4 x 4 4x16 mm² W000010104 15 kW 4 x 6 4x25 mm² W000010105 18,5 kW 4 x 10 4x35 mm² W000010106 22 kW 4x10 30 kW 4 x 16 AMBICLEAN 5000... -
Page 16: E - Operating Manual
SEE BOOKLET APPENDED TO THESE INSTRUCTIONS 24H AM/PM: Setting the display format. +1H: Communication of summer/winter time : Display of the day of the week : On/Off : Constant On/Off : Automatic service +/-: Adjustment keys Res: Reset Menu: Programming OK: Confirmation AMBICLEAN 5000... - Page 17 Goes on when the fan is operating LOC/REM Switches between the 2 modes. (local/remote) key Goes on when the Local mode is LOC/REM activated indicator (variable drive setting) Down key Changing of values Up key Changing of values AMBICLEAN 5000...
- Page 18 Max. frequency (Hz) Min. regulation frequency (Hz) Max. regulation frequency (Hz) Mains frequency Mains voltage Is set automatically based on Thermal protection the power When you change settings, the fan must be stopped; otherwise, the changes will not apply. AMBICLEAN 5000...
- Page 19 The setting starts flashing to indicate memorising and the display goes back to its initial condition by displaying the frequency or power of the motor depending on the choice. The setting FC on the AMBICLEAN 5000 must be set to the value 16...
- Page 20 Tips: 1. Always measure the voltage output from the CP50 to be sure that the sensor is sending information to the variable drive. 2. The setpoint to enter depends on the vacuum with which you want to work AMBICLEAN 5000...
- Page 21 Variable drive overload fault Motor overload fault Overheating fault or thermal sensor fault Etn1 Self-adjustment error EtyP Variable drive type error External thermal input E-18 VIA cable break E-19 Error in communication between CPUs E-20 V/F control error AMBICLEAN 5000...
-
Page 22: F - Maintenance
(When extraction is no longer adequate). The AMBICLEAN ESSENTIAL 5000 uses filter cassettes with a unit filter surface of 42m², class EPA H13. Only original cassettes from LINCOLN ELECTRIC, part number W000373568 provides the maximum efficiency of the filter. AMBICLEAN 5000... -
Page 23: Electrical Diagram
8695 8472 / A ELECTRICAL DIAGRAM Power AMBICLEAN 5000... - Page 24 8695 8472 / A Control AMBICLEAN 5000...
- Page 25 8695 8472 / A Terminal block AMBICLEAN 5000...
- Page 26 8695 8472 / A Location of components AMBICLEAN 5000...
-
Page 27: Spare Parts
TRANSPARENT GREEN PUSHBUTTON MOELLER part no.219.927 TRANSFORMER 50VA 400/24V EBA/CEC part no TR50VA TRANSFORMER 50VA 400/230V EBA/CEC part no TR50VA Filter Reference Description Part number Quantity FILTER CASSETTE 42m² W000373568 BELTS PLEASE ENQUIRE VARIABLE FREQUENCY DRIVE (in filter) W000381518 ATV212 AMBICLEAN 5000... -
Page 28: Personal Notes
8695 8472 / A PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com AMBICLEAN 5000...
