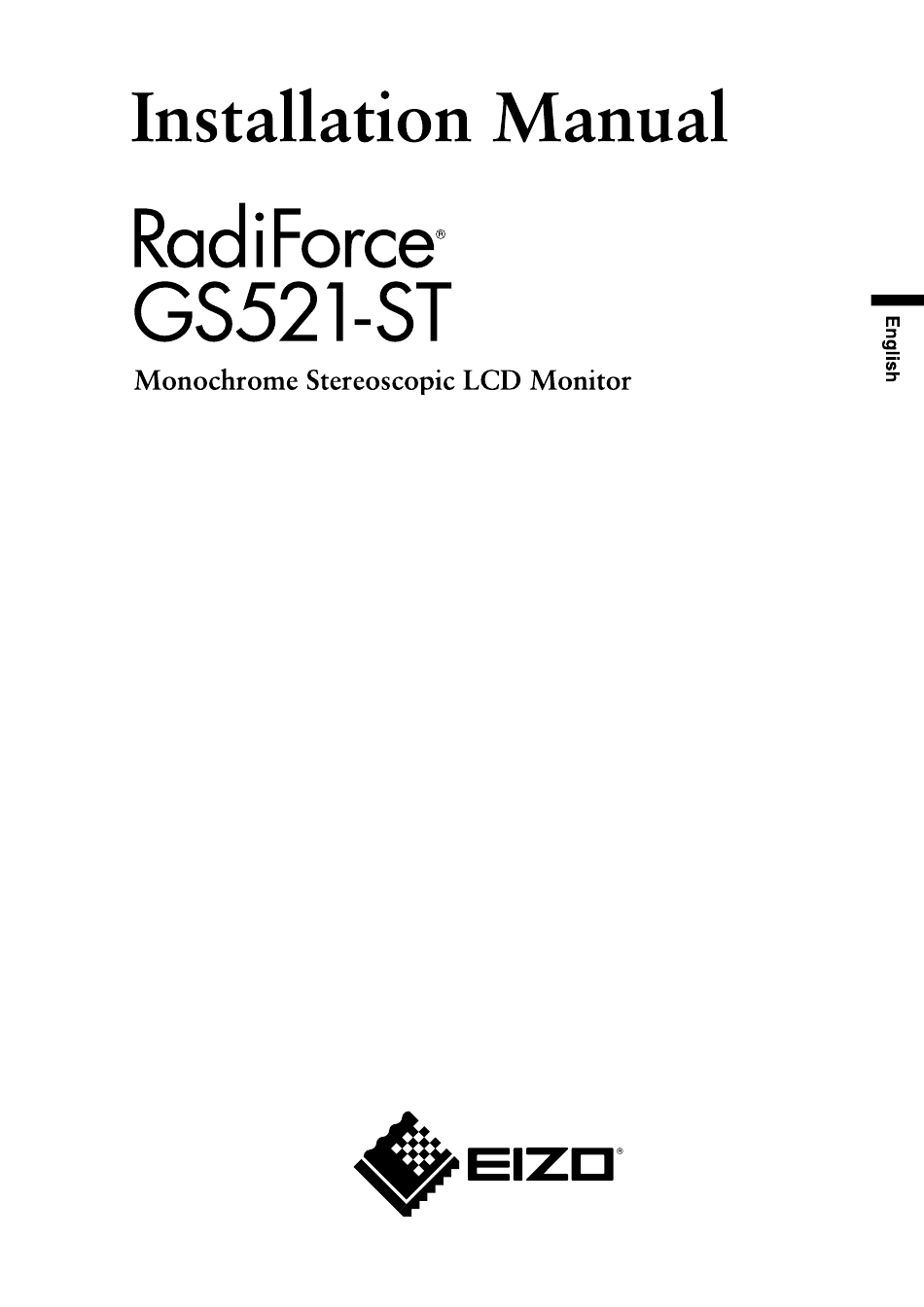

- Page 1 Important Please read this Installation Manual carefully to familiarize yourself with safe and effective usage.
-
Page 2: Safety Symbols
EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice. - Page 3 PRECAUTIONS To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below). WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice.
- Page 4 WARNING The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. Use the correct voltage. • The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
- Page 5 CAUTION Firmly fix the half-silvered mirror and attach the fall prevention cap. Failure to do this may cause the half-silvered mirror to fall, resulting in injury. When raising the half-silvered mirror, make sure that it is locked. Never put your head under the upper monitor. To view a two-dimensional image, raise the half-silvered mirror and firmly lock it.
-
Page 6: Notice For This Monitor
Notice for this monitor This product is intended to be used in displaying and viewing digital images including those of digital mammography for review and analysis by trained medical practitioners. Caution: Federal law (USA) restricts this device to sale by or on the order of a physician. This product has been adjusted specifically for use in the region to which it was originally shipped. -
Page 7: To Use The Monitor Comfortably
Cleaning Attention • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet, panel, half-silvered mirror, or polarized glasses and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet, panel, half-silvered mirror, or polarized glasses. -
Page 8: Package Contents
Monitor （Upper） Monitor （Lower） ・ Fall prevention cap×2 ・ Power cord×2 ・ Digital signal cable （ DVI） ： DD200-DL×2 ・ Digital signal cable （ DisplayPort） ： PP200 × 2 ・ EIZO USB cable ： MD-C93×2 ・ Surface fastener and pad for fixing the sensor x 1 each ・ Polarized Glasses （ with case） ×2 ・ EIZO LCD Utility Disk ・ Installation Manual （this manual) ・ Userʼs Manual ・ Cleaning Kit “ScreenCleaner”... - Page 9 Attach the upper monitor to the lower monitor. Hook the upper monitor onto the tabs of the lower monitor and then engage it with the protrusions. Attention • Check that there are no foreign materials on the joint section of the upper and lower monitors. Protrusion Using a screwdriver, tighten the upper monitor screws (4 locations) to fix the upper and lower monitors.
- Page 10 Connect necessary cables to the upper and lower monitors. Connect the upper monitor signal cable to the input signal connector for the right eye image and the lower monitor signal cable to the input signal connector for the left eye image on the PC. Connect the power cords to the power connectors for the upper and lower monitors and the standard power outlet.
- Page 11 Attach the half-silvered mirror. Insert the half-silvered mirror pins from the top into the grooves inside the left and right arms. Then pull the half-silvered mirror toward you. Attach the left and right fall prevention caps. Attention • Firmly tighten the caps or the half-silvered mirror may fall. Installation...
- Page 12 This completes the installation procedure. Attention • If the half-silvered mirror angle needs to be adjusted, tighten or loosen the angle adjustment screw until the angle is adjusted. For the basic operations, refer to the User's Manual. Angle adjustment screw Installation...
- Page 13 Calibration Attention • If the half-silvered mirror angle needs to be adjusted, tighten or loosen the angle adjustment screw until the angle is adjusted. Connect the sensor to the downstream USB port of the monitor or PC and hang it on the monitor panel surface. Affix one side of the surface fastener to the left hook surface.
- Page 14 Phone: +86 512 6252 0100 Fax: +86 512 6252 1508 〒924-8566 石川県白山市下柏野町 153 番地 Siemensallee 84, 76187 Karlsruhe, Germany Phone: +49 721 20321 0 Fax: +49 721 20321 471 http://www.eizo.com http://www.eizo.co.jp 4th Edition-September, 2013 Printed in Japan. 00N0L611D1 Copyright © 2010-2013 EIZO Corporation All rights reserved. (U.M-GS521-ST-SETUP)
