- Page 1 XL15W Mounting Bracket Kit Instructions 7772-K915 Issue C Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Table of Contents Copyright XL15W Mounting Bracket Kit Contents Installation Procedure Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 4 Revision Record Issue Date Remarks Apr 2021 First Issue Dec 2021 Added Warning statement Dec 2023 Added illustration in the Introduction Added XL15 Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.

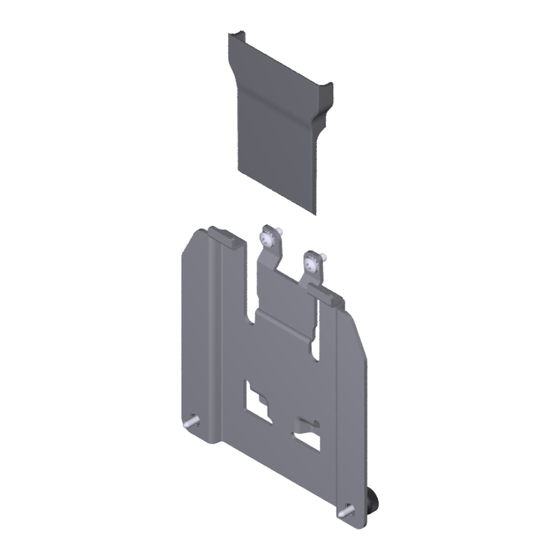

- Page 5 XL15W Mounting Bracket This kit provides a mounting bracket to install the XL15 or XL15W Display on the neck of the NCR CX7 All-in-One POS (7772). Kit Contents Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 6 Base without Integrated Power Supply b. thumbscrews for Base with Integrated Power Supply 2. Pivot the Front Neck Cover away from the Neck. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 7 4. Remove the Base Rear Foot (2 screws). 5. Pivot the Back Neck Cover away from the Neck. The Cover has a simple snap fit connection at the top. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 8 6. Install the XL15W Mounting Bracket on the Neck. a. Insert the Bracket Hooks on the Neck. b. Secure the Bracket to the Neck with two (2) screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 8. Reinstall the Base Rear Foot. 9. Reinstall the Front Neck Cover. 10. Connect the XL15 / XL15W Display Power Cable and Display Port Cable and route them as shown. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 11. Hook the XL15 / XL15W Display on the two (2) tabs of the Mounting Bracket. 12. Tighten the thumbscrews to secure the XL15 / XL15W Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 11 13. Connect the XL15 / XL15W Display Cables to the CX I/O Base. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
