Pentair GOYEN IS Series Products Installation Instructions

IS/ISP SERIES
INTEGRATO SEQUENCER
DESCRIPTION

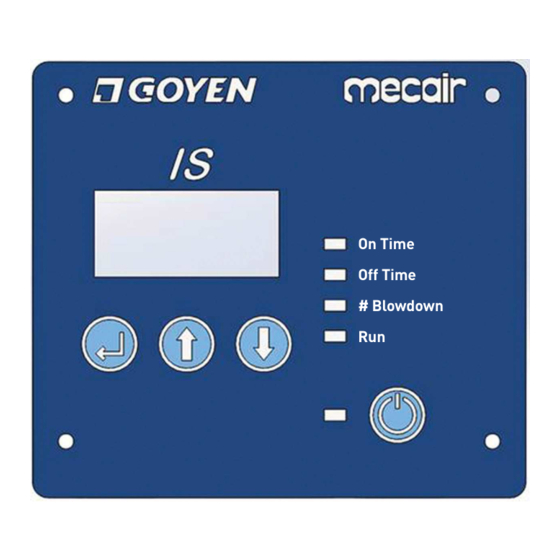

The Integrato Sequencer (IS & ISP) features integrated controls
intended for use with larger reverse pulse jet filter cleaning
systems. The IS & ISP have been designed to operate across a
wide range of environmental conditions. It is suitable for use with
all types of filters, including bags, cartridges, sintered metal or
ceramic filters.
The IS sequencer operates in continuous mode, whereas the ISP
has a built-in differential pressure sensor, allowing this sequencer
to be demand driven.
IS & ISP may be ordered as the sequencer only or in an enclosure
(polycarbonate).
TECHNICAL CHARACTERISTICS & PERFORMANCE
dP Support 0 to 4.5 kPa
Input Voltage AC: 85–275 V @ 50/60 Hz
Output Voltage AC: 85–275 V @ 50/60 Hz (same as input)
DC: 24 V
Maximum Input Power AC IN, AC OUT Model: 225 W
AC IN, DC OUT Model: 65 W
Discrete Solenoid Outputs 12, 20 or 40 outputs
Enclosure Polycarbonate or no enclosure
Protection Rating Polycarbonate: NEMA 1, 3, 3S, 4, 4X, 6,
6P & 12, IP65
Operating Temperature Non-ATEX approved products:
−40°C to +70°C (−40°F to +158°F)
Non-ATEX approved products with 3 DC
pilot valves in parallel:
−20°C to +70°C (−4°F to +158°F)
ATEX approved enclosure products:
−20°C to +50°C (−4°F to +122°F)
ON & OFF Time ON: 30 ms to 1000 ms, OFF: 1 s to 1000 s
Inputs Voltage Free: Fan Stop, Low Header Alarm
Outputs Voltage Free: Coil Error.
Analogue Output: 4–20 mA dP signal on
the ISP
Controls up to 40 individual outputs.
AC outputs can have up to 10 pilot valves
connected in parallel.
DC outputs can have up to 3 pilot valves
connected in parallel.
See Operating Temperature for more
details.
IS/ISP units inside a polycarbonate enclosure have ATEX approval:
II 3 D Ex tc IIIC T52°C Dc
WARNING: POTENTIAL ELECTROSTATIC CHARGING HAZARD.
CLEAN ONLY WITH A DAMP CLOTH.
WARNING: FOR BARE BOARD PRODUCTS, USE AN
APPROPRIATE ENCLOSURE.
WARNING: FOR ATEX APPLICATION DO NOT OPEN WHEN
ENERGISED OR WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT.
©COPYRIGHT Goyen Controls Co. Pty. Ltd.
CIRCUIT BOARD LAYOUT
ISP12
1
ISP40
1
2
1
2
3
4
5
6
Tamb: -20°C to +50°C
7
8
9
1/56
PRODUCT INSTALLATION INSTRUCTIONS
GOYEN IS/ISP SERIES CONTROLLER
12
11
16
3
2
5
4
5
4
11
16
3
4
5
AC Input Voltage: Electrical connection to the board. Active, Earth
and Neutral connections. Cable size 14–20 AWG for the phase
conductors, with the earth wire being greater or equal to the
phase conductors.
ON:OFF Power Switch: Switch power the board ON and OFF.
Fuse (Over Current Protection): Replacement fuse T2.5 A 250 V
(slow blow).
Outputs Common Terminal: This is the common terminal for all
the 12 solenoid outputs. Cable size 12–20 AWG.
Discrete Solenoid Output Terminals: Connect each solenoid wire
to a separate output terminal. Cable size 12–20 AWG.
Coil Alarm Output (Voltage Free): This output triggers when the
coil fails to pulse correctly. It may indicate a fault with the coil or
wiring to that coil. Normally Open. A closed contact will indicate
a coil error. Cable size 14–26 AWG.
4–20 mA dP Output: This output mirrors the output of the built in
dP sensor in the form of a 4–20 mA signal. (ISP only)
Low Header Alarm Input (Voltage Free): This input allows for
the connection of a sensor to monitor the header tank pressure.
In the event the pressure drops below the preset level, the
pulsing cycle is paused. Normally Open. A closed contact will
pause the cleaning cycle. displaying LoH. Cable size 14–26 AWG.
Fan Stop Input (Voltage Free): This input is used to stop the
controller remotely. It may be connected to the blower fan control
so the cleaning cycle automatically pauses in the event the fan
stops. Normally Open. A closed contact will stop the cleaning
cycle, displaying FSP. Cable size 14–26 AWG.
DEINE-012
ISSUE: 9 DATE: 11.08.2017
15
14
13
10
9
8
7
6
15
13
12
14
10
9
8
7
6
