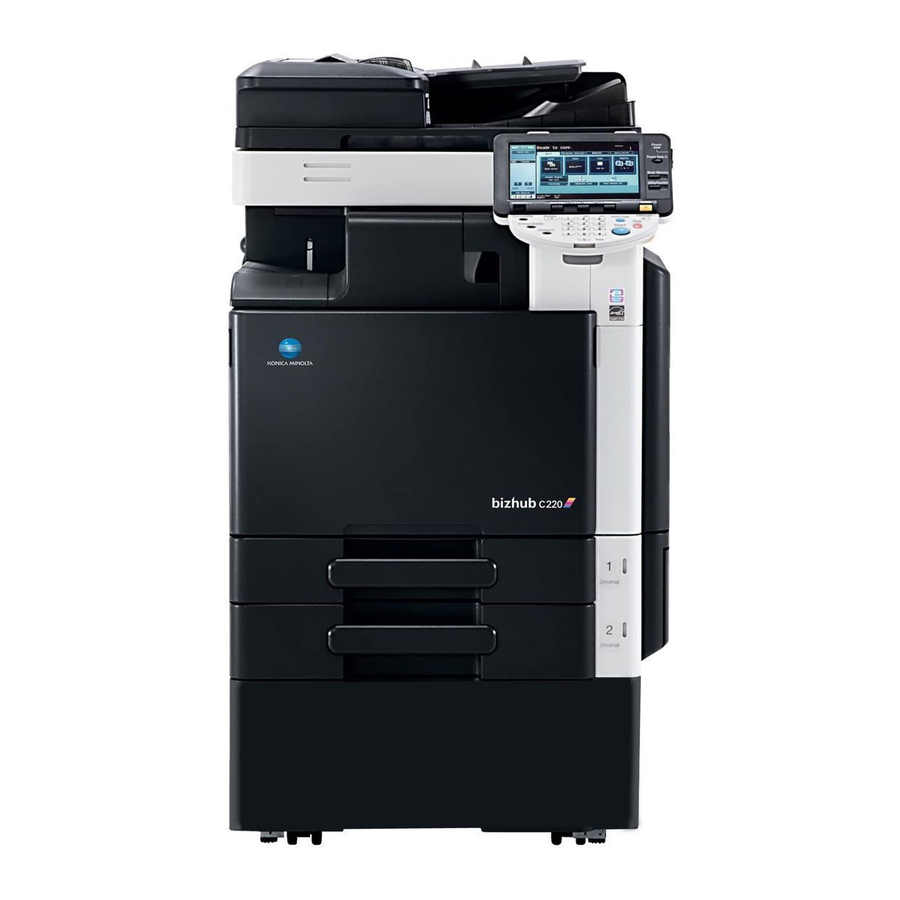

Konica Minolta bizhub C220 Setup Instructions
  1. Manuals
  2. Brands
  3. Konica Minolta Manuals
  4. Printer
  5. bizhub C220 Series
  6. Setup instructions
Konica Minolta bizhub C220 Setup Instructions

Konica Minolta bizhub C220 Setup Instructions

Hide thumbs Also See for bizhub C220:
Table of Contents

Advertisement

Quick Links

Download this manual
bizhub C220 /C280/ C360
bizhub vCare/CS Remote Care
HTTP (One-Way) Setup Instructions
Version 1.6
Created:12/13/10

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta bizhub C220

Summary of Contents for Konica Minolta bizhub C220

  • Page 1 C220 /C280/ C360 bizhub vCare/CS Remote Care HTTP (One-Way) Setup Instructions Version 1.6 Created:12/13/10...

  • Page 2: Table Of Contents

    First Call to the vCare System Printing a vCare Communication Log Purpose: This documentation is for setting up bizhub C220 / C280 /C360 vCare/CSRC One–way (Simplex) HTTP communication.. Convention: bizhub vCare is the US brand used by KMBS for Konica Minolta’s worldwide CS Remote Care System (CSRC).

  • Page 3: Administrative Requirements Prior To Mfp Http Setup

    1. Device ID: The Device ID for MFP must match the 13 digit ID configured on CSRC Server. The Device ID is the serial number for the MFP. This setting is hard-coded in the bizhub C220 / C280 /C360 vCare/CSRC settings. 2. Center ID: This ID is used by the vCare/CSRC Communication Server.

  • Page 4: Configuring Mfp For One-Way (Http) Communication

    2. Press Utility/Counter -> Meter Count -> Check Details button on touchscreen -> STOP - > 00 -> STOP -> 01. Press CS Remote Care button. 4. Select HTTP2 to set the MFP up for One-Way HTTP Communication. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 3 of 14...
  • Page 5 5. Select ID Code. 6. Next Enter your 7 digit ID code and then select ID code again. Press the Detail Setting button at this time. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 4 of 14...
  • Page 6 CSRC settings, then Cycle Power. Otherwise proceed to step 8 9. Select Basic Setting, and then press Center ID. Enter the Center ID provided by your vCare Administrator. Example: US510 Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 5 of 14...

  • Page 7: Heart Beat Setting

    -06:00 c. Mountain Time Zone: -07:00 d. Pacific Time Zone: -08:00 Note: To Clear the Time Zone setting, press the “C” button on the MFPs’ display panel. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 6 of 14...

  • Page 8: Setting The Notification Schedule And Center Notification

    3. Select Day and enter 1 for Day Frequency. 4. Press SET. Center Notification 5. Select Center Notification. 6. Select only the following numbers 1_2_3_4_5_6_8_9. Note: Do not select number 7. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 7 of 14...
  • Page 9 Adjustment data Service count data Coverage data Life count and life cycle data Not used CSRC system and Device configuration Not used data History data Not used Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 8 of 14...

  • Page 10: Configuring Webdav Settings

    4. Then, select the [Input FQDN] button. 5. Key in /USXXX so that it is appended to the previously entered IP Address. Note: The entire URL string should display, similar to: 10.15.1.237/USXXX. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 9 of 14...
  • Page 11 Select End. Select Account. Enter the WebDav Account name provided by the vCare Administrator. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 10 of 14...
  • Page 12 10. Enter the WebDav Password provided by the vCare Administrator. 11. Select Port Number. 12. Enter Port # (Default is 80). 13. If required, select Proxy/SSL and enter necessary settings. 14. Press End. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 11 of 14...

  • Page 13: First Call To The Vcare System

    3. Then press the Initial Transmission button at the bottom right. 4. After performing the Initial Transmission, the status should display in the upper left of the screen should change from “Connected” to “Completed” Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 12 of 14...

  • Page 14: Printing A Vcare Communication Log

    5. Touch ID code a second time. 6. Touch Detail Settings to then press [Communication Log Print] 7. Press the Start Key to print the communication Log. Konica Minolta bizhub C220/C280/C360 bizhub vCare HTTP Setup Guide Page 13 of 14...
