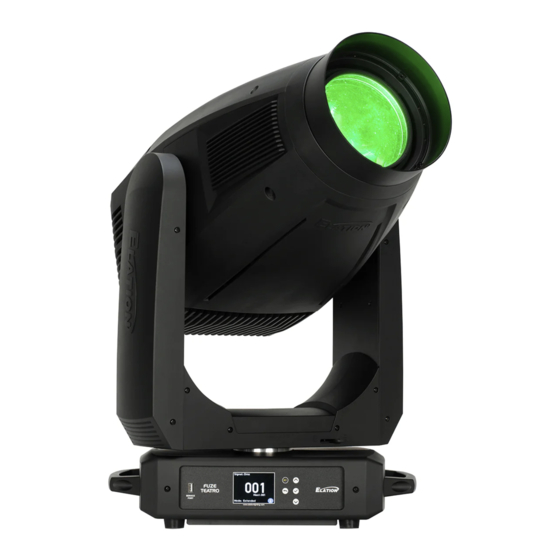

Elation FUZE TEATRO User Manual
  1. Manuals
  2. Brands
  3. Elation Manuals
  4. Light Fixture
  5. FUZE TEATRO
  6. User manual
Elation FUZE TEATRO User Manual

Elation FUZE TEATRO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FUZE TEATRO
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Elation FUZE TEATRO

Summary of Contents for Elation FUZE TEATRO

  • Page 1 FUZE TEATRO User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Gobos | Animation Wheel Gobo Dimensions Gobo Installation Installation Guidelines Remote Device Management (RDM) Control Panel System Menu DMX Traits Dimmer Modes & Curves Color Temperature Chart Color Macros Chart Dimensional Drawings...

  • Page 4: General Information

    Please recycle whenever possible. BOX CONTENTS Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    S A F E T Y G U I D E L I N E S This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Do not touch the fixture housing during operation, as it may be hot. •...

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.

  • Page 9: Overview

    O V E R V I E W Fuse Power Power Lens (10A/ 250V) Tilt Lock FUSE: POWER IN POWER OUT DMX IN DMX OUT NET IN NET OUT T10A/250V AC100-240V 50/60Hz MAX:100-240V 7A Lock Carry Handle Battery Indicator Button Service Display Back...

  • Page 10: Gobos | Animation Wheel

    G O B O S ROTATING GOBO WHEEL 1 ROTATING GOBO WHEEL 2 A N I M AT I O N W H E E L...

  • Page 11: Gobo Dimensions

    Due to varying manufacturing processes and tolerances, it is highly recommended to provide a gobo sample and holder from the fixture to the custom gobo vendor for accurate sizing. Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information.

  • Page 12: Gobo Installation

    G O B O I N S TA L L AT I O N 1. Locate the gobo that you would like to re- place. Carefully press down on the gobo holder to unseat it from its slot in the gobo wheel, then pull the holder out and away from the gobo wheel.

  • Page 13: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 14 I N S TA L L AT I O N G U I D E L I N E S OMEGA BRACKET WITH CLAMP INSTALLATION When mounting the fixture to a truss, be sure to secure appropriately rated professional grade rigging clamps to the included Omega Brackets using an M10 or M12 screw fitted through the center hole of the Omega Brackets.
  • Page 15 I N S TA L L AT I O N G U I D E L I N E S FIXTURE INSTALLATION This fixture is fully operational in three different mounting positions: hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept well away from any flammable materials (decoration etc.).
  • Page 16 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 17 I N S TA L L AT I O N G U I D E L I N E S ART-NET | sACN CONNECTION When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet Switch that supports IGMP (Internet Group Management Protocol) is required. Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch.

  • Page 18: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used through- out the entire system, including DMX data splitters and wireless systems.

  • Page 19: Control Panel

    Turn the fixture off, then power it back on. The updated software will load and install automatically. AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details.

  • Page 20: System Menu

    S YS T E M M E N U DMX Address 001 - 512 Set DMX address Standard Extended Select DMX channel DMX Mode mode RGB Extended CMY Extended Unit holds last setting Hold Last if DMX signal is lost or interrupted Unit display fades to Fade to Black...
  • Page 21 S YS T E M M E N U Dimmer Movement CONTROL Self Test Run indicated self test (continued) Color Mix Gobo Beam Ultra Quiet Select performance Performance mode Best Speed Pan Invert Off / On Invert pan movement Tilt Invert Off / On Invert tilt movement Select pan/tilt speed...
  • Page 22 S YS T E M M E N U Screen enters screen 10s - 5min saver mode after Screen Delay (default = 1min) selected period of inactivity Control panel locks Display Screen Lock Off, 10s - 5min after selected period of SETTINGS inactivity (continued)

  • Page 23: Dmx Traits

    D M X T R A I T S Function Snap Values Value 0 - 255 Left → Right Pan Fine 0 - 255 Fine Position Tilt 0 - 255 Forward → Backward Tilt Fine 0 - 255 Fine Position 0 - 255 0% →...
  • Page 24 D M X T R A I T S Function Snap Values Value Variable CCT 0 - 26 Open (6000K) 2400K → 8500K (see Color 27 - 85 Temperature Table section of this manual) 86 - 255 8500K Color Open Virtual Swatch Book (see 1 - 179 Virtual Colors section of this...
  • Page 25 D M X T R A I T S Function Snap Values Value Scroll 190 - 221 Clockwise Fast → Slow 222 - 223 Stop 224 - 255 Counter-clockwise Slow → Fast Rotating Gobo Index / Rota- tion 0 - 127 Index Position Rotate 128 - 189 Clockwise Fast →...
  • Page 26 D M X T R A I T S Function Snap Values Value Prism 0 - 5 Open 6 - 31 Prism 2 32 - 127 Prism 2 128 - 255 Idle Prism Index / Rotation 0 - 127 Index Position Rotate 128 - 189 Clockwise Fast →...
  • Page 27 D M X T R A I T S Function Snap Values Value Dimmer Time 0.1s 0.2s 0.3s 0.4s 0.5s 0.6s 0.7s 0.8s 0.9s 1.0s 1.5s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 142 - 255 Idle Iris 0 - 255 Open →...
  • Page 28 D M X T R A I T S Function Snap Values Value Blade 1 A Fine 0 - 255 Fine Adjustment Blade 1 B 0 - 255 Open → Closed Blade 1 B Fine 0 - 255 Fine Adjustment Blade 2 A 0 - 255 Open →...
  • Page 29 D M X T R A I T S Function Snap Values Value Control 0 - 19 Wheel Snap 20 - 39 Wheel Fade Performance Mode* 40 - 44 Ultra Quiet (default) 45 - 49 Best Speed 50 - 79 Idle Reset 80 - 84...
  • Page 30 D M X T R A I T S Function Snap Values Value Refresh Rate (Hz) (continued) 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420 1430...
  • Page 31 D M X T R A I T S Function Snap Values Value Dimmer Curves 201 - 210 Linear 211 - 220 Square 221 - 230 Inverse Square 231 - 240 S-Curve (default) 241 - 255 Idle *NOTES: • Performance Mode, Ultra Quiet: Most motors are slowed down in order to reduce noise and vibration, and motors that support functions that generate noise (such as pan, tilt, focus, and zoom) gradually ramp up and down as needed.

  • Page 32: Dimmer Modes & Curves

    D I M M E R M O D E S & C U R V E S...

  • Page 33: Color Temperature Chart

    C O LO R T E M P E R AT U R E C H A R T DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 6300 2400 6400 2500 6500 2600 6600 2700 6700 2800 6800 2900 6900 3000...

  • Page 34: Color Macros Chart

    C O LO R M A C R O S C H A R T Filter Filter Value Name Value Name Number Number Pale Yellow Medium Purple Straw Lavender Gold Tint Palace Blue Spring Yellow Dark Blue Medium Yellow Medium Blue Yellow Deep Blue Deep Amber...

  • Page 35: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S 27.3in (693mm) 12.6in (321mm) 2.0in (51mm) 22.8in (579mm) 5.4in 5.5in (136mm) (139mm) 11.5in (291mm) 4.2in (107mm) 17.4in (442mm) 18.2in (462mm)

  • Page 36: Specifications

    S P E C I F I C AT I O N S SOURCE GOBOS 480W 6,500K RGBMA LED Engine 2x 6 Rotating / Indexing Interchangeable 30,000 Hour Average LED Life* Glass Gobos *Test lab conditions. May vary depending on Animation Wheel several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage...

  • Page 37: Ordering Information | Error Codes

    O R D E R I N G I N F O R M AT I O N SKU (US) SKU (EU) ITEM DESCRIPTION FUZ625 1237000274 Elation Fuze Teatro E R R O R C O D E S Error Codes subject to change without notice ERROR CODES DESCRIPTION Pan Motor Error...
