PLATINUM BEAM 5R EXTREME™
user manual



Advertisement

Table of Contents
loading

Related Manuals for Elation platinum beam 5R extreme

Summary of Contents for Elation platinum beam 5R extreme

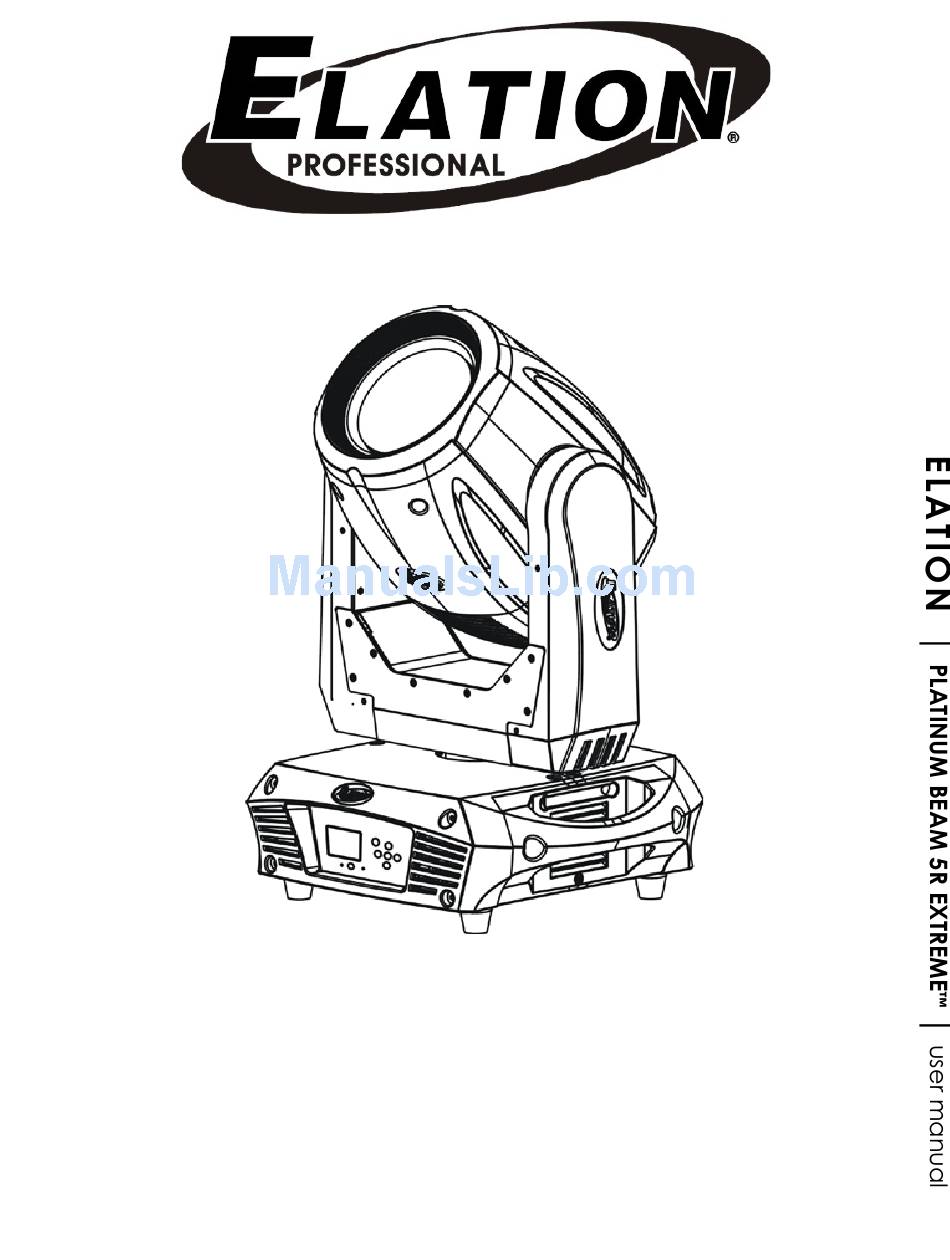

  • Page 1 PLATINUM BEAM 5R EXTREME™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    Discharge Lamp Warning Fixture Overview Lamp Installation Instructions Fixture Installation Fixture Menu WDMX Internal Wireless DMX Receiver Set Up DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions

    Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 8: General Guidelines

    Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 9: Discharge Lamp Warning

    R E P L A C E M E N T Please note that due to the nature of the Philips™ Platinum 5R Lamp and the optical path of the Elation PLATINUM BEAM 5R EXTREME fixture, the lamp MUST BE replaced at 2,000 hours.

  • Page 10: Fixture Overview

    DOWN Button RIGHT Button MODE/ESC Button UP Button ENTER Button Wireless DMX Antenna Carrying Handle(s) Lamp Access/Cover Panel 3pin DMX Input 3pin DMX Output 5pin DMX Output 5pin DMX Input powerCON Input Fuse PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 11: Lamp Installation Instructions

    R E P L A C E M E N T Please note that due to the nature of the Philips™ Platinum 5R Lamp and the optical path of the Elation PLATINUM BEAM 5R EXTREME fixture, the lamp MUST BE replaced at 2,000 hours.
  • Page 12 1. Place fixture on a flat surface and remove (4) screws marked “A”, “B”, “C”, and “D” and then remove rear cover plate (see image below) to access the lamp. LAMP COVER PLATE PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 13 2. Gently remove (2) Wires connected to spade terminals on base of lamp. 3. Using two fingers on your RIGHT hand, pull the retention handle OUT and towards the RIGHT as far as possible. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 14 . e l a t i o n l i g h t i n g . c o m 4. While pulling the retention handle with your RIGHT hand, use your LEFT hand to gently twist the lamp COUNTERCLOCKWISE to remove it from under the retention brackets. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 15 6. While pulling the retention handle with your RIGHT hand, use your LEFT had to gently install the lamp under the retention brackets by holding the lamp at a slight angle and positioning it until it is flush with the base. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 16 CLOCKWISE with your LEFT hand until the lamp is correctly aligned under the retention brackets. 8. Release the retention handle with your RIGHT hand and make sure the handle is upright and not at an angle. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 17 12. If the lamp protection circuitry has already been initiated and the LAMP HOURS is not reset, the “Replace the Lamp” warning will continue to flash and fixture will eventually shut down. To reset LAMP HOURS, see instructions on the next page. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 18 Please remember the Philips Platinum 5R PRO Lamp is NOT a hot-restrike lamp ™ therefore, you must wait approximately 15 minutes before you can attempt to restrike the lamp once it has been turned off. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 19: Fixture Installation

    10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 20 S A F E T Y C A B L E ALWAYS USE A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 21 Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 22: Fixture Menu

    OFF automatically about 1 minute from the last button press. To shut OFF the LCD Menu Control Display immediately, set "Reset Default" menu option to “ON” in the “Personality” menu and press the ENTER button to confirm your selection. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 23 Initial Effect Position WDMX OFF De-activate WDMX Activate WDMX Activate WDMX Wireless DMX Act & Data Out Act & Data Out Clean WDMX Memo Reset Wireless DMX Mem Reset Default ON/OFF Restore factory settings PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 24 This function sets the MIN internal operating temperature of the fixture head before the lamp will restrike after the lamp has been automatically shut OFF. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 25 100%. PAN and TILT functions will still operate if the fixture needs to be positioned to a flat clear surface. With the individual functions, you can focus the light on a flat surface (wall) and perform fine adjustments. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 26 DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from – to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 27 MODE/ESC in order to return to the main menu. 2. Automatic Program Run “Function Mode”. ENTER to confirm. “Auto Program”. ENTER to confirm. elect “Master” or “Alone”. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 28 5. Automatic Scene Recording “Edit Program”. ENTER to confirm. ct “Edit Scenes”. desired scene numbers. A maximum of 250 scenes can be programmed. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 29 Auto Pro Part 2 is Program 3 Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 30: Wdmx Internal Wireless Dmx Receiver Set Up

    SETTING UP THE WDMX SYSTEM Follow the instructions included with the Elation EWDMX Transmitter and connect it to the output of your DMX controller. To sync your fixture with the Elation EWDMX Transmitter follow the steps below: Initially, the Wireless Indicator on the fixture control panel should be solid RED.
  • Page 31 (Slow Flashing) = Paired with an EWDMX Transmitter but not receiving a DMX signal from a controller. GREEN (Solid) = Paired with an EWDMX Transmitter and receiving DMX data. (Solid) = Not paired with an EWDMX Transmitter (FREE). PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 32: Dmx Channel Functions And Values

    Rotating Gobo 4 Shake 150-164 Rotating Gobo 5 Shake 165-179 Rotating Gobo 6 Shake 180-194 Rotating Gobo 7 Shake 195-209 Rotating Gobo 8 Shake 210-255 Gobo Wheel Continuous Rotation from SLOW to FAST PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 33 160-191 NO Function (Shutter OPEN) 192-223 Random Strobe Effect SLOW to FAST 224-255 NO Function (Shutter Open) DIMMER INTENSITY 0-255 Intensity 0 to 100% DIMMER INTENSITY FINE 0-255 Dimmer Intensity FINE Adjustment PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 34 Internal Program 1 120-139 Internal Program 2 140-159 Internal Program 3 160-179 Internal Program 4 180-199 Internal Program 5 200-219 Internal Program 6 220-239 Internal Program 7 240-255 Auto Program by Sound Control PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 35: Error Codes

    The errors in question will remain flashing in the display as a reminder of internal errors. PAN Er Gobo Rot. 1 Er TILT Er Focus Er Color Wheel Er Prism Rot. Er Gobo Wheel 1 Er PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 36: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 37: Technical Specifications

    14°F to 113°F (-10°C to 45°C) APPROVALS CE | cETLus | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...
  • Page 38 3rd party custom gobo vendors for accurate sizing. PHOTOMETRIC DATA Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM BEAM 5R EXTREME™ User Manual Ver. 1...

  • Page 39: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp DRCPLAT Dual Flight Case For Platinum Beam 5R EXTREME™ DRCPLATQUAD Quad Flight Case For Platinum Beam 5R EXTREME™ EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) AC3PDMX5PRO 5 ft.
