- Page 1 Radial Arm Mount Kit Instructions 1668-K015, K034 Issue A Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
-
Page 2: Copyright
NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current. -
Page 3: Table Of Contents
Table of Contents Copyright Radial Arm Mount Introduction Installation Procedure Counterbalancing the Arm Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 4 Revision Record Issue Date Remarks Apr 2022 First Issue May 2022 Added 1668-K034 Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-

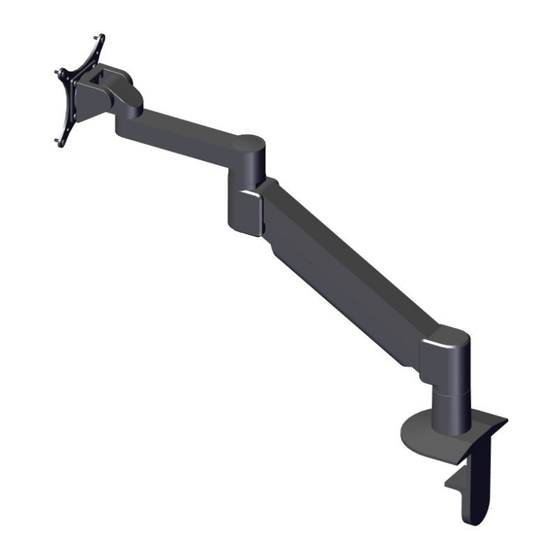

Page 5: Radial Arm Mount
497-0526229 supports a 0.9 to 5.9 kg (2.0 to 13.0 lbs) display The Radial Arm Mount allows for easy vertical and horizontal repositioning of the display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 6 Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-
Page 7: Installation Procedure
16 x 1” Flat Socket Cap Screw and 3/8-16 Nylon Stop Nut. b. Install the Small “L” Bracket on the assembly using the 3/8-16 X 1/2” BHSCS. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 8 Thru-Desk – The Mount can be bolted through a tabletop with or without the Base Plate. a. Drill a 3/8” hole through the tabletop. b. Install the Mount Column, with or without the Base Plate, as shown. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 Small “L” Bracket on the assembly using the 3/8-16 X 1/2” BHSCS. c. Secure the Mount with the Rectangular Spacer and 1/2”-13 x 3” Socket Set Screw. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 Wall a. Install the Large “L” Bracket on the wall in the orientation show (2 screws). Use hardware appropriate for the surface being mounted on. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 11 Use hardware appropriate for the surface being mounted on. b. Install the Mount Column on the Large “L” Bracket using the 3/8-16 x 1” Flat Socket Cap Screw and 3/8-16 Nylon Stop Nut. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 12 2. Install the Radial Arm on the Mount Column. 3. Install the VESA Adapter Plate on the Tilter using four (4) 10-32 x 3/8” Phillips Pan Head Screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 13 4. Install the VESA Adapter Plate on the display using four (4) M4 x 12 mm Phillips Pan Head Screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 14 6. Use a 7/32” Allen Wrench to adjust the tilt angle of the display. 7. Check and adjust the Arm for counterbalance. For more information, refer to Counterbalancing the Arm on page 17. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 15 8. Use a 3/32” Allen Wrench to adjust the horizontal rotation of the arm at the two joints as shown. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 16 9. Route the cable as shown and secure the cable on the arm using the Cable Cap. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-
Page 17: Counterbalancing The Arm
If the Arm drifts downward, turn the adjustment screw counter-clockwise. Note Depending on the weight of the display, the adjustment screw may have to be turned 15 to 20 times. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 18 2. If the Arm is not staying in position after performing step 1, use a 1/8” Allen Wrench to tighten the adjustment screw in the location shown. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
