Stand, CX7
Kit Instructions
7772-K030
Issue C
Unauthorized use, reproduction and/or distribution is strictly prohibited
Confidential and proprietary information of NCR Corporation.

Advertisement

loading

Summary of Contents for NCR VOYIX CX7

  • Page 1 Stand, CX7 Kit Instructions 7772-K030 Issue C Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
  • Page 2: Copyright

    NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3: Table Of Contents

    Table of Contents Copyright Stand, CX7 Kit Contents Installation Procedure Installing the Stand Installing the Integrated Power Supply Changing the Neck Covers Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 4 Revision Record Issue Date Remarks Sep 2021 First Issue Dec 2021 Added Warning statement Jan 2022 Updated routing for Power Supply Cable Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 5: Stand, Cx7

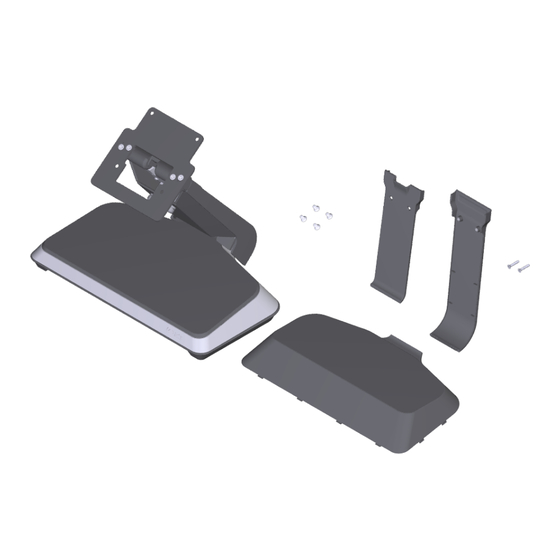

    Stand, CX7 This kit provides a Stand for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773). Kit Contents Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 6 Male–Female Threaded Hex Standoff, Steel, Zinc Plated, 16mm long, M4 x 0.70mm size, w/ ND Microspheres Thread Lock 006-8622885 Screw, M4–0.7 x 8mm Flat Head, Machine, Knurled Head, Steel, Black Oxide Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 7: Installation Procedure

    1. Install the CX7 with Integrated I/O on the Bracket (4 screws). Note For clarity, the Neck Cover is not shown in the illustration. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 8 2. Remove the Neck Door. a. Loosen the two (2) thumbscrews on the Neck Door. b. Rotate the Door forward and pull out to remove. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 9 Hook the Neck Door on the Neck Cover. Position the Door so that the door standoffs (one on each side) sit on the hooks on the inside of the neck cover (one on each side). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 10: Installing The Integrated Power Supply

    Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal. 1. Remove the Neck Door. a. Loosen the two (2) thumbscrews on the Neck Door. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 11 2. Slightly push the front side of the Base Cover, then pivot the cover open. 3. Route the AC Cord up through the opening in the Base. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 12 4. Position the Power Supply in the recess on the Base. Note The Power Supply Cable comes bundled as shown. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 13 On the underside of the Base, pull the DC Connector such that the excess cable is under the Base. 7. Connect the AC Cord to the Power Supply. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 14 8. Hook the Base Cover into the Stand, then snap into place. 9. Route the Power Supply Cable up along the Neck as shown and insert the DC Connector into the Power In connector on the Integrated I/O. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 15 (one on each side) sit on the hooks on the inside of the neck cover (one on each side). b. Tighten the two (2) thumbscrews. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 16: Changing The Neck Covers

    0523791) and back neck cover (497-0523787), which are also included in the kit. 1. Remove the Neck Door. a. Loosen the two (2) thumbscrews on the Neck Door. b. Rotate the Door forward and pull out to remove. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 17 2. Remove the Base Rear Foot (2 screws). 3. Remove the Neck Cover. a. Remove the two (2) Hex Standoffs from the Neck. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 18 Remove the two (2) screws that secure the Neck Cover to the Neck. c. Remove the Neck Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 19 5. Install the Base Rear Foot (2 screws). Ensure the Neck Cover is captured under the Base Rear Foot. Note The Base Rear Foot serves to manage the cables and hold the bottom of the Neck Cover in place. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 20 7. Secure the Front Neck Cover to the Neck with two (2) screws. Use the appropriate screws: flat head screws for Base without Integrated Power Supply thumbscrews for Base with Integrated Power Supply Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
