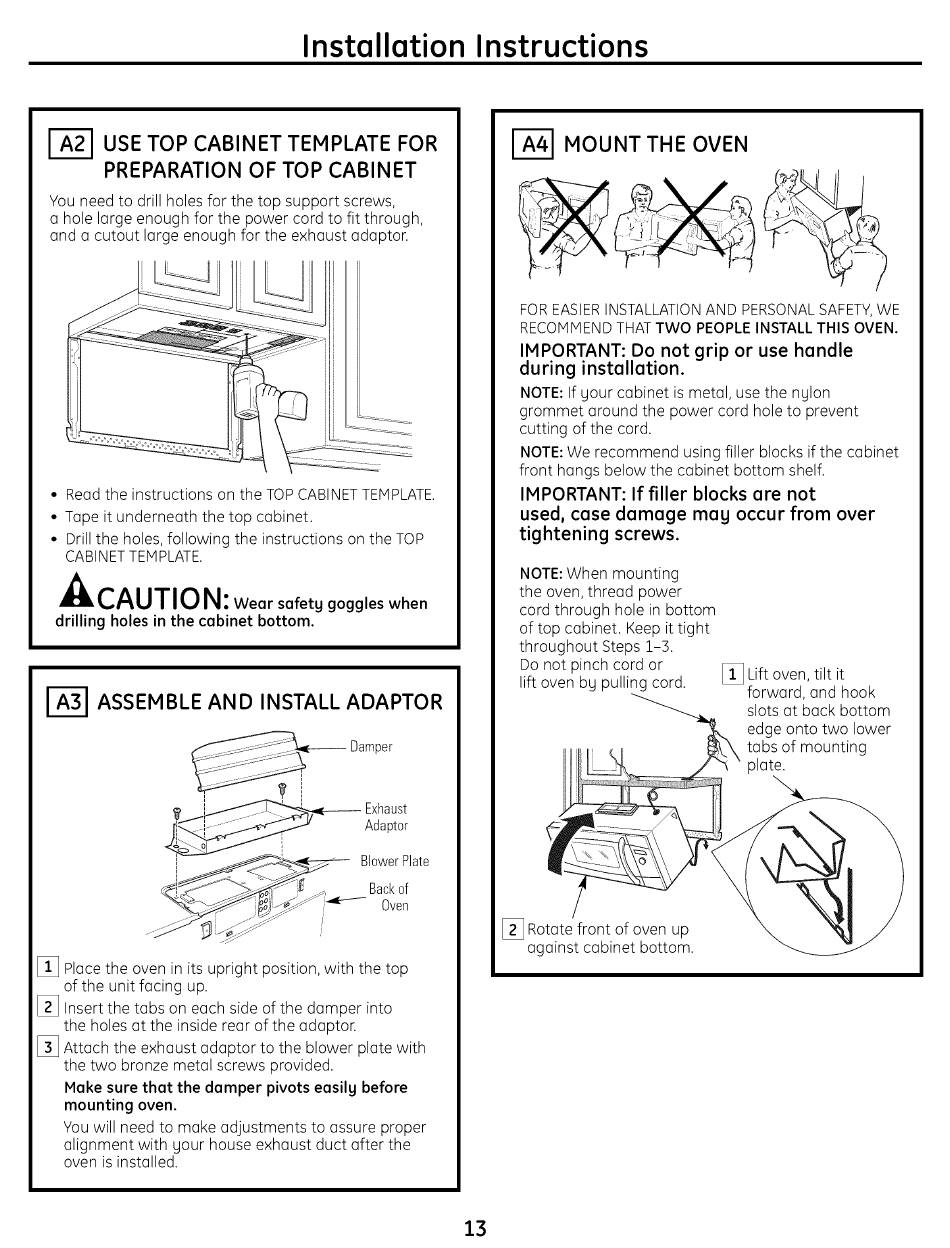

Installation Instructions
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2
* Read the instructions on the TOP CABINET TEMPLATE.
* Tape it underneath the top cabinet.
* Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
Acautio N: Wear safety goggles when
drilling holes in the cabinet bottom.
A3 ASSEMBLE AND INSTALL ADAPTOR
Damper
Exhaust
Adaptor
Sek: Blower Plate
Back of
Oven
Place the oven in its upright position, with the top
of the unit facing up.
Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.
13
MOUNT THE OVEN
FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE
RECOMMEND THAT TWO PEOPLE INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the cabinet
front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
NOTE: When mounting
the oven, thread power
cord through hole in bottom
of top cabinet. Keep it tight
throughout Steps 1-3.
Do not pinch cord or
lift oven by pulling cord.
Lift oven, tilt it
forward, and hook
slots at back bottom
edge onto two lower
tabs of mounting
Rotate front of oven up
against cabinet bottom.
