Vulcan-Hart GH72 Specifications

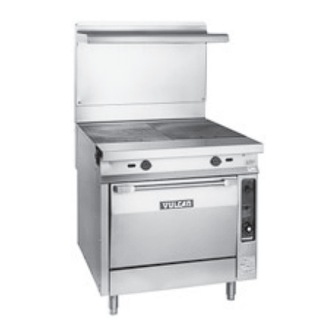

Model GH72 shown with single deck high shelf
SPECIFICATIONS
Heavy duty even heat top gas range with oven, Vulcan-Hart
Model No. GH72. Stainless steel body and 6" adjustable legs.
1 ⁄ " diameter front gas manifold. Two polished cast iron hot
1
4
top sections measure 17"w x 23
hot tops. Four 20,000 BTU/hr. burners, two per hot top section.
One manual gas control valve per section. Pilot igntion system.
Oven interior measures 26"w x 28"d x 14"h. Porcelain enamel on
steel hearth, door and side liners. One oven rack and two rack
positions. 50,000 BTU/hr. heavy cast "Flame Retention" burner
with pilot ignition. Thermostat adjusts from 150° to 500°F.
Controls located in the cool zone.
Exterior dimensions: 34"w x 39
6" legs.
CSA design certi ed. NSF listed.
SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31515 (05-06)
⁄ "d. Ceramic re brick under
13
16
⁄ "d x 36" working height on
1
8
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
MODEL GH72
EVEN HEAT TOP HEAVY DUTY GAS RANGE
GH72 Standard Oven
GH72C Convection Oven
GH72S Storage Base
STANDARD FEATURES
Stainless steel body and 6" adjustable legs.
1 ⁄ " diameter front gas manifold.
1
4
Two polished cast iron hot top sections measure
17"w x 23 ⁄ "d. Ceramic re brick under hot tops. Four
13
16
20,000 BTU/hr. burners, two per hot top section. One man-
ual gas control valve per section. Pilot ignition system.
Oven controls located in the cool zone.
Oven interior measures 26"w x 28"d x 14"h. Porcelain enamel
on steel hearth, door and side liners. One oven rack and two
rack positions. 50,000 BTU/hr. "Flame Retention" burner with
pilot ignition. Thermostat adjusts from 150° to 500°F.
One year limited parts and labor warranty.
OPTIONS
Snorkel convection oven in place of standard oven. Add
TM
su x "C" to the model number. Porcelain enamel on steel
interior measures 26 ⁄
1
8
and ve rack positions. 32,000 BTU/hr. burner with pilot
ignition. Thermostat adjusts from 200° to 500°F.
motor with 7 foot power cord and plug. 120/60/1, 5 amps.
Stainless steel back nishing panel.
Common front top ledge up to 68" wide. (Not for use on griddle
tops, spreader plates and deep fat fryers.)
Cap and cover manifold end(s). (No charge.)
1 / " stainless steel toe base - 31
5
8
Set of four 5" diameter casters, two locking.
Stainless steel dolly frame with casters, up to 102" wide.
Cooling fan for Snorkel
when unit is installed with a back nishing panel or a toe base.
Rear gas connection. (Reference spec sheet F-31525.)
Second year extended limited parts and labor warranty.
Cabinet storage base in place of standard oven. Add the
su ux "S" to the model number.
C.S.I. Section 11420
"w x 22 ⁄ "d x 14 ⁄ "h. Three oven racks
3 1
32 8
⁄ HP blower
1
4
⁄ " working height.
5
8
convection oven motor. Required
TM
