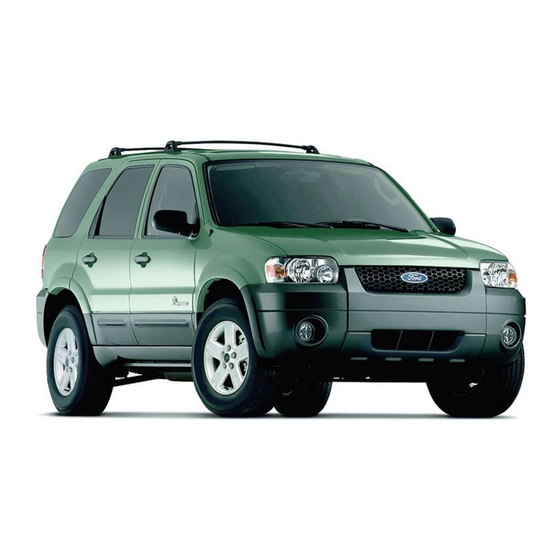

Ford Escape 2006 Manual

Hide thumbs Also See for Escape 2006:

Owner's manual (607 pages)

Sales manual (33 pages)

Owner's manual (288 pages)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

page of 199

/ 199
Bookmarks

Quick Links

Download this manual

any information storage and retrieval system or translation in whole or part is not permitted without written

authorization from Ford Motor Company. Ford may change the contents without notice and without incurring

obligation.

Summary of Contents for Ford Escape 2006

Page 1 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Page 2 $%& '()*'( $% Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety, economy, and pleasure you will derive from driving it.
Page 3 '( $% ' $)( (1 &) The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation. $% + ' '%(/ The New Vehicle Limited Warranty includes Bumper to Bumper Coverage, Safety Restraint Coverage, and Corrosion Coverage.
Page 4 These are some of the symbols you may see on your vehicle. & Safety Alert See Owner’s Guide Fasten Safety Belt Air Bag-Front Child Seat Air Bag-Side Child Seat Tether Child Seat Installation Anchorage Anti-Lock Brake System Brake System Traction Control Brake Fluid- Non- Petroleum Based Hazard Warning...
Page 5 & Child Safety Door Interior Luggage Lock/Unlock Compartment Release Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Battery Avoid Smoking, Flames, or Sparks Battery Acid Explosive Gas Fan Warning Power Steering Fluid Maintain Correct Fluid Level Emission System Engine Air Filter...
Page 6 Instrument cluster Turn signal light Windshield wiper/ control lever washer control Fog lamp control Audio remote control Power side mirror control Instrument panel Power fold rear view dimmer control mirror control switch * if equipped...
Page 7 Electronic audio Panic warning light system switch Electronic compass and body 4 wheel drive locking switch inclination display Full – automatic climate control panel * if equipped...
Page 8 + ' % %& * &1( '% Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards.
Page 9 These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off.
Page 10 Momentarily illuminates when the ignition is turned to the RUN position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter. Momentarily illuminates when the ignition is turned to the RUN position to ensure the circuit is functional. Also illuminates if the parking brake is engaged.
Page 11 Illuminates when the high beam headlamps are turned on. This light comes on when the vehicle speed control is engaged and actively controlling the vehicle speed. It turns off when the speed control OFF or CANCEL controls are pressed or the brake is applied. Refer to SecuriLock passive anti-theft system in the Controls and features chapter.
Page 12 ; !! Illuminates when 4x4 switch control is turn to the ON position. If the light continues to flash have the system serviced. < Illuminates when any door, liftgate or liftgate window is open. ; !! Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF.
Page 13 ; !! Momentarily illuminates when the ignition is turned to the ON position to ensure your bulb is working. When this light turns on, check the CAP fuel filler cap. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light.
Page 14 &')&, Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool.
Page 15 RPM indicates different rotating speeds of an engine. If an engine rotates at a high speed for a long period time, it will be possibly damaged. It indicates the current moving speed (kilometre/per hour) of a car. Displays approximately how much fuel is in the fuel tank (when the key is in the RUN position).
Page 16 Registers the total kilometers (miles) of the vehicle. Registers the kilometers (miles) of individual journeys. Press and hold the button for 1 or more seconds to reset. Press and release the button in less than 3 second to toggle between odometer and trip odometer.
Page 17 3'%,* $%( $* Use to adjust the brightness of the instrument panel. Push and hold top of control to brighten. Push and hold bottom of control to dim. 3$+ , , 0 ,+ 9 2 ,?) 33, : @ The ignition must be in the ACC or ON position to adjust the power side view mirrors. To adjust your mirrors: Rotate the control clockwise to adjust the right mirror and rotate the control...
Page 18 Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash. + 1,,* 0, 9 A : $%( $* 9 2 ,?) 33, : This control operates the four wheel drive (4X4) system. Refer to the Driving chapter for more information.
Page 19 The following situations possibly do damage to rear-window defogger wires: 1) using sharp pointed tools or erosive glass detergent to clean the interior rear window; 2) improper ways to place heat insulators. If defogger wires are not functional, the rear window will receive different temperatures.
Page 20 There are two air-conditioning systems: Manual and Automatic Thermostat Air-Conditioning Systems. In the following text, they are respectively introduced. Please check out which air-conditioning system your car is; then find out the related introduction. Temperature Control Button Button of Air-Inhaling Model Choice Button Choice and Fan Control A/C Switch...
Page 21 Model Select button is meant for choosing different airflow models (which direction of airflow comes out from the front of the car). When the button is turned to $22, there is no ventilation; meanwhile, the air-conditioning is off. The air from the The interior circulation outside of the car of the air in the car...
Page 22 The interior circulation of the air in the car When the weather is cold and the interior circulation of the air in the car is activating , the glass will be misty. Thus, a driver cannot have clear sight. Car accidents easily happen.
Page 23 It is for turning on and off the air-conditioning. When it is not , the indicating light is on. When pressing again, the air-conditioning system is turned off. When the model select button is set on the indicating light is off. The air-conditioning system is automatic.
Page 24 Set up the model select button to the position of Set up the temperature as you like. Set up the fanning speed as you like. Turn on the air-conditioning. Adjust the fanning speed and temperature as the most agreeable degree. When driving a long distance or severe traffic jam, please do pay attention to the temperature indicator of the engine.
Page 25 Set up the model select button to the position of Set up the inhaling-air select button to the position of Set up the temperature as you like. Set up the fanning speed as you like. When the weather is cold, turning on the air-conditioning can help to remove the mist on the windshield and on the door windows.
Page 26 9 ,'( : Windshield Defogging Switch Model Choice Switch Rear-Window Defogging Switch Fanning Control Switch A/C Switch OFF Switch Inhaling-Air Choice Switch AUTO Switch Temperature Control Button Front-Shift Temperature Defogging and Setup Windshield Defogging Ventilating Floor Ventilating Rear- Environment Instrument Window Automatic Status Temperature...
Page 27 ')($ Whenever AUTO Switch is turned on, the air-conditioning will automatically keep Electronic Auto Temperature Control as setup. Airflow Temperature Airflow Volume Airflow Model Choice Choices of Inhaling the Outside Air or the Interior Air Circulation A/C Compressor When you press AUTO Switch, LCD monitor shows this word: ')($ When you turn on any other switch, the word AUTO disappears.
Page 28 Whenever OFF switch is off, the air-conditioning is off. When you press OFF, LCD monitor light is off. There is no indicator on the screen. When you press OFF, the light of this switch is controlled by Car Light Switch Car Light Switch is ON --- the back light of OFF Switch is on.
Page 29 A driver manually changes the airflow models with Model Select button. Upward Choice The pictures of Airflow Models as follows: Downward Choice Instrument Panel Ventilating Outlet Upward Choice Instrument Panel and Floor Floor Ventilating Outlet Front-Shift Defogging and Floor Ventilating Outlet Downward Choice When the car is in the condition of automation, it automatically chooses the inhaling air model.
Page 30 A/C Switch is a manual choice of A/C. The picture on LCD monitor as follows: When the car is in the condition of automation, it automatically chooses the inhaling air model. Press A/C switch, the picture on LCD monitor disappears. The compressor does not activate.
Page 31 When you press the switch, the mist on the rear window can be remove. The picture on LCD monitor as follows: When you would like to cancel the function, you can press the switch one more time or press the AUTO switch. Rear-window defogging will be automatically turned off after 11 minutes.
Page 32 Press AUTO switch, LCD monitor shows the picture of AUTO. It means that the system is acting Electronic Auto Temperature Control. Use Temperature Control Button to set up the temperature you feel like. Airflow temperature, inhaling air choice, airflow model and airflow volume are automatically controlled by the air-conditioning system.
Page 33 When you press windshield defogging switch, LCD monitor shows the picture . It means the windshield defogging function works. If you would like to deactivate the windshield defogging function, just press again the switch or press the AUTO switch. When executing the windshield defogging function The air conditioning system offers the best dehumidifying function.
Page 34 Often eating, smoking, wearing perfume, having the door mats wet, or physical smells are all the possible origins of strange smells in the cooling air. If the interior circulation of the air in the car is too long, the evaporator is placed in the wet condition for a long time.
Page 35 5 * 6 The indication of LCD monitor and button back light has something to do with air conditioning usage and whether car light is on or not. Air-Condition Is ON Air-Condition Is OFF Car light is Car light is Car light is Car light is ON Monitor Back...
Page 36 Controls the volume of air circulated in the vehicle. Controls the temperature of the airflow inside the vehicle. Controls the direction of the airflow to the inside of the vehicle. The air conditioning compressor can operate in all modes except , and However, the air conditioning will only function if the outside temperature is about 6°...
Page 37 (Panel and floor) - Distributes outside air through the instrument panel registers and the floor ducts. Heating capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.
Page 38 Remove any snow, ice or leaves from the air intake area at the base of the windshield. If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open.
Page 39 1 ,* + 3, + ' 1, For intermittent operation, move control down one position. Adjust the rotary control to the desired speed setting. For normal or low speed wiper operation, move control down two positions from OFF. For high speed wiper operation, move control down three positions from OFF.
Page 40 To activate the windshield washer, pull control toward you. Release control to stop washer fluid spray. ( 2)% ( $% Move control up and release for one wipe. 4 4 ! = 4 For intermittent operation of rear wiper, rotate end of control upward to the INT position.
Page 41 $0, 1,' $% $*, 9 2 ,?) 33, : The appearance of your vehicle’s overhead console will vary according to your option package. ; !! Press the OPEN control to open the storage compartment. The door will open slightly and can be moved to full open.
Page 42 $$2 9 2 ,?) 33, : To operate the moon roof: The moon roof is equipped with an automatic, one-touch, express opening feature. Press and release the rear portion of the control. To stop motion at any time during the one-touch opening, press the control a second time.
Page 43 With the control in the middle position, the dome lamp will illuminate whenever any door is opened. If any door has been opened from the outside, the lamp will remain on for 15 seconds after the door is shut. The map lamp controls (without moon roof) are located on the dome lamp.
Page 44 1,' *' 3 $%( $* Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps. Your vehicle is equipped with a battery saver feature which, if you leave the headlamps on, automatically turns off the headlamps after 30 seconds when the ignition is in the OFF position.
Page 45 Pull toward you to activate and release to deactivate. ; !! Turn on the low-beam headlamps. Press the foglamp control, located on the instrument panel, to activate the foglamps. The foglamp LED will illuminate when the foglamps are on. When the highbeams are activated, the foglamps will not operate.
Page 46 Press the bottom portion of the rocker switch to open. Press AUTO completely down to the second detent. The driver’s window will open fully. Depress up to stop window operation. ; !! The window lock feature allows only the driver to operate the power windows. To lock out all the window controls except for the driver’s press the right side of the control.
Page 47 ,%(, $% $*, Your vehicle may be equipped with a variety of console features. These include: Utility compartment Cupholders Ashcup Use only soft cups in the cupholder. Hard objects can injure you in a collision. ' " 9 0: Please do not put the plug of electrical equipment into the lighter.
Page 48 * 2(&'(, To open the rear window, pull the right side of the lift gate handle. To open the lift gate, pull the left side of the lift gate handle. Do not open the lift gate or lift gate glass in a garage or other enclosed area with a low ceiling.
Page 49 Do not leave the liftgate or liftgate glass open while driving. Doing so could cause serious damage to the liftgate and its components as well as allowing carbon monoxide to enter the vehicle. Make sure that the liftgate door and/or window are closed to prevent exhaust fumes from being drawn into the vehicle.
Page 50 If there is any potential remote keyless entry problem with your vehicle, ensure '** 5 (remote entry transmitters) are brought to the dealership, to aid in troubleshooting. Press this control to unlock the driver’s door. The interior lamps will illuminate. The flashers will flash twice to confirm the vehicle is unlocked.
Page 51 The transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by: weather conditions nearby radio towers structures around the vehicle...
Page 52 It is necessary to have all (maximum of four — original and/or new) of your remote transmitters available prior to beginning this procedure. To program the transmitters yourself: Insert a key in the ignition and turn from 1 (LOCK) to 3 (RUN) eight times in rapid succession (within 10 seconds) with the eighth turn ending in the 3 (RUN) position.
Page 53 The interior lamps illuminate when the remote entry system is used to unlock the door(s). The system automatically turns off after 30 seconds or when the ignition is turned to the RUN position. The dome lamp control (if equipped) must be set to the OFF position for the illuminated entry system to operate.
Page 54 If a door is open, the system is not armed. The system will become prearmed when all doors are closed. When the system becomes prearmed the flashers will flash to confirm the prearming. Once the system is prearmed, the system will arm in 20 seconds. If any door is opened during these 20 seconds, the arming will be canceled.
Page 55 The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.
Page 56 “do it yourself”, refer to Programming spare keys. The SecuriLock passive anti-theft system is not compatible with non-Ford (aftermarket) remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Large metallic...
Page 57 Replacing coded keys can be very costly and you may want to store an extra programmed key away from the vehicle in a safe place to prevent an unforeseen inconvenience. The correct key must be used for your vehicle. The use of the wrong type of key may lead to a “NO-START”...
Page 58 Within 20 seconds of turning the ignition to 2 (ACC), insert the new unprogrammed key (new key/valet key) into the ignition and turn the ignition from 2 (ACC) to 3 (RUN) (maintain ignition in 3 (RUN) for at least one second). This step will program your new key to a coded key.
Page 59 ,'( %& ' < Never adjust the driver’s seat or seatback when the vehicle is movin. Do not pile cargo higher than the seatbacks to reduce the risk of injuring people in a collision or sudden stop. Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
Page 60 ' < ,?) 33, : The electric control buttons are placed aside of the chair. Push or pull the front end of the control button to uplift or to lower the front section of the chair. Push or pull the back end of the control button to uplift or to lower the back section of the chair.
Page 61 ' < Push the button inward; then the driver can move the height of the head cushion up or down. The driver can also take it away. The driver also can use hands to move the head cushion forward or backward with appropriate force.
Page 62 6 ( 7 When the passengers do not use the table, please replace it for prevention of collisions and dangers. Turn the button to the horizon and the table could be open. Place the table board at the fixed position. Then the table is ready. Lift the cup holder and pull it forward.
Page 63 F= F Uplift the head cushion and take it away. Pull the chair-release belt and move the chair forward.
Page 64 Put the head cushion into the holes atop of the chair. Pull the chair-back bar forward for changing its angle. Move the chair back forward and place it horizontally.
Page 65 F= F Pull up the chair back and erect it. Make sure the chair back locked in the fixed position. In the meantime, please also pull the chair-back bar to change its angle as wished. After the chair back is pushed to a proper position, leave the bar fixed at the position.
Page 66 '2,(/ , ( ' %( Always drive and ride with your seatback upright and the lap belt snug and low across the hips. To reduce the risk of injury, make sure children sit where they can be properly restrained. Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision.
Page 67 Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints. This vehicle has a safety belt system with an energy management feature at the front passenger seating position to help further reduce the risk of injury in the event of a head-on collision.
Page 68 To unfasten, push the release button and remove the tongue from the buckle. The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below: The vehicle sensitive mode is the normal retractor mode, allowing free shoulder belt length adjustment to your movements and locking in response to vehicle movement.
Page 69 Buckle the combination lap and shoulder belt. Grasp the shoulder portion and pull downward until the entire belt is extracted. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode. Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.
Page 70 After any vehicle collision, the front passenger outboard seat belt system must be checked by a qualified technician to verify that the “automatic locking retractor” feature for child seats is still functioning properly. In addition, all seat belts should be checked for proper function.
Page 71 * ! 7 The lap belt does not adjust automatically. The lap belt should fit snugly and as low as possible around the hips, not across the waist. Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from).
Page 72 " If the safety belt is too short when fully extended, there is a 20 cm (8 inch) safety belt extension assembly that can be added (part number 611C22). This assembly can be obtained from your dealer at no cost. Use only extensions manufactured by the same supplier as the safety belt.
Page 73 The Belt Minder feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver’s safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.
Page 74 I’m not going far fatal crashes occur within miles of home. Ford designs its safety belts to enhance Belts are uncomfortable comfort. If you are uncomfortable -try different positions for the safety belt upper anchorage and seatback which should be as upright as possible;...
Page 75 > > > > > > Ú I have an air bag Air bags offer greater protection when used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers. I’d rather be thrown clear Not a good idea.
Page 76 To reduce the risk of injury, do not deactivate/activate the Belt Minder feature while driving the vehicle. Turn the ignition switch to the RUN (or ON) position. (DO NOT START THE ENGINE) Wait until the safety belt warning light turns off. (Approximately 1–2 minutes) Steps 3–5 must be completed within 60 seconds or the procedure will have to be repeated.
Page 77 (if equipped), LATCH child seat tether anchors and lower anchors (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced. However, if the collision was minor and a qualified technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced.
Page 78 This information will assist Ford in the servicing of your vehicle and may help Ford better understand real world collisions and further improve the safety of future vehicles.
Page 79 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln Mercury dealer. Modifications to the front end of the vehicle, including frame, bumper, front end body structure and tow hooks may effect the performance of the air bag sensors increasing the risk of injury.
Page 80 For additional important safety information, read all information on safety restraints in this guide. Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position.
Page 81 The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the air bag.
Page 82 If the air bag has deployed, 6 > If the air bag is not replaced, the unrepaired area will increase the risk of injury in a collision. The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system.
Page 83 Do not attempt to service, repair, or modify the air bag Supplemental Restraint System, its fuses or the seat cover on a seat containing an air bag. See your Ford or Lincoln Mercury dealer. All occupants of the vehicle including the driver should always wear their safety belts even when an air bag SRS is provided.
Page 84 The air bag SRS is designed to activate when the vehicle sustains lateral deceleration sufficient to cause the sensors to close an electrical circuit that initiates air bag inflation. The fact that the air bags did not inflate in a collision does not mean that something is wrong with the system.
Page 85 A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and light are repaired. If any of these things happen, even intermittently, have the SRS serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.
Page 86 To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all applicable Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.
Page 87 (passenger side front and outboard rear seating positions) (if equipped). Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more...
Page 88 Carefully follow all of the manufacturer’ s instructions included with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision. >...
Page 89 Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for...
Page 90 To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 91 3 ,3' %& ($ (' ( /$) Engine starting is controlled by the powertrain control system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting. Only use the accelerator when you have difficulty starting the engine.
Page 92 A computer system controls the engine’s idle revolutions per minute (RPM). When the engine starts, the idle RPM runs faster to warm the engine. If the engine idle speed does not slow down automatically, have the vehicle checked. Before starting the vehicle: Make sure all vehicle occupants have buckled their safety belts.
Page 93 Make sure the corresponding lights illuminate or illuminate briefly. If a light fails to illuminate, have the vehicle serviced. If the driver’s safety belt is fastened, the light may not illuminate. (' ( %& (1, ,%& %, %$(,8 Whenever you start your vehicle, release the key as soon as the engine starts. Excessive cranking could damage the starter.
Page 94 ; !! An engine block heater warms the engine coolant, which improves starting, warms up the engine faster and allows the heater-defroster system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -23°C (-10°...
Page 95 + ' % %& š Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit. Chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 96 Your service brakes are self-adjusting. Refer to the scheduled maintenance guide for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
Page 97 warning lamp in the instrument cluster momentarily illuminates when the ignition is turned to the RUN position. If the light does not illuminate momentarily at start up, remains on or continues to flash, the ABS needs to be serviced. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with parking brake...
Page 98 The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated (when the ignition is turned ON) until the parking brake is released. Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park) (automatic transmission) or in 1 (First Gear) (manual transmission). The parking brake is not recommended to stop a moving vehicle.
Page 99 If the steering wanders or pulls, the condition could be caused by any of the following: underinflated tire(s) on any wheel(s) uneven vehicle loading high crown in center of road high crosswinds wheels out of alignment loose or worn suspension components 3 ,3' %&...
Page 100 Your vehicle has the capability to haul more cargo and people than most passenger cars. Depending upon the type and placement of the load, hauling people and cargo may raise the center of gravity of the vehicle. Use extra caution while becoming familiar with your vehicle. Know the capabilities and limitations of both you as a driver and your vehicle.
Page 101 " Your automatic transaxle electronically controls the shift feel by using an adaptive learning strategy. This feature is designed to optimize shift smoothness. It is normal for your transaxle to shift firmly during the first few hundred kilometers (miles) of operation until the adaptive strategy has been learned.
Page 102 & Always come to a complete stop before shifting into P (Park). Make sure the gearshift lever is securely latched in P (Park). This locks the transaxle and prevents the front wheels from rotating. Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn off the ignition whenever you leave your vehicle.
Page 103 Overdrive may not be appropriate for certain terrains. If the transaxle shifts back and forth between third and fourth gears while you are driving hilly roads or if your vehicle requires additional power for climbing hills, press the O/D OFF switch. Each time the vehicle is started, the transaxle will automatically return to normal overdrive mode.
Page 104 + & , Use 2 (Second) for start-up on slippery roads or to give you more engine braking to slow your vehicle on downgrades. Do not go faster than 108 km/h (68 mph) when in this gear. You can upshift from 2 (Second) to overdrive at any time.
Page 105 + 1,,* 0, 9 A : / (, 9 2 ,?) 33, : " For important information regarding safe operation of this type of vehicle, see in this chapter. Your vehicle is equipped with a 4x4 system. This 4x4 system can use all four wheels to power the vehicle.
Page 106 4/4 model indication light is on when the following situations happen. If the indication light is in the situation of Model 4*4, please contact with your Ford distributor immediately. When the lighter switch is on, the light is When applying Model 4*4, the light is...
Page 107 4 6 " Your vehicle is specially equipped for driving on sand, snow, mud and rough terrain and has operating characteristics that are somewhat different from conventional vehicles, both on and off the road. Maintain steering wheel control at all times, especially in rough terrain. Since sudden changes in terrain can result in abrupt steering wheel motion, make sure you grip the steering wheel from the outside.
Page 108 " " > If the rear axle is submerged in water, the rear axle lubricant should be checked and changed, if necessary. The rear axle is filled with a lubricant that does not normally require a lubricant change for the life of the vehicle. Rear axle lubricant quantities should not need to be checked unless a leak is suspected.
Page 109 *, *$' %& Before loading a vehicle, familiarize yourself with the following terms: 6 8 Weight of the vehicle including any standard equipment, fluids, lubricants, etc. It does not include passengers or aftermarket equipment. 8 Combined maximum allowable weight of cargo, passengers and optional equipment.
Page 110 Do not exceed the GVWR or the GAWR specified on the certification label. Do not use replacement tires with lower load carrying capacities than the originals because they may lower the vehicle’s GVWR and GAWR limitations. Replacement tires with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Page 111 Use the appropriate maximum gross combined weight rating (GCWR) chart to find the maximum GCWR for your type engine and rear axle ratio. Weigh your vehicle as you customarily operate the vehicle without cargo. To obtain correct weights, try taking your vehicle to a shipping company or an inspection station for trucks. Subtract your loaded vehicle weight from the maximum GCWR on the following charts.
Page 112 Use extra caution when driving while trailer towing. Refer to Driving while you tow in this chapter. Service your vehicle more frequently if you tow a trailer. Refer to the severe duty schedule in the scheduled maintenance guide. Do not tow a trailer until your vehicle has been driven at least 800 km (500 miles). Refer to the instructions included with towing accessories for the proper installation and adjustment specifications.
Page 113 Do not use hitches that clamp onto the vehicle bumper. Use a load carrying hitch. You must distribute the load in your trailer so that 10% of the total weight of the trailer is on the tongue. Always connect the trailer’s safety chains to hook retainers on the vehicle. To connect the trailer’s safety chains, cross the chains under the trailer tongue and allow slack for turning corners.
Page 114 Use a lower gear when towing up or down steep hills. This will eliminate excessive downshifting and upshifting for optimum fuel economy and transmission cooling. Anticipate stops and brake gradually. ," 6 & + > If you tow a trailer for long distances, your vehicle will require more frequent service intervals. Refer to your scheduled maintenance guide for more information.
Page 115 Replace the rear axle lubricant anytime the axle has been submerged in water. Rear axle lubricant quantities are not to be checked or changed unless a leak is suspected or repair required. Disconnect the wiring to the trailer before backing the trailer into the water. Reconnect the wiring to the trailer after the trailer is removed from the water.
Page 116 The maximum holding weight of the luggage holder atop of the car is 44 kilos (100 pounds) if the weight is evenly placed. If the weight cannot be averagely put atop, please put heavy objects rather in the back. Use adjustable rope to fix heavy objects. If the driver would like to adjust horizon bars, please follow the instructions: Loosen the thumb wheels at the ends of...
Page 117 If you put your mobile phone in a leather carrying case, please take it out. Start the engine first. Then get the connection of mobile phone network. It is important to prevent your mobile phone from a system damage or a disconnection caused by a sudden voltage while starting the engine.
Page 118 Horn volume can be adjusted by pressing the button of volume of your mobile phone. 10. Take out the plug of signal cable. At the bottom of some mobile phones like the series of NK6110, the driver needs to press the button of “Out” and then plug it out. For example, the driver needs to pull the plug upward 45 degrees in order to take it out: please follow the instructions in the mobile phone handbooks and do it with attention.
Page 119 1'K' 2*' 1, Use only in an emergency to warn traffic of vehicle breakdown, approaching danger, etc. The hazard flashers can be operated when the ignition is off. The hazard lights control is located on the instrument panel. Depress hazard lights control to activate all hazard flashers simultaneously.
Page 120 The fuel pump shut-off switch is located in the front passenger’s foot well, behind the kick panel. The reset button for the fuel pump shut-off switch is accessible through an opening in the kick panel. Use the following procedure to reset the fuel pump shut-off switch. Turn the ignition to the OFF position.
Page 121 2) , '% ,*'/ If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components. %$(,8 Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
Page 122 The fuse panel is located on the left hand side kick panel. Remove the panel cover to access the fuses. To remove a fuse use the fuse puller tool provided on the fuse panel cover. The fuses are coded as follows:...
Page 123 ( ) Equipped ( ) Unused Fuse Name Fuse Fuse Name Fuse (Pure Carbon Can) (5A) Instrument Panel Back Wiper (Roof Window) (15A) 4 WD Lighting ABS/ASC (Sound System) (10A) Indicator Danger Warning Light Engine (Back Light) (10A) Instrument Panel (Back Fog Light) (15A) Horn...
Page 124 7 " The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses. Always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs.
Page 126 Car Model Fuse Rating / and Fuse Rating Electric Colour Electronic Equipment Current 2.3L 3.0L Function H/L-LH-LOW Azure H/L-RH-LOW Azure Orange HEGO Azure FUEL PUMP Yellow DIODE1 STARTER YL8T-14A604-A Black DIODE2 A/C YL8T-14A604-A Black 30A F-TYPE Pink Azure AUDIO Azure F.FOG Yellow Azure...
Page 127 Car Model Fuse Rating / and Fuse Rating Electric Colour Electronic Equipment Current 2.3L 3.0L Function BTN1 60A F-TYPE Yellow HEATER 60A F-TYPE Yellow HEATER 40A F-TYPE Green 60A F-TYPE Yellow COOLING FAN1 50A F-TYPE ADD FAN 50A F-TYPE HEAD LAMP-LOW ----- Black STARTER...
Page 128 1'%& %& (1, ( If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road.
Page 129 It is not recommended that the vehicle be operated in 4WD modes with a temporary spare. If 4WD operation is necessary, do not operate above speeds of 16 km/h (10 mph) or for distances above 80 km (50 miles). If you use the temporary spare tire continuously or do not follow these precautions, the tire could fail, causing you to lose control of the vehicle, possibly injuring yourself or others.
Page 130 Park on a level surface, activate hazard flashers and place gearshift lever in P (Park) (automatic transmission) or R (Reverse) (manual transmission). Set the parking brake and turn engine OFF. Block the diagonally opposite wheel. Lift the cargo cover and remove the tool bag with jack handle, lug nut wrench and long spare tire rod and spare tire from the wheel well.
Page 131 Before placing the jack under the vehicle, NOTE the jack locations: Front jacking notches are located under the front suspension arm. Rear jacking notches are located under the rear trailing arm. Position the jack according to the following guides and turn the jack handle clockwise until the tire is a maximum of 25 mm (1 inch) off the ground.
Page 132 < 5 > To lessen the risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack. The jack is only meant for changing the tire.
Page 133 To stow the full size flat tire in the cargo floor, the long spare tire rod in the tool bag needs to be installed. 11. Using the lug wrench, remove the spare tire rod from the cargo floor and install the longer spare tire rod.
Page 134 > ' > When the battery is disconnected or a new battery is installed, the transmission must relearn its adaptive strategy. As a result of this, the transmission may shift firmly. This operation is considered normal and will not effect function or durability of the transmission. Over time, the adaptive learning process will fully update transmission operation to its optimum shift feel.
Page 135 Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. Connect the negative (-) cable to the negative (-) terminal of the assisting battery.
Page 136 Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system. Do not use fuel lines, engine rocker covers or the intake manifold as grounding points. Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped.
Page 137 6 < 6 < > Remove the jumper cable from the ground metal surface. 8 In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. Remove the jumper cable on the negative (-) connection of the booster vehicle’s battery.
Page 138 Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 139 It is recommended that your vehicle be towed with a wheel lift and dollies or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If your vehicle is to be towed from the rear using wheel lift equipment, it is recommended that...
Page 140 Maximum speed is not to exceed 56 km/h (35 mph). Maximum distance is 80 km (50 miles). Ford Motor Company provides a towing manual for all authorized tow truck operators. Have your tow truck operator refer to this manual for proper hook-up and towing procedures for your...
Page 141 ,% '( $% To help you service your vehicle: We highlight do-it-yourself items in the engine compartment for easy location. We provide a scheduled maintenance guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide the necessary parts and service.
Page 142 Turn off the engine and remove the key. Block the wheels to prevent the vehicle from moving unexpectedly. 4 6 6 Automatic transmission: Set the parking brake and ensure the gearshift is securely latched in P (Park). Block the wheels to prevent the vehicle from moving unexpectedly. Do not start your engine with the air cleaner removed and do not remove it while the engine is running.
Page 143 $3,% %& (1, 1$$ Inside the vehicle, pull the hood release handle located under the bottom of the instrument panel. At the front of the vehicle, lift up on the auxiliary latch handle located in the center between the hood and the grille. Lift the hood open and secure it with the prop rod.
Page 144 ,%( 2/ %& $ 3$%,%( % (1, ,%& %, $ 3' ( ,%( > G* $1 Power steering fluid reservoir Engine coolant reservoir Transmission fluid dipstick Brake fluid reservoir Air filter assembly Power distribution box Battery Engine oil filler cap Engine oil dipstick 10.
Page 145 ,%& %, $ * Refer to the scheduled maintenance guide for the appropriate intervals for checking the engine oil. Make sure the vehicle is on level ground. Turn the engine off and wait a few minutes for the oil to drain into the oil pan. Set the parking brake and ensure the gearshift is securely latched in P (Park) (automatic transmissions) or 1 (First) (manual transmissions).
Page 146 3.0L DOHC V6 Duratec engine Wipe the indicator clean. Insert the indicator fully, then remove it again. If the oil level is 7 4 %N 'A 5 H the oil level is acceptable. %$( ' $ *> If the oil level is below the MIN mark, add enough oil to raise the level within the MIN—MAX range.
Page 147 3.0L DOHC V6 Duratec engine Oil levels above the MAX mark may cause engine damage. Some oil must be removed from the engine by a service technician. Put the indicator back in and ensure it is fully seated. Check the engine oil. For instructions, refer to Checking the engine oil in this chapter. If the engine oil level is not within the normal range, add only certified engine oil of the recommended viscosity.
Page 148 Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 149 If necessary, add brake fluid from a clean un-opened container until the level reaches MAX. Do not fill above this line. Use only brake fluids certified to meet Ford specifications. Refer to Lubricant specifications in the Capacities and specifications chapter. $( G >...
Page 150 In very cold weather, do not fill the reservoir all the way. Only use a washer fluid that meets Ford specifications. Refer to Lubricant specifications in the Capacities and specifications chapter. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive.
Page 151 Do not put washer fluid in the engine coolant reservoir. Washer fluid placed in the cooling system may harm engine and cooling system components. Washer fluid for the liftgate is supplied by the same reservoir as the windshield. 2 *(, ' %(,%'% , Refer to the scheduled maintenance guide for the appropriate intervals for changing the air filter element.
Page 152 Your Engine Cooling System is filled in the car factory with long-term engine cooling liquid. Its usage is for 11 years or 200,000 kilometres. Under normal driving conditions, there is no need to change it. If necessary, please choose the same-high-level engine cooling liquid of Ford ESE-M97B44-A.
Page 153 Automotive fluids are not interchangeable; do not use engine coolant, antifreeze or windshield washer fluid outside of its specified function and vehicle location. Please only use the special-level engine cooling liquid of Ford, PWSS-M97B44TA, or the one in accordance with the specification of Ford’s ESE-M97B44-A.
Page 154 Do not put engine coolant in the windshield washer fluid container. If sprayed on the windshield, engine coolant could make it difficult to see through the windshield. For vehicles with overflow coolant systems with a non-pressurized cap on the coolant recovery system, add coolant to the coolant recovery reservoir when the engine is cool.
Page 155 Ford specification ESE-M97B44–A. Use of such coolant may harm the engine and cooling system components. Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet available.
Page 156 If you drive in extremely hot climates: FI > %,0, FI > FI 4 > FI 4 > 4 6 6 > Vehicles driven year-round in non-extreme climates should use a 50/50 mixture of engine coolant and distilled water for optimum cooling system and engine protection. 1, - %&...
Page 157 Check the fluid level in the reservoir. It should be between the MIN and MAX lines. Do not add fluid if the level is in this range. If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the range between the MIN and MAX lines.
Page 158 Remove the dipstick, wiping it clean with a clean, dry lint free rag. If necessary, refer to Identifying components in the engine compartment in this chapter for the location of the dipstick. Install the dipstick making sure it is fully seated in the filler tube. Remove the dipstick and inspect the fluid level.
Page 159 Add enough fluid through the filler opening so that the fluid level is at the bottom of the opening. Install and tighten the fill plug securely. Use only fluid that meets Ford specifications. Refer to the Capacities and specifications chapter. '((, /...
Page 160 However, for severe usage or in high temperature climates, check the battery electrolyte level. Refer to the scheduled maintenance guide for the service interval schedules. E > > If the electrolyte level in the battery is low, you can add plain tap water to the battery, as long as you do not use hard water (water with a high mineral or alkali content).
Page 161 Battery posts, terminals and related accessories contain lead and lead compounds. > Because your vehicle’s engine is electronically controlled by a computer, some control conditions are maintained by power from the battery. When the battery is disconnected or a new battery is installed, the engine must relearn its idle and fuel trim strategy for optimum driveability and performance.
Page 162 Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. 1 ,* + 3, *' , Check the wiper blades at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.
Page 163 )> > 8 The U.S. Department of Transportation requires Ford to give you the following information about tire grades exactly as the government has written it. The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.
Page 164 The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics. The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 165 Because your vehicle’s tires perform different jobs, they often wear differently. To make sure your tires wear evenly and last longer, rotate them as indicated in the scheduled maintenance guide. If you notice that the tires wear unevenly, have them checked. Four tire rotation Five tire rotation...
Page 166 Make sure that all replacement tires are of the same size, type, load- carrying capacity and tread design (e.g., “All Terrain”, etc.), as originally offered by Ford. Do not replace your tires with “high performance” tires or larger size tires.
Page 167 Ford offers tire cables as a Ford approved accessory and recommends use of these or SAE class “S”. See your dealer or qualified service technician for more information on tire cables for your vehicle.
Page 168 If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in possible personal injury. Automotive fuels can cause serious injury or death if misused or mishandled.
Page 169 Be particularly careful if you are taking “Antabuse” or other forms of disulfiram for the treatment of alcoholism. Breathing gasoline vapors, or skin contact could cause an adverse reaction. In sensitive individuals, serious personal injury or sickness may result. If fuel is splashed on the skin, promptly wash skin thoroughly with soap and water.
Page 170 World-wide Fuel Charter should be used when available. Ask your fuel supplier about gasolines that meet the World-wide Fuel Charter. In Canada, look for fuels that display the ' logo. Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality.
Page 171 Avoid running out of fuel because this situation may have an adverse affect on powertrain components. If you have run out of fuel: You may need to cycle the ignition from OFF to ON several times after refueling, to allow the fuel system to pump the fuel from the tank to the engine.
Page 172 The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out and injure you or others. If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in possible personal injury.
Page 173 > + 6 5> For consistent results when filling the fuel tank: Turn the engine/ignition switch to the off position prior to refueling, an error in the reading will result if the engine is left running. Use the same filling rate setting (low — medium — high) each time the tank is filled. Allow no more than 2 automatic click-offs when filling.
Page 174 Give consideration to the lists that follow and you may be able to change a number of variables and improve your fuel economy. Habits Smooth, moderate operation can yield up to 10% savings in fuel. Steady speeds without stopping will usually give the best fuel economy. Idling for long periods of time (greater than one minute) may waste fuel.
Page 175 Perform all regularly scheduled maintenance items. Follow the recommended maintenance schedule and owner maintenance checks found in your vehicle scheduled maintenance guide. Heavily loading a vehicle or towing a trailer may reduce fuel economy at any speed. Carrying unnecessary weight may reduce fuel economy (approximately 0.4 km/L [1 mpg] is lost for every 180 kg [400 lb] of weight carried).
Page 176 The scheduled maintenance items listed in the scheduled maintenance guide are essential to the life and performance of your vehicle and to its emissions system. If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 177 9 = : In some localities, it may be a legal requirement to pass an I/M test of the on-board diagnostics system. If your indicator is on, refer to the description in the Warning Lights and Chimes section of the Instrumentation chapter.
Page 178 If the power system of your car or the battery is just maintained, car diagnosis system will reset itself to “Unprepared I/M Inspection.” If you would like car diagnosis system offer I/M inspection, you have to drive at least in the downtown and the highway as follows: First, drive on the highway for at least 10 minutes Next, drive in the downtown in the stop-and-go, go-and-stop conditions for at least 20 minutes.
Page 179 Press the interior electric hook. Then take the plug out of the bulb. Turn off the bulbs of near / far light in an anticlockwise direction; then put on the new ones. Low beam bulb ( Xenon bulb) Do not replace xenon low beam bulb yourself. Consult your dealer or a qualified technician.
Page 180 It is very dangerous to replace a xenon bulb yourself as there is a possibility of high voltage electric shock. So don’t do it. Consult a Ford authorized dealer. 6 6 7 7H ! 6 7 7 >...
Page 181 In an anticlockwise direction, turn the bulb holder. Directly pull out the bulb from the holder and insert a new one. Please put back the light set in the reverse steps of the above-mentioned. The ear light of the car model, 3.0L, is the LED Model.
Page 182 Handle a halogen headlamp buld carefully and keep out of children’s reach. Grasp the bulb only by its metal base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Page 183 For bulb replacement, see a dealer or qualified technician. Check the operation of the following interior bulbs frequently: interior overhead lamp map lamp For bulb replacement, see a dealer or qualified technician. %& (1, &1( Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.”...
Page 184 0, ( '* ' ' L) ( ,%( Park the vehicle on a level surface approximately 7.6 meters (25 feet) from a vertical wall or screen directly in front of it. (A) Eight feet (B) Center height of lamp to ground (C) Twenty five feet (D) Horizontal reference line Measure the height from the center of your headlamp to the ground and mark a 2.4 meter...
Page 185 Close the hood and turn off the lamps. *,'% %& '% %& 2$ Refer to the Customer Assistance chapter for a list of Ford-approved cleaners, polishes and waxes. Wash your vehicle regularly with cold or lukewarm water. Never use strong detergents or soap.
Page 186 Minor scratches or paint damage from road debris may be repaired with the Ultra Touch Prep and Finishing Kit (#F7AZ-19K507–BA), Lacquer Touch-up Paint (#ALBZ-19500–XXXXA), or Exterior Acrylic Spray Lacquer (#ALAZ-19500–XXXXA) from the Ford Car Care Chemicals line. Please note that the part numbers (shown as XXXX above) will vary with your vehicle’s specific coloring.
Page 187 Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: Take care when using a power washer to clean the engine. The high pressure fluid could penetrate the sealed parts and cause damage. Do not spray with cold water to avoid cracking the engine block or other engine components.
Page 188 Clean the outside of the windshield or rear window with a non-abrasive cleaner such as Ford Ultra-Clear Spray Glass Cleaner, (GLASS-FC01–AA), available from your Ford Dealer. use abrasive cleansers on glass as they may cause scratches. The windshield or rear window is clean if beads do not form when you rinse it with water.
Page 189 ; !! Remove dust and loose dirt with a whisk broom or a vacuum cleaner. Remove fresh spots immediately. Follow the directions that come with the cleaner. Do not saturate the seat cover with upholstery cleaner. Do not use chemical solvents or strong detergents when cleaning the seat mounted side air bag.
Page 190 Clean the safety belts with a mild soap solution recommended for cleaning upholstery or carpets. Do not bleach or dye the belts, because these actions may weaken the belt webbing. Check the safety belt system periodically to make sure there are no nicks, tears or cuts. If your vehicle has been involved in an accident, refer to the Safety belt maintenance section in the Seating and safety restraints chapter.
Page 191 '2( 3' ( %) > G* $1 G> F* $1 Air filter element FA-1630 FA-1683 Fuel filter FG-800-A FG-800-A Battery 55D 23L 80D 26L Oil filter FL-2005 FL-820-S PCV valve EV-224 EV-243 Spark plugs* 2 AZFS-32FE 3 AGSF-32W Failure to use the correct air filter element may result in severe engine damage. The customer warranty may be voided for any damage to the engine if the correct air filter element is not used.
Page 192 Oil Tank Capacity 2.3L DOHC 14 Engine 61 litre 3.0L V6 DURATEC Engine Power Steering Oil MOTORCRAFT Add up to the MERCON ATF All kinds of cars graduator in the oil tank Transmission box Oil MOTORCRAFT 5M51 Automatic 2.3 DOHC 8.0 litre 3F823 AA 14 Engine...
Page 193 Please use Ford’s top engine cooling liquid (green). Please do not use long-term engine cooling liquid (orange). Please read the reference of “Add engine cooling liquid” in the section of “Maintenance.”...
Page 194 DOT3 or DOT4 brake DOT3 All-suitable Plug Top Long-term XG-1-C OR ESA-M1C75-B (All-Wheel Drive) Lubricating Oil XG-1-T OR XG-1-K Engine Cooling Ford’s top engine PWSS-M97B44-TA ESE-M97B44-A Liquid cooling liquid Engine Oil MOTORCRAFT ESE-M2C153-AAZ WSS-M2C153-G 5W-30 or 5W-50 with API Identification...
Page 195 Cylinder Compression Ratio 9.7:1 10.0:1 DO NOT USE Ford Extended Life Engine Coolant F6AZ-19544-AA, meeting Ford specification WSS-M97B44-D (orange in color). Refer to Adding engine coolant, in the Maintenance and Care chapter. Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick or on the dipstick handle.
Page 196 (1) Whole Length 4480 (2) Whole Width 1845 (3) Car Height * 1710/1735 (4) Axle Gap 2620 (5) Front-Wheel Gap / Back-Wheel Gap 1550/1530 Note Car Height: * equipped with 215/70 R16 equipped with 225/70 R15 or 315/70 R16 Wheels and a Luggage Holder on the Top of the Car *** equipped with 225/70 R16 Wheels and a Luggage Holder on the Top of the...
Page 197 The number is located in the engine compartment. It is additionally stamped onto a tag on the left-hand side of the instrument panel. The identification number on the instrument panel can be read through the front screen from outside the vehicle. Vehicle Identification Number...
Page 198 " Air bag supplement restraint system ..78 Emergencies, roadside jump starting . . 133 Air bag indicator light ....9 Engine ......153 Air cleaner filter .
Page 199 " Jack ......130 Safety belts / Seat belts ... . . 66 Jump starting your vehicle .

Ford Escape 2006 Manual

Quick Links

Related Manuals for Ford Escape 2006

Summary of Contents for Ford Escape 2006
