INSTRUCTIONS-PARTS LIST
Dyna-Star
HYDRAULIC RECIPROCATOR & PUMP
1500 psi (105 bar) MAXIMUM HYDRAULIC INPUT PRESSURE
375 psi (26 bar MAXIMUM FLUID OUTLET PRESSURE
1/4:1 RATIO UNIVERSAL PUMP & RECIPROCATOR
Model 236-753, Series A, Stubby Length
RECIPROCATOR
ONLY
Model 236-751, Series A
WARNING
The pump is designed to dispense lube products
only. Any other fluids can cause unsafe operating
conditions and result in component rupture, fire or
explosion which could cause serious injury, includ-
ing fluid injection.
Patent No. 4,383,475
Foreign Patents Pending
Patent 1984 Canada
Brevete 1984

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
. . . . . . . . . . . . . . . . . . . . .
. . . . . .
COPYRIGHT 1994, GRACO INC.
2
3
4
4
6
9
10
12
17
19
20
22
23
. .
23
24
24
308-390

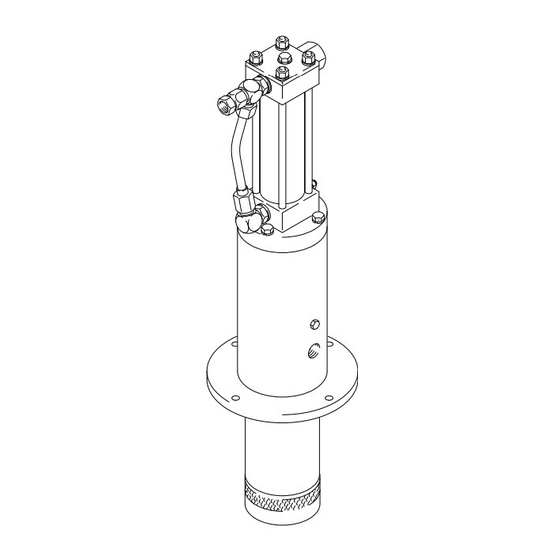

Model 236-753 shown
Rev. A
