INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Dyna-Star
HYDRAULIC RECIPROCATOR AND PUMP
1500 psi (10 MPa, 102 bar) Maximum Hydraulic Input Pressure
375 psi (2.6 MPa, 26 bar) Maximum Fluid Outlet Pressure
FOR LUBRICATING FLUIDS ONLY
1/4:1 RATIO UNIVERSAL PUMP AND RECIPROCATOR
Model 236-753, Series C, stubby length
RECIPROCATOR ONLY
Model 239-884, Series A
WARNING
The pump is designed to dispense lube products
only. Any other fluids can cause unsafe operating
conditions and result in component rupture, fire or
explosion which could cause serious injury, includ-
ing fluid injection.
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List & Drawing
Universal 1/4:1 Ratio Displacement Pump
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensional Drawing and Mounting Hole Layout
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
. . . . . . . . . . . . . . . . . . . . .
. . . . . .
. .
http://www.graco.com
COPYRIGHT 1994, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.
2
5
8
10
11
14
18
Patent No. 4,383,475
Foreign Patents Pending
19
Patent 1984 Canada
20
Brevete 1984
23
23
24
24
308-390
Rev. D
Supersedes Rev. C

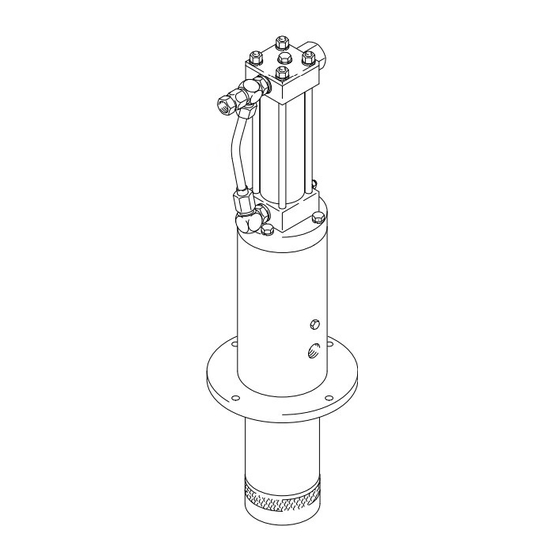

Model 236-753 shown
