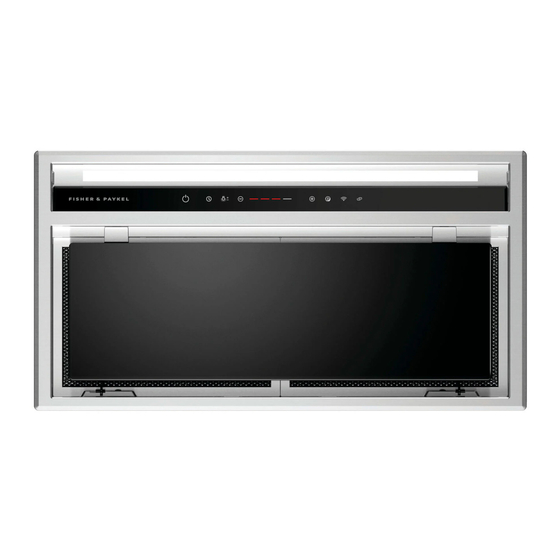

- Page 1 INSERT RANGE HOOD CONTEMPORARY HP24IDCHX4, HP30IDCHX4, HP36IDCHX4 models INSTALLATION GUIDE US CA...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Fire Hazard Failure to follow this advice may result in Failure to follow this advice may result in electric shock or death. serious burns or death. • Installation and electrical wiring must be •... - Page 3 SAFETY AND WARNINGS There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. The minimum distance between the supporting surface for cooking vessels on the cooktop and the lowest part of the range hood shall be 24”...
-
Page 4: Components Required
COMPONENTS REQUIRED PARTS TOOLS Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... - Page 5 PRODUCT DIMENSIONS | HP24IDCHX4 Product Dimensions A Overall height of range hood without ducting adapter 12 7/16" B Overall height of range hood with ducting adapter 15 11/16" C Overall width of range hood 20 7/8" D Overall depth of range hood (excl. cabinetry front panel) 11"...
- Page 6 PRODUCT DIMENSIONS | HP30IDCHX4 Product Dimensions A Overall height of range hood without ducting adapter 12 7/16" B Overall height of range hood with ducting adapter 15 7/16" C Overall width of range hood 28 3/4" D Overall depth of range hood (excl. cabinetry front panel) 11"...
- Page 7 PRODUCT DIMENSIONS | HP36IDCHX4 Product Dimensions A Overall height of range hood without ducting adapter 12 7/16" B Overall height of range hood with ducting adapter 15 11/16" C Overall width of range hood 32 11/16" D Overall depth of range hood (excl. cabinetry front panel) 11"...
-
Page 8: Cutout Dimensions
CUTOUT DIMENSIONS 24" MODELS 30" MODELS 36" MODELS HP24 MODELS HP30 MODELS HP36 MODELS CUTOUT DIMENSIONS CUTOUT DIMENSIONS CUTOUT DIMENSIONS INCHES INCHES INCHES A Overall width of the cutout 19 11/16 A Overall width of the cutout 27 9/16 A Overall width of the cutout 31 1/2 B Overall depth of the cutout 10 1/4... -
Page 9: Installation Height
INSTALLATION HEIGHT Induction cooktop considerations Induction cooktops use energy efficient technology that only heats the contents of a cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get heated when using an induction cooktop. As a result, range hood filters, splashbacks and surrounding cabinetry do not get warmed up, increasing the likelihood of condensation on these cooler surfaces. -
Page 10: Venting Requirements
Before connecting the range hood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location: Ensure the cavity is set up to the correct specifications. Refer to ‘cutout MODEL FREQUENCY VOLTAGE dimensions’ for details. HP24IDCHX4, HP30IDCHX4, 60HZ 120V HP36IDCHX4... - Page 11 INSTALL PREPARATION / CONSIDERATIONS UNPACK PRODUCT Open carton and remove all packaging. Ensure the top of the range hood remains Carefully lift the products out of the accessible via the cavity throughout the cartons. installation. Place on a protected surface. Refer to cooktop specifications to ensure Dispose of packaging responsibly.
- Page 12 PREPARE CABINETRY RECIRCULATION INSTALLATION Ensure the cabinetry can support the weight of the range hood and ducting. Not relevant for externally vented options. Venting directly into the cabinet with no ducting and louvered vent is not permitted. NON PRECUT CABINETRY Note: Placement of the louvered vent on the top of your cabinetry is not recommended.
- Page 13 INSTALL DUCTING RIGID DUCTING Not relevant for recirculation installation. Vent representative in the following rigid ducting steps. Cut ducting to length. Ensure the ducting is the correct length and size for your range hood and that all required bends are present. Do not reduce the duct diameter as this will increase noise.
-
Page 14: Prepare Hood
INSTALL DUCTING PREPARE HOOD RIGID DUCTING Fit the duct adapter to the range hood using two supplied Phillips screws. Fit ducting to the external vent and secure. Ensure that there is an air gap between the mounting brackets and the hood chassis. -
Page 15: Install Hood
INSTALL HOOD Lift range hood into cavity until all four mounting brackets clip in. Check brackets have safely engaged on the Refit perimeter plate and secure using cabinetry before releasing range hood. the screws removed in step 3. Ensure power cable remains free and unobstructed during this process. -
Page 16: Connect Power
SECURE DUCTING CONNECT POWER Attach ducting to adapter. Remove the junction box cover by Secure using tape, cable ties or metal unscrewing both screws as shown. straps as required. Remove the electrical knock-out. Install Recirculation only: a UL listed 1/2” (12.7mm) wiring conduit and strain relief in the junction box. -
Page 17: Installer Checklist
AFTER POWER CONNECTION INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER … All packaging has been removed. Remove film from all surfaces of the … Range hood is correctly installed. range hood. … All connections are secure. … The ducting is not bent or crushed in any areas . …... - Page 18 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2024. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
